Kidde Fire Systems ECS User Manual

Component Description
06-236115-001 3-11 October 2014
3-3.3 Cylinder Mounting Equipment
Steel straps and brackets are used to mount the cylinders in a vertical position.
Cylinder straps (P/N WK-283945-000, WK-283934-000, 06-235317-001, WK-292971-000,
WK-281866-000, WK-294651-000, and 06-236125-001) are available for all size cylinders
(see Figure 3-11 and Table 3-6 and Table 3-7).

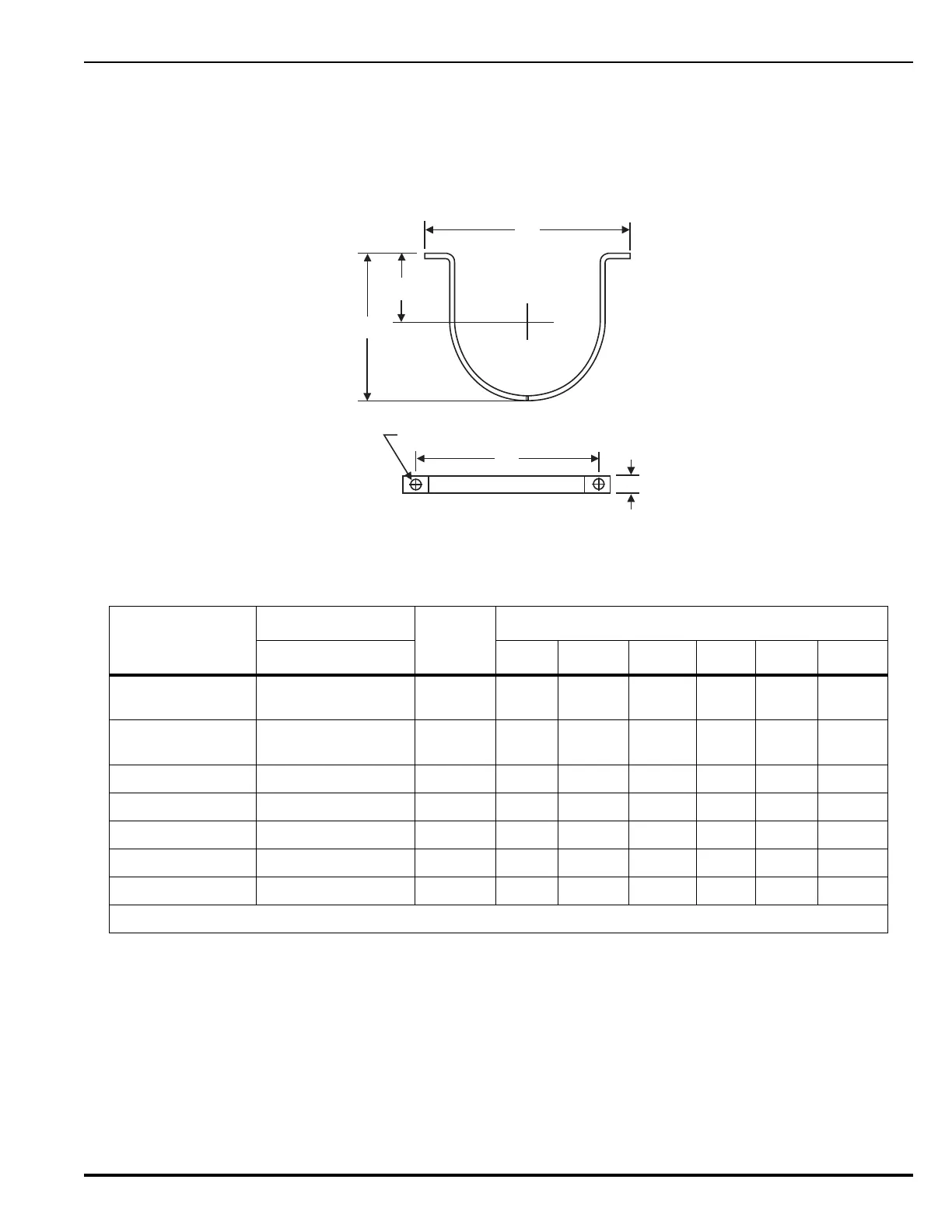

Figure 3-11. Cylinder Mounting Straps
Table 3-6. Dimensions–Cylinder Mounting Straps
Part Number
Cylinder Size
Cylinder
O.D.
Dimensions*
lb A B C D E F
WK-283945-000 10
20
7.07 6.48 9.62 8.62 1.00 2.78 0.437
WK-283934-000 40
70
9.00 8.16 11.69 10.69 1.00 3.50 0.437
06-235317-001 125, 200 new style 12.75 12.175 16.18 14.56 1.75 5.59 0.625
WK-292971-000 200 old style 13.6 13.09 17.06 15.44 1.75 6.06 0.625
WK-281866-000 350 16.00 15.50 19.50 17.88 1.75 7.25 0.625
WK-294651-000 600 22.00 21.56 25.75 24.12 1.75 10.25 0.625
06-236125-001 900 24.00 23.75 27.75 26.00 1.75 12.13 0.625
*Note: Dimensions are in millimeters.
B
E
A
F (hole size)
C
D
