Component Description
06-236115-001 3-23 October 2014
3-3.6.2 Flexible Actuation Hose, P/N WK-264986-000 and P/N WK-264987-000
The Flexible Actuation Hose is used in multiple cylinder systems. Pilot pressure is directed to a
pressure operated control head on each HFC-227ea cylinder valve using a 1/4-inch actuation
hose (see Figure 3-23 and Table 3-12).

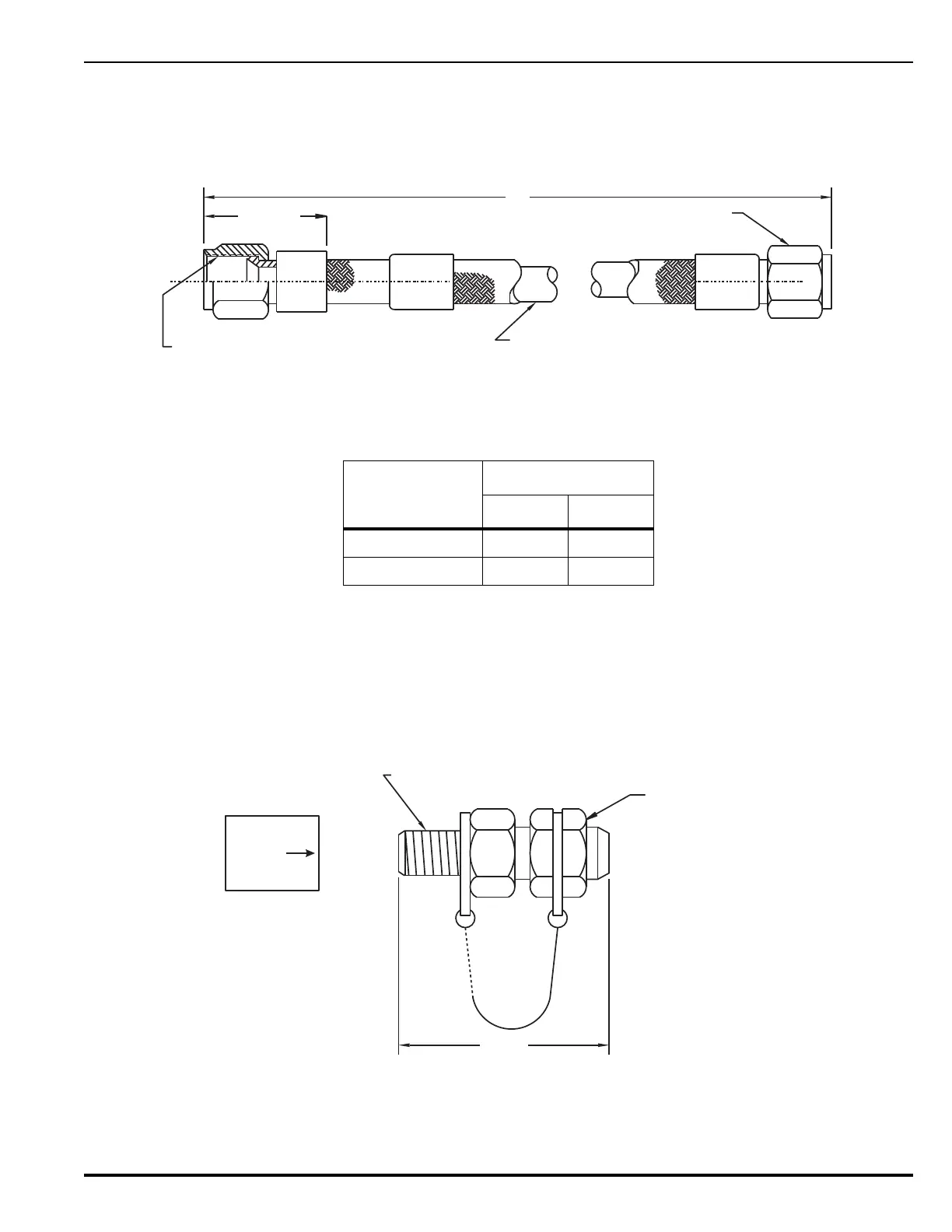

Figure 3-23. Flexible Actuation Hose
3-3.6.3 Master Cylinder Adapter Kit, P/N 82-844895-000
The Master Cylinder Adapter Kit provides a means of connecting a flexible actuation hose to
the master and slave cylinder/valve assemblies. The adapter kit is provided with a cap
intentionally chained to the adapter to prevent loss while in service; do not remove the cap
from the chain. The kit also contains a pressure sensitive label which is placed on the cylinder
valve after adapter installation (see Figure 3-24).
Figure 3-24. Master Cylinder Adapter Kit
Table 3-12. Dimensions, Flexible Actuation Hose
Part Number
Dimension A
in. mm
WK-264986-000 30 762
WK-264987-000 22 558
1.375 in.
(34.925 mm)
5/16 in. TUBING COUPLING
(BOTH ENDS)
A
HOSE - 1/4 in. I.D.
.625 in. HEX SWIVEL
NUT (BRASS)
1.42 in.
(36.06 mm)
1/4 in. MALE NPT X 5/16 in. TUBING
PROTECTION CAP
CAUTION
INSTALL CAP
WHEN
NOT IN
USE
LABEL
