Kidde Fire Systems ECS User Manual

Component Description
October 2014 3-12 06-236115-001
Wall brackets (P/N 82-486485-000, 82-486486-000, 82-486487-000, and 82-486488-000)
are available for the 10, 20, 40 and 70 lb size cylinders (see Figure 3-12 and Table 3-8 and
Table 3-9).

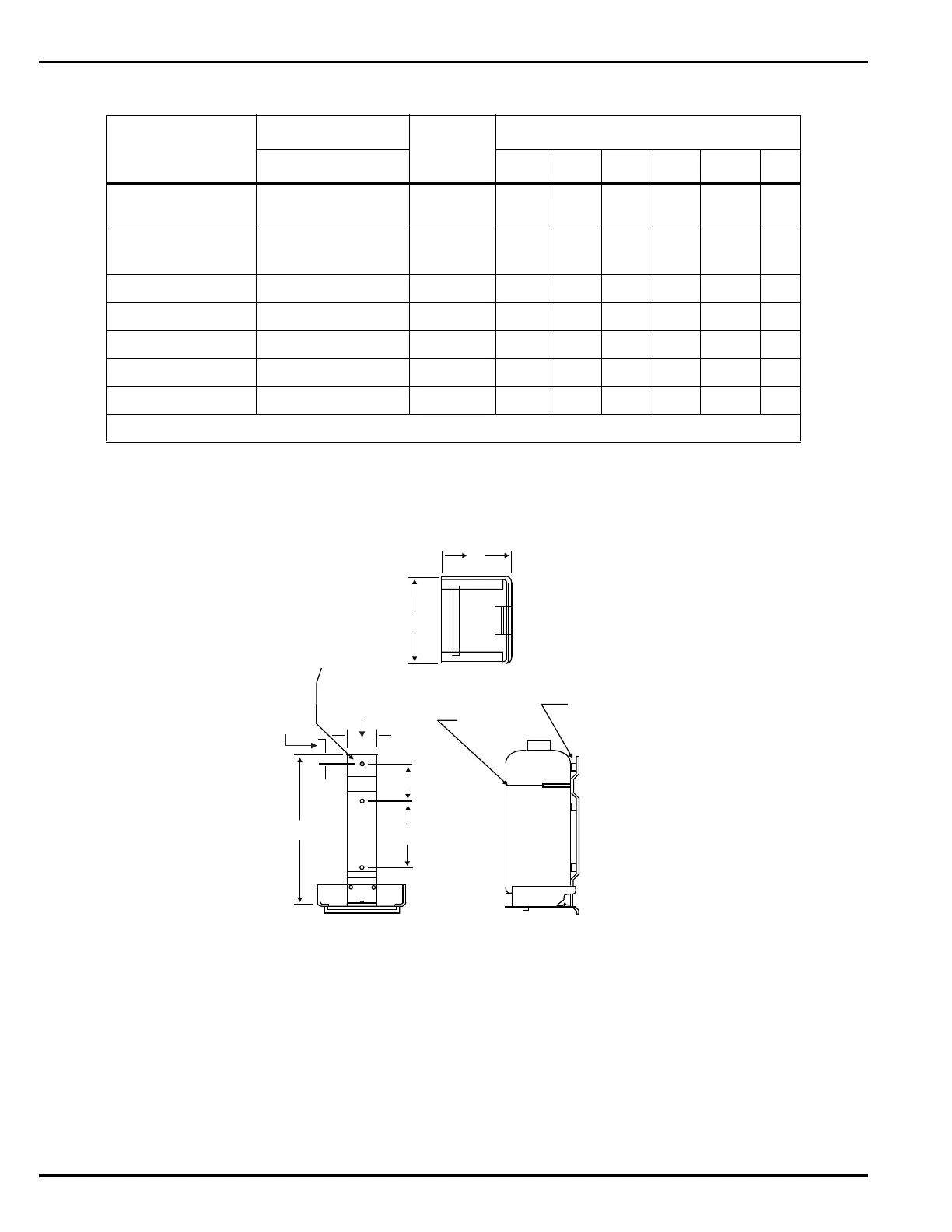

Figure 3-12. Cylinder Wall Brackets
Table 3-7. Dimensions–Cylinder Mounting Straps, Metric
Part Number
Cylinder Size
Cylinder
O.D.
Dimensions*
lb A B C D E F
WK-283945-000 10
20
180 165 244 219 25 71 11
WK-283934-000 40
70
229 207 297 272 25 89 11
06-235317-001 125, 200 new style 324 309 411 370 44 142 16
WK-292971-000 200 old style 345 332 433 392 44 154 16
WK-281866-000 350 406 394 495 454 44 184 16
WK-294651-000 600 559 548 654 613 44 260 16
06-236125-001 900 610 603 705 660 44 308 16
*Note: Dimensions are in inches.
B
A
3.00”(76.2 mm)
3.00”
(76.2 mm)
.62”
(15.75mm)
.406” DIA. THRU
(3) MTG HOLES
(TYP)
FLEXIBLE
STRAP
3/8” FASTENING
HARDWARE (TO
WALL)
D
C
