Kidde Fire Systems ECS User Manual

Component Description
06-236115-001 3-29 October 2014
3-3.7.8 Corner Pulleys, P/N 81-803808-000 and P/N WK-844648-000
Corner Pulleys change the direction of cable lines without binding to ensure smooth operation.
P/N 81-803808-000 is used for all watertight applications; P/N WK-844648-000 is used for all
industrial applications (see Figure 3-33 and Figure 3-34).

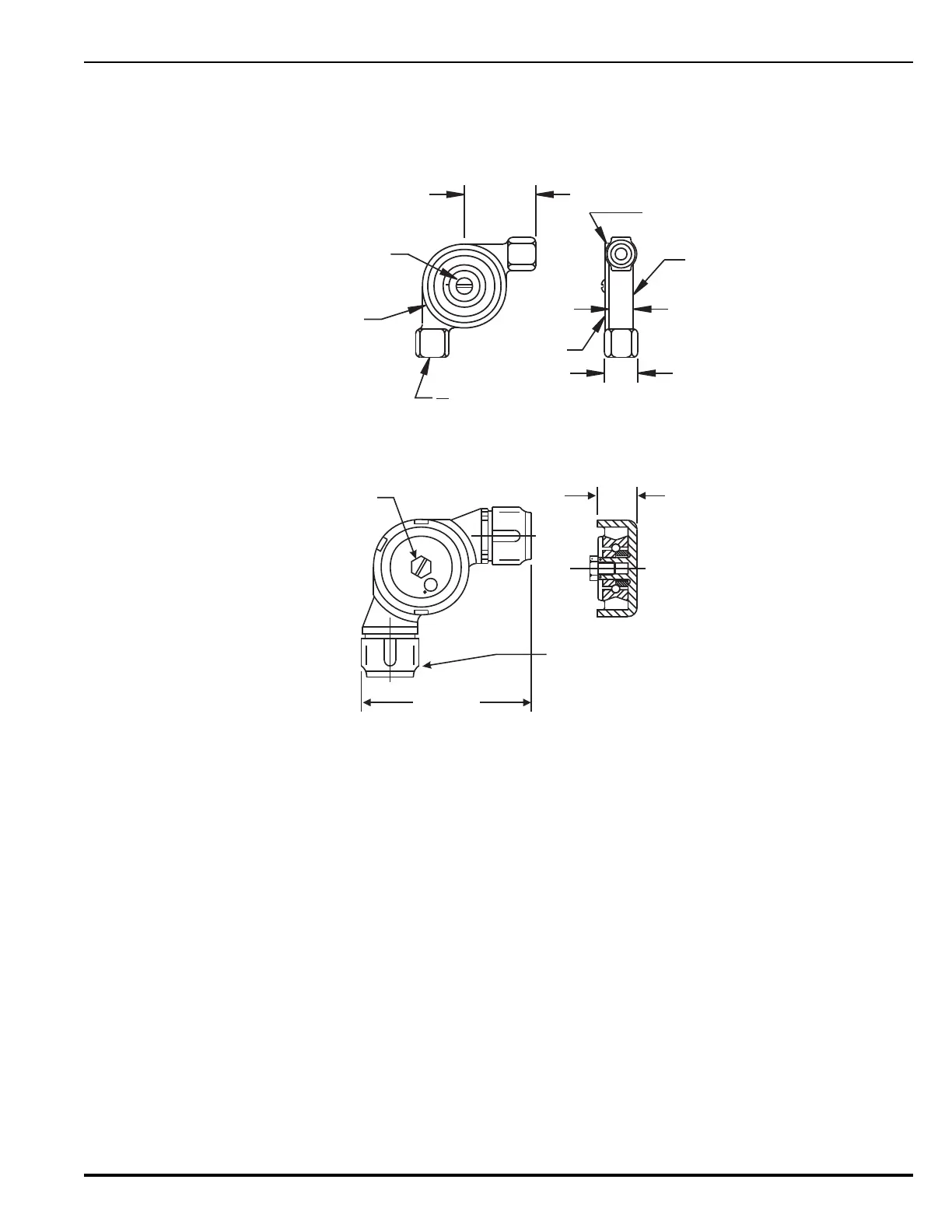

Figure 3-33. Corner Pulleys, Watertight Applications
Figure 3-34. 1/2-Inch E.M.T. Corner Pulley, General Applications
GASKET
BODY
COVER
0.62"
(16 mm)
0.81"
(21 mm)
1.75"
(45 mm)
COVER SCREW
2.13" (54 mm) DIA
-18 NPS FEMALE
3"
8
U
L
COVER SCREW
½ in. E.M.T. CONNECTIONS
COMPRESSION TYPE
(QTY. 2)
0.62 in.
(16 mm)
2.75 in.
(70 mm)
approx.
