3-3.4.3 Cable Operated Control Head, P/N 81-979469-000
The Cable Operated Control Head is used for systems designed for manual operation only. It
mounts directly on top of the HFC-227ea cylinder valve and is operated either remotely from
a cable manual pull station or locally using the manual lever on the control head (see
Figure 3-16).

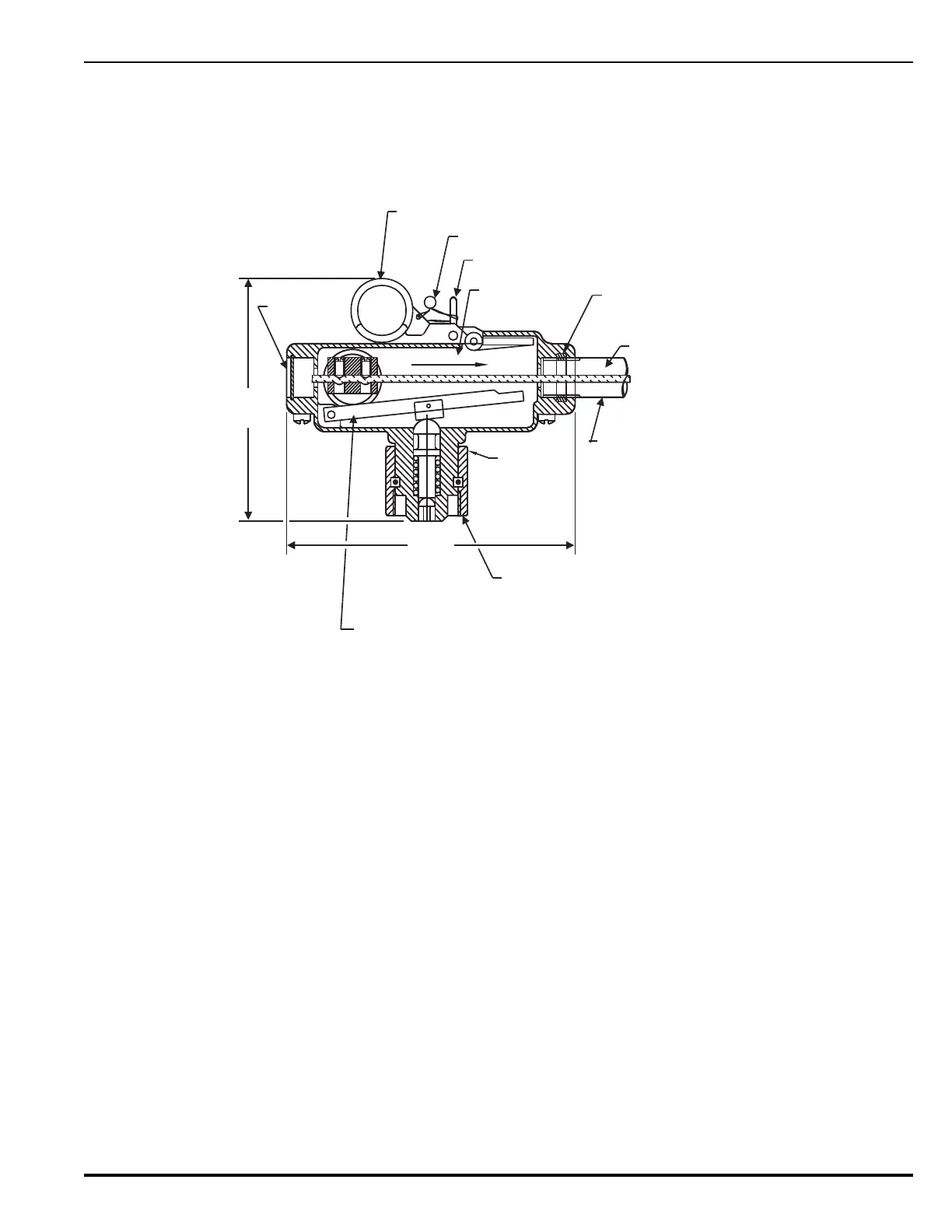

Figure 3-16. Cable Operated Control Head
LOCAL MANUAL RELEASE LEVER
SEAL WIRE
LOCKING PIN
DIRECTION OF
PULL
THREADED NUT -
3/8 in. NPS FOR PIPE
1/16 in. CABLE
3/8 in. PIPE (OR ½ in. EMT
WITH ADAPTER P/N
843837)
SWIVEL
NUT
1.50 in.
(38mm)
1-1/4 in.-18 NF-3
FEMALE
CLOSURE
DISC
CABLE CLAMP AND WHEEL ASSEMBLY
4.25 in.
5.25 in.
(108mm)
(133mm)
