3-3.8 Other Accessories
3-3.8.1 Hydrostatic Test Adapters
The hydrostatic pressure test adapter is installed on the HFC-227ea cylinder in place of the
cylinder valve when the cylinder is to be hydrostatically pressure tested. For cylinder test
requirements, see Paragraph 5-5.3 of this manual.
3-3.8.2 HFC-227ea Cylinder Recharge Adapters
The HFC-227ea recharge adapter is installed in the cylinder discharge outlet during the cylinder
charging procedure. This adapter is used for refilling the cylinder with HFC-227ea agent and
super pressurizing the cylinder with nitrogen (see Figure 3-40 and Table 3-19).
Note: The 3
in valve and associated cylinders (new style 600 lb and 900 lb) do not require a
recharge adaptor. Recharge of these cylinders is achieved via the 1/2
in NPT connection
on the grooved fitting plate on the outlet port.

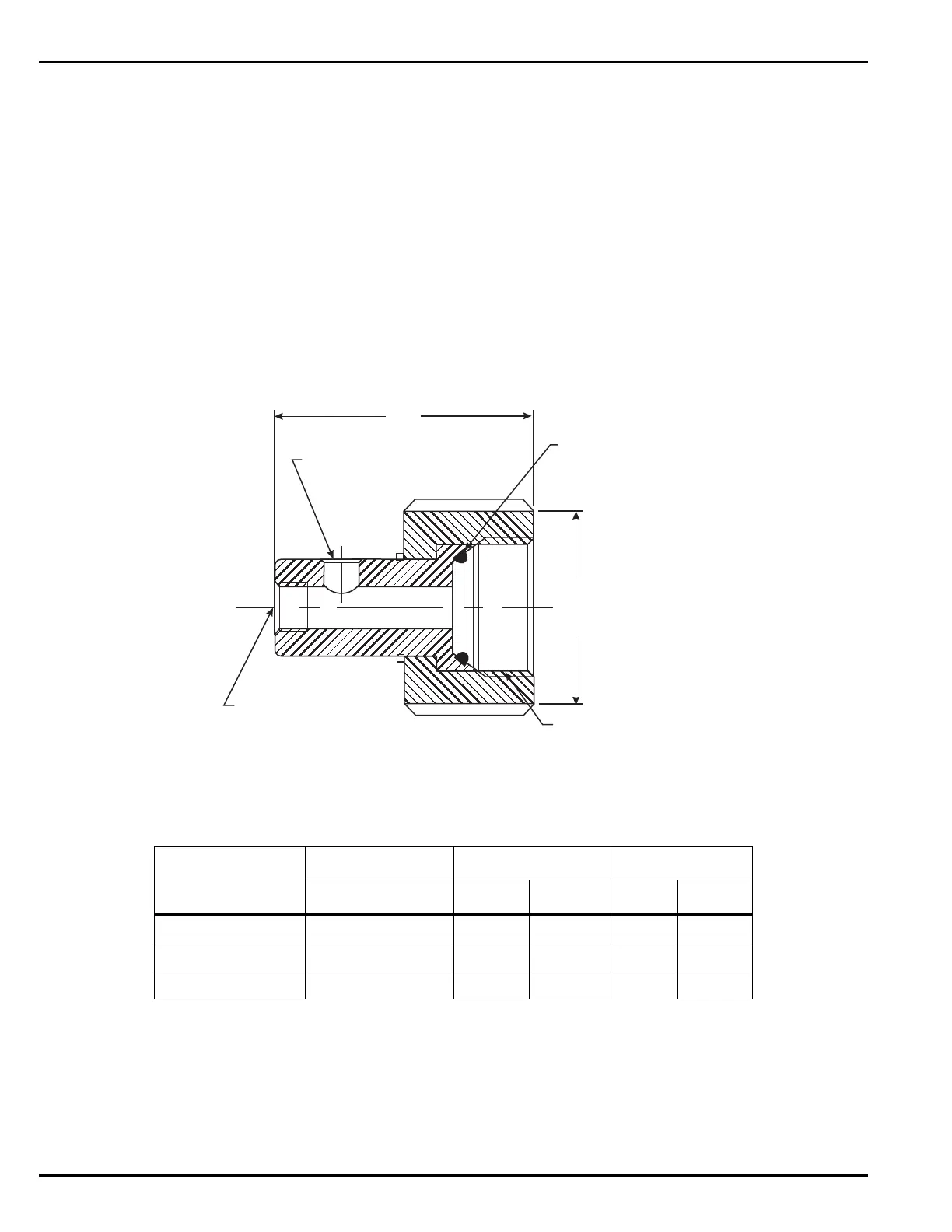

Figure 3-40. Cylinder Recharge Adapters
Table 3-19. Dimensions–Cylinder Recharge Adapters
Part Number
Cylinder Size A B
lb in. mm in. mm
82-878757-000 10-125 3.22 81.79 2.50 63.50
82-878758-000 200, 350 4.06 103.12 3.25 82.55
82-878759-000 600 4.00 101.60 3.62 91.95
3/8 in. - NPT
(VENT VALVE CONNECTION)
CYLINDER VALVE
OUTLET CONNECTION
O-RING SEAL
3/8 in. - 18 NPT
(CHARGE CONNECTION)
B
(HEX)
A
