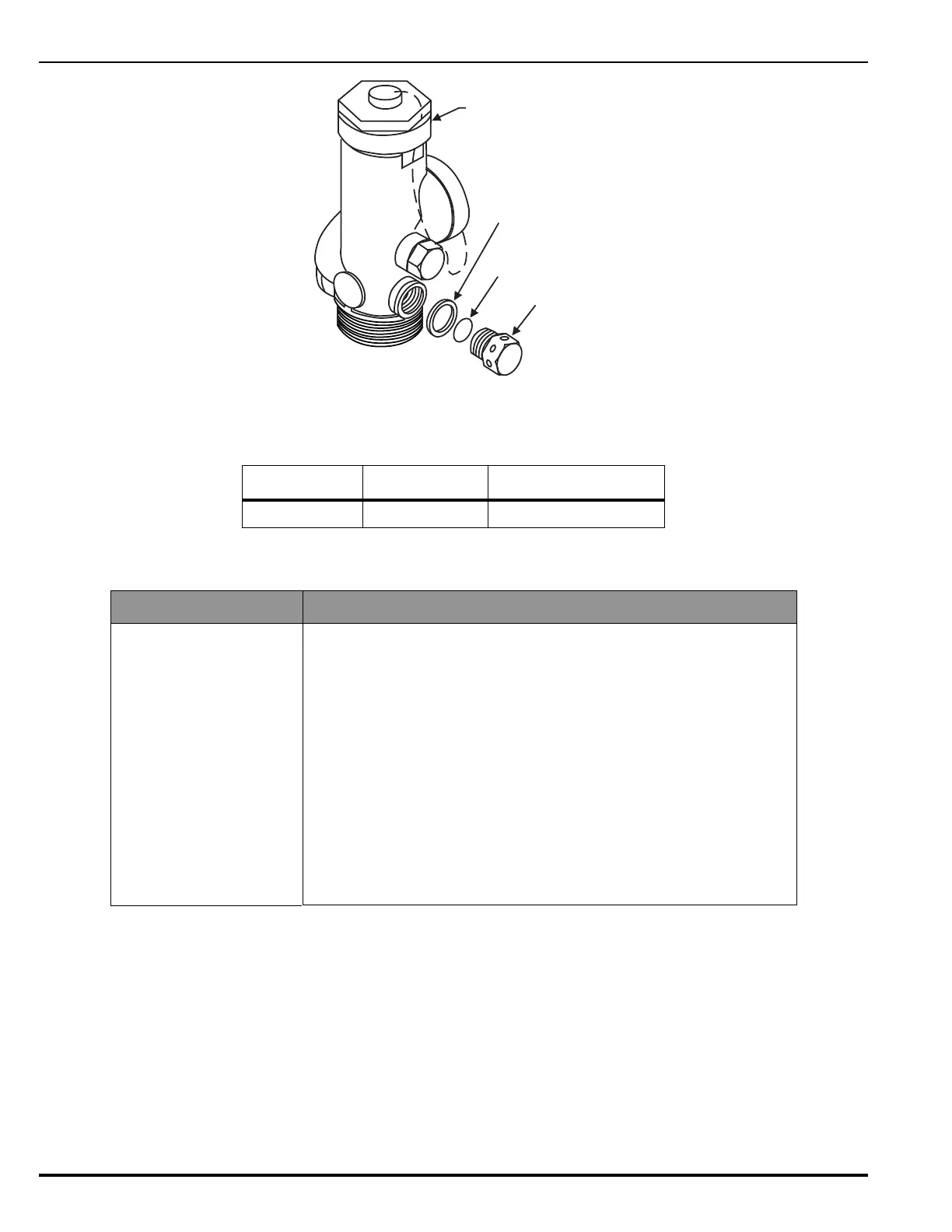

Figure 3. Installation of Safety Burst Disc on Valve (Valves Manufactured before May 2014)
4PARTS LIST
Table 5. Safety Disc Replacement Information
Valve Size Torque Valve psig @ 70°F
2 in 38 ft lb 800-975
Part Number Description
85-150100-000 2" Valve and Safety Burst Disc Rebuild Kit includes:
• Assembly, Piston, which includes:
–Piston
–Piston O-ring
– Teflon Back-up O-ring
–Seat O-ring
•O-ring, Neck
•O-ring, Cap
• Disc - Safety, 2.0" Valve
•Washer - Safety
•Retainer - Safety Disc
VALVE
SAFETY
DISC
SAFETY
DISC
WASHER
SAFETY
DISC
RETAINER
To Next Page
