Component Description
October 2014 3-18 06-236115-001
3-3.4.4 Lever Operated Control Head, P/N WK-870652-000
The Lever Operated Control Head is equipped with an operating lever, secured in the closed
position by a safety pull pin. By removing the safety pin, the lever can be manually rotated to
the open position, thereby activating the cylinder or valve on which it is installed (see
Figure 3-17).

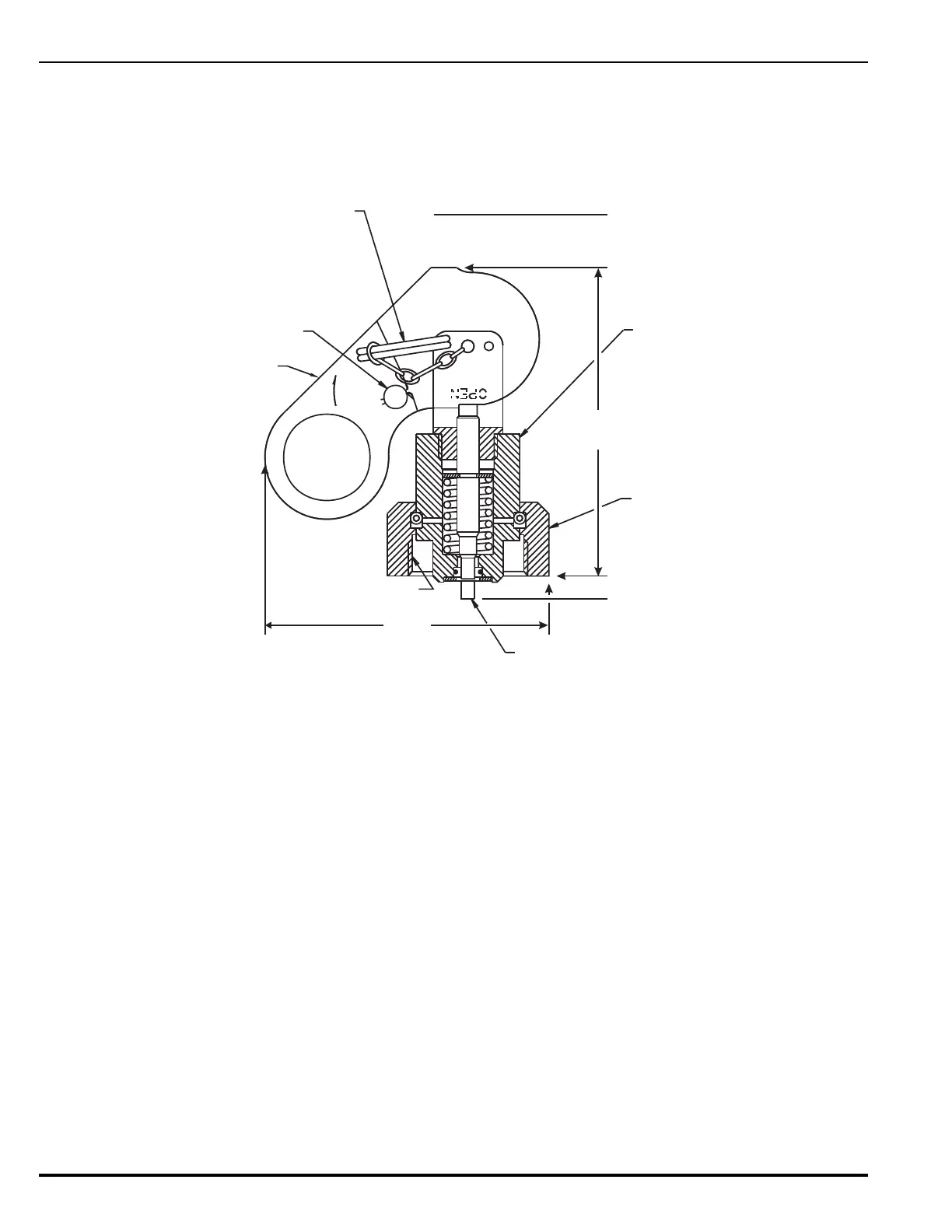

Figure 3-17. Lever Operated Control Head
CLOSED
OPENTO
LOCKING PIN
SEAL WIRE
LEVER
BODY
SWIVEL
NUT
1.50 in.
(38 mm)
1-1/4 in.-18 NF-3
FEMALE
3.17 in.
3.00 in.
(81 mm)
(76 mm)
ALLOW APPROX. 2 in. (50 mm)
CLEARANCE FOR
OPERATION OF LEVER
SET
OPERATED
STEM
