3.4 Installation of Stackable Pressure Operated Control Heads (P/N 82-
878750-000)
Follow all instructions contained in the main body of the DIOM up to this section.
Note: The Spacer (P/N: 85-100000-002) is only needed when installing an electric control
head (P/N WK-890181-000, 81-895630-000, and 81-895630-000) onto a stackable
pressure operated control head. The order of installation must be followed as outlined
below.
1. Remove the protection cap from the cylinder actuation port.

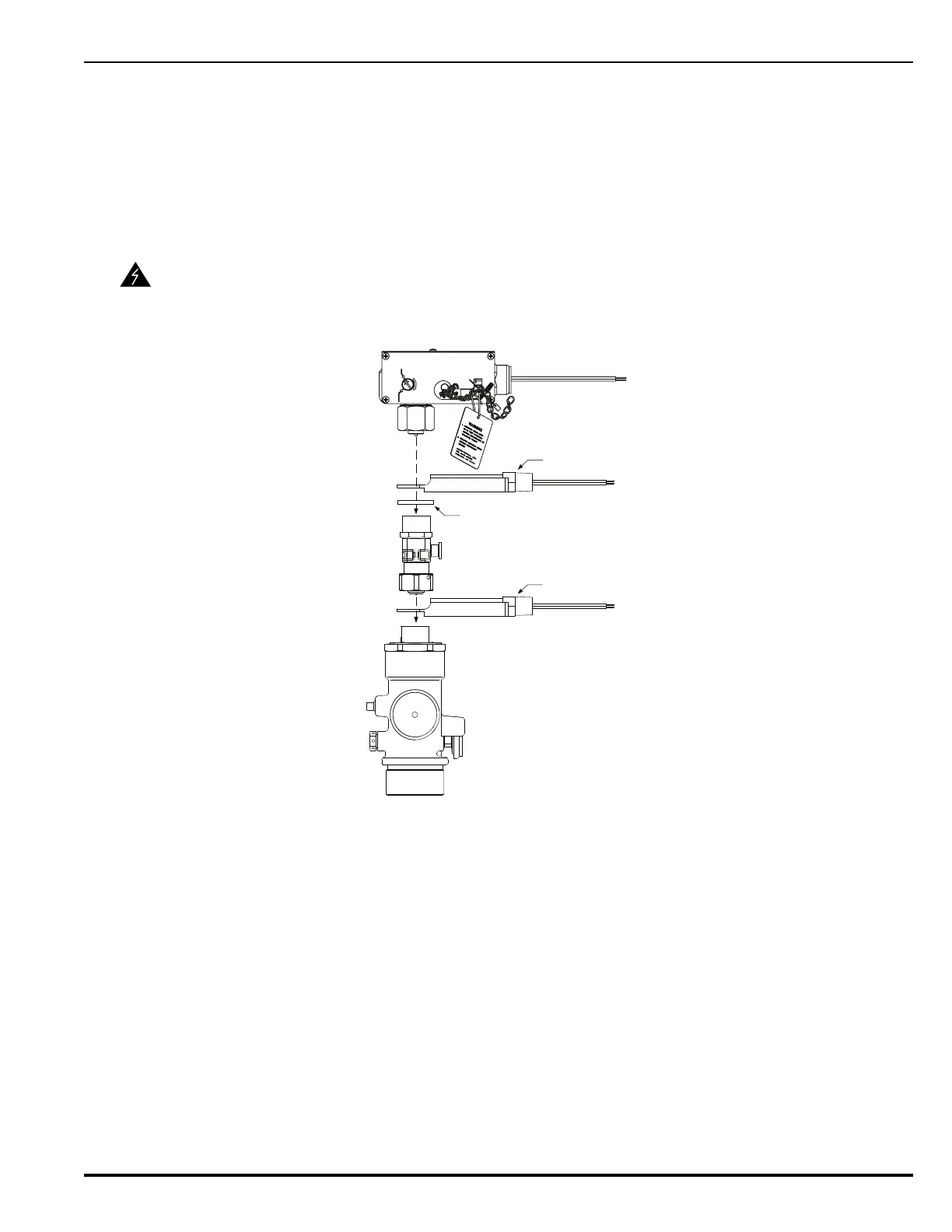

Figure 7. Pressure Operated Control Head Order of Assembly
2. Install a pressure operated control head with flexible actuation hose attached to the cylin-
der actuation port.
3. Insert the spacer (P/N 85-100000-002) on to top of the stackable pressure operated con-
trol head.
4. Insert the Control Head Monitor between the electric control head and the spacer as shown
in Figure 7.
WARNING
When attaching the pressure-operated control head to the valve, the swivel nut
must be tightened to a torque of 55 ft-lb. Failure to tighten the swivel nut as
directed may result in leakage during actuation.
Require Control Head Monitor
(P/N 85-100000-100)
Oponal Control Head Monitor
(P/N 85-100000-100)
Require Spacer (P/N 85-100000-002)
