Kidde Fire Systems ECS User Manual

Component Description
October 2014 3-28 06-236115-001
3-3.7.6 Pressure Operated Trip, P/N 81-874290-000
Pressure Operated Trips are used to close off the hazard space upon system discharge. The
trips, operated by system pressure, are designed to release self-closing units for doors,
windows and dampers. The maximum load to be attached to a pressure trip is 100 lb (45.36
kg). This is based on a minimum pressure of 75 PSIG (5.17 bar gauge) at the pressure trip.
3-3.7.7 Discharge Indicator, P/N 81-875553-000
The Discharge Indicator may be installed in the discharge piping to visually indicate a system
discharge. When in the SET position, the discharge indicator acts as a vent (see Figure 3-32).

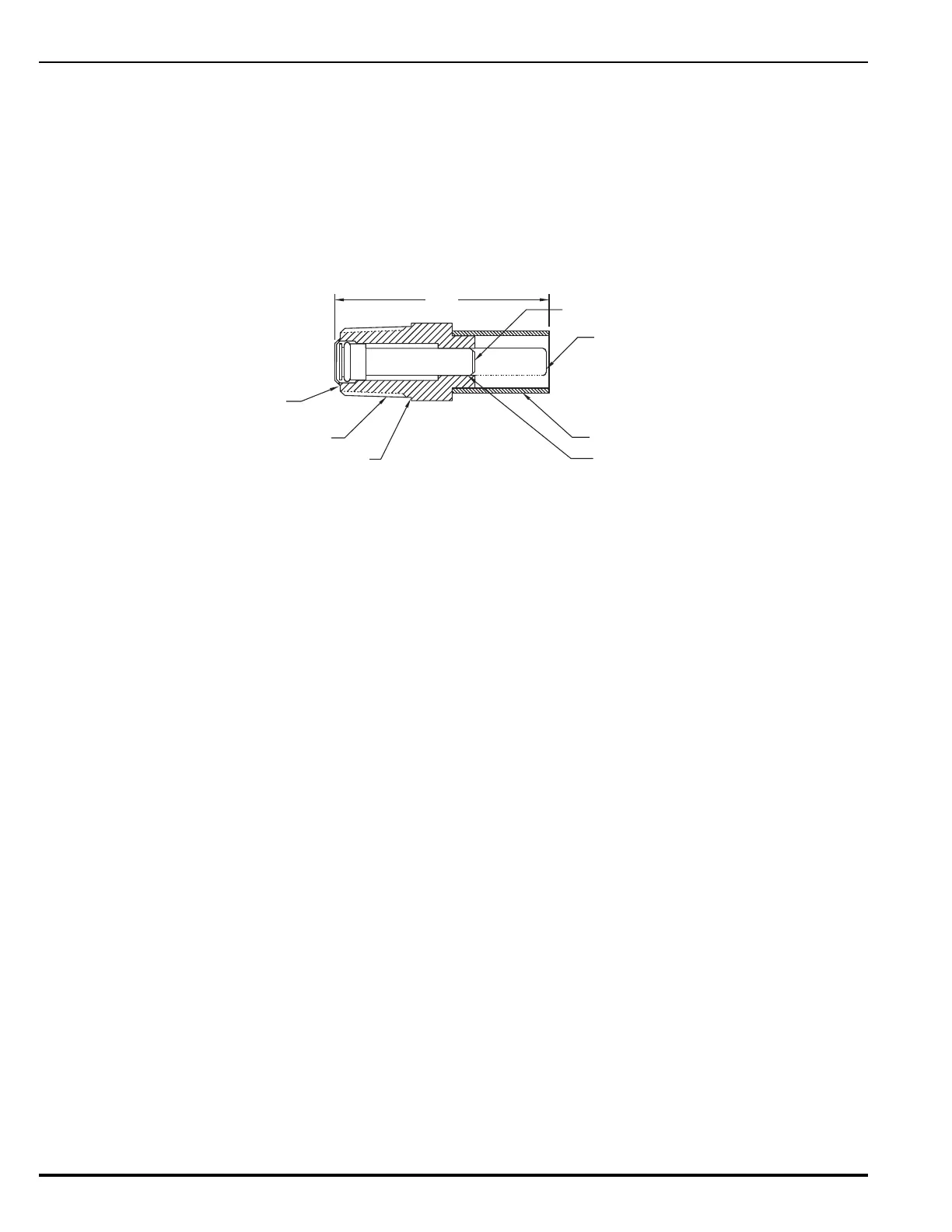

Figure 3-32. Discharge Indicator
2.62 in.
(67 mm)
BODY
NPT MALE
0.93 in. (24 mm) HEX
ACROSS FLATS
½ in.
POSITION
INDICATION
POSITION
DISCHARGE
NORMAL
STEM-RED
CAP
