23
1 x Half Wall Insert 1-3/8 x 20-1/4 x 38-13/16”
1 x Half Wall 1.27 x 18.8 x 14-7/8”
Wood Parts
Hardware
9220
2655A
17 x # 8 x 7/8” Truss Head Screw
S0
x 2 per side
x 2 per
side
x 9
A
B
C
D
E
A
B
C
D
E
A
B
C
D
E
S0
S0
9220
9220
2655A
2655A

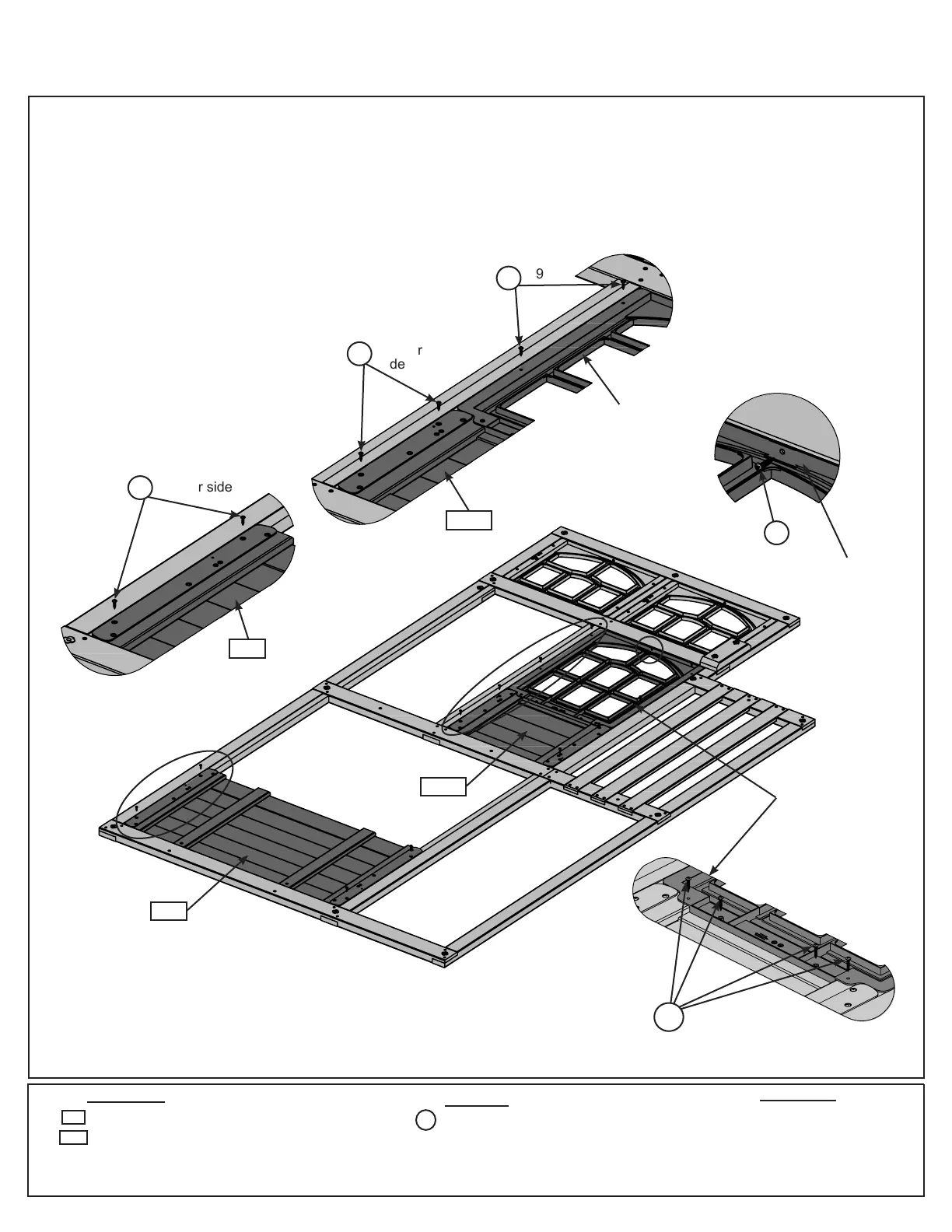

P: Place (2655A) Half Wall into the upper opening on the right side. Attach using 4 (S0) # 8 x 7/8” Truss Head
Screws . (g. 2.12 and 2.14)
Q: Place 1 MOD 8 Pane Window in the upper opening and attach to frame assembly using 9 (S0) #8 x 7/8”
Truss Head Screws. (g. 2.12, 2.14, 2.15 and 2.16)
R: Place (9220) Half Wall Insert into the opening in the bottom of the assembly as shown in g.2.12. Attach
using 4 (S0) # 8 x 7/8” Truss Head Screws . (g. 2.12 and 2.13)
Step 2: Front Wall Assembly
Part 5
Fig. 2.12
Fig. 2.13
Fig. 2.14
Fig. 2.15
Fig. 2.16
S0
S0
MOD 8
Pane
Winow
Other Parts
1 x MOD 8 Pane Window
MOD 8 Pane
Windows
MOD 8
Pane
Windows
S0
