29
Wood Parts

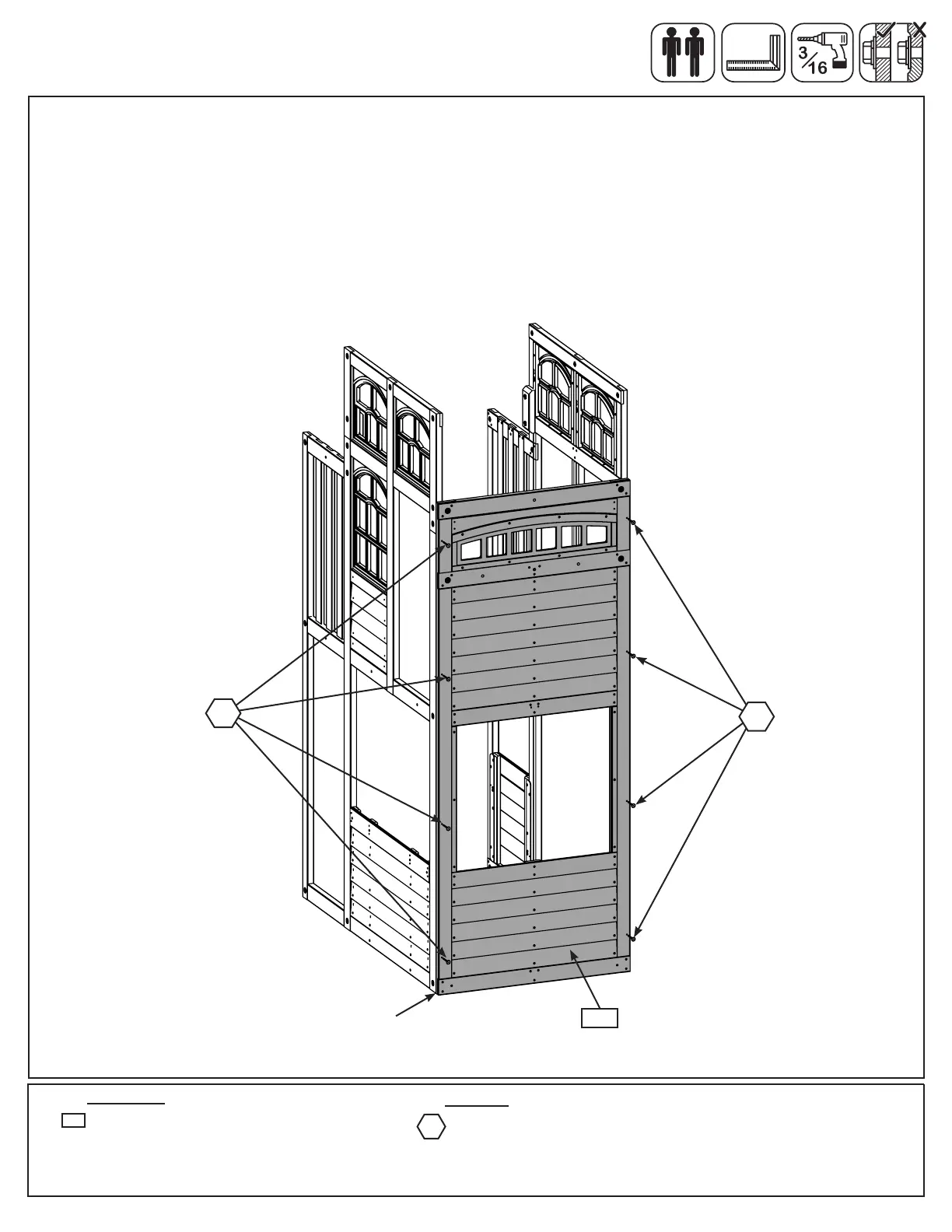

Fig. 4.1
Hardware
8 x 1/4 x 2-1/2” Wafer Lag
WL5
WL5
WL5
Flush
9213
1 x SW Wall Panel 1-1/4 x 37 x 92”
9213
A: With a helper, stand Front Wall Panel upright and place (9213) SW Wall Panel against the tall end of the
panel so that the edges are ush. The bottom of the panels should be ush and panels square. Pre-drill with a
3/16” drill bit, then fasten (9213) SW Wall Panel to Front Wall Panel with 4 (WL5) 1/4 x 2-1/2” Wafer Lags. (g.
4.1)
B: Repeat Step A to install (9213) SW Wall Panel to the Back Wall Panel.
Step 4: Swing Wall Assembly
