55
Hardware
2 x #8 x 2” Wood Screw
S11
1913

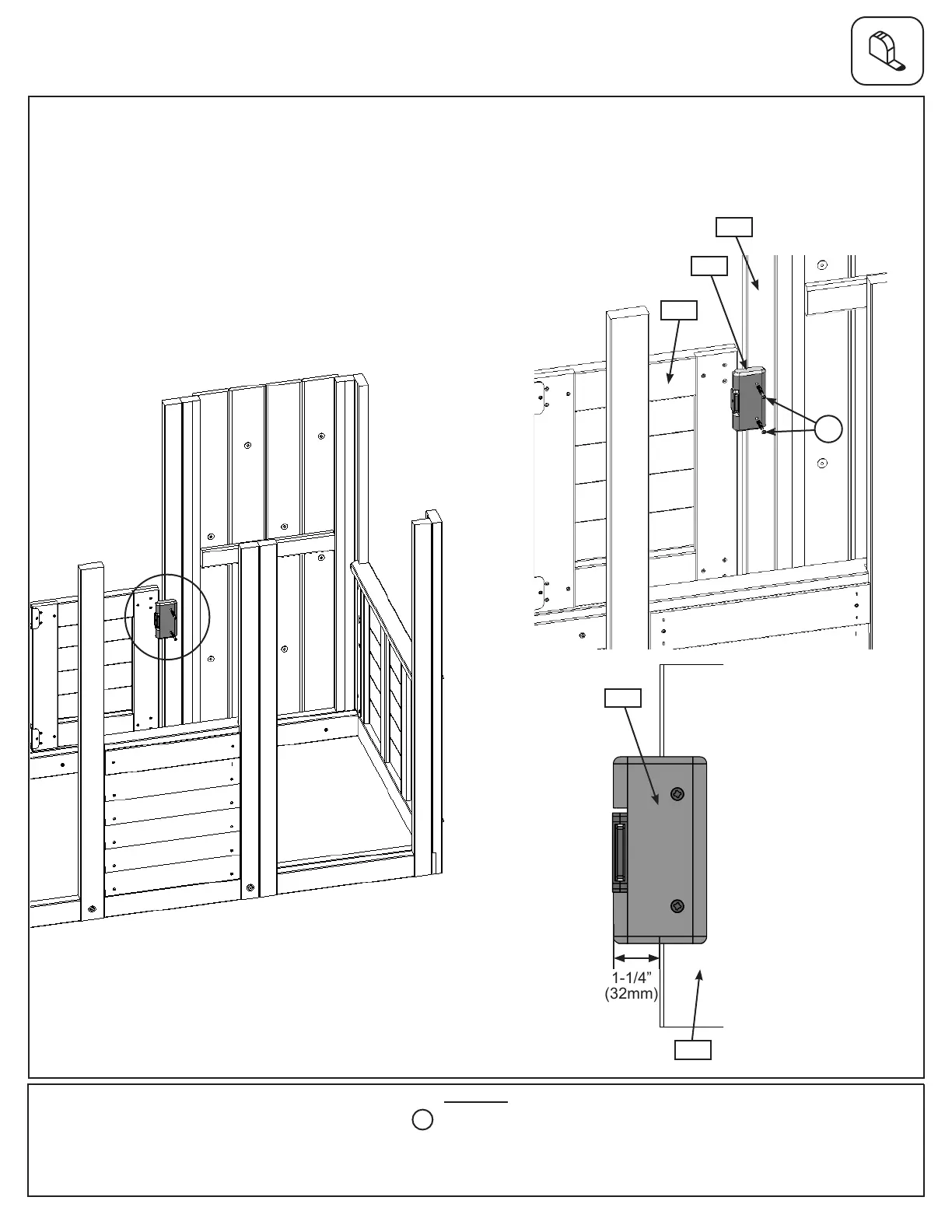

G: On the inside of the assembly, attach (1913) Door Latch Block to (9363) Base End Post with 2 (S11) #8 x 2”
Wood Screws, making sure (1913) Door Latch Block overhangs (9363) Base End Post by 1-1/4” (32mm) and is in
position to receive the Catch Plate. (g. 19.8, 19.9 and 19.10)
Step 19: Dutch Door Assembly
Part 4
Fig. 19.8
Fig. 19.9
Fig. 19.10
1-1/4”
(32mm)
Inside View
071
132
S11
9363
9215
