KidKraft Cedar Summit DEVONSHIRE ELITE - Page 63

63
Step 23: Attach Hand Grips to Fort
Other Parts
2 x Hand Grip
Hardware
4 x 1/4 x 1-3/8” Wafer Lag
WL3

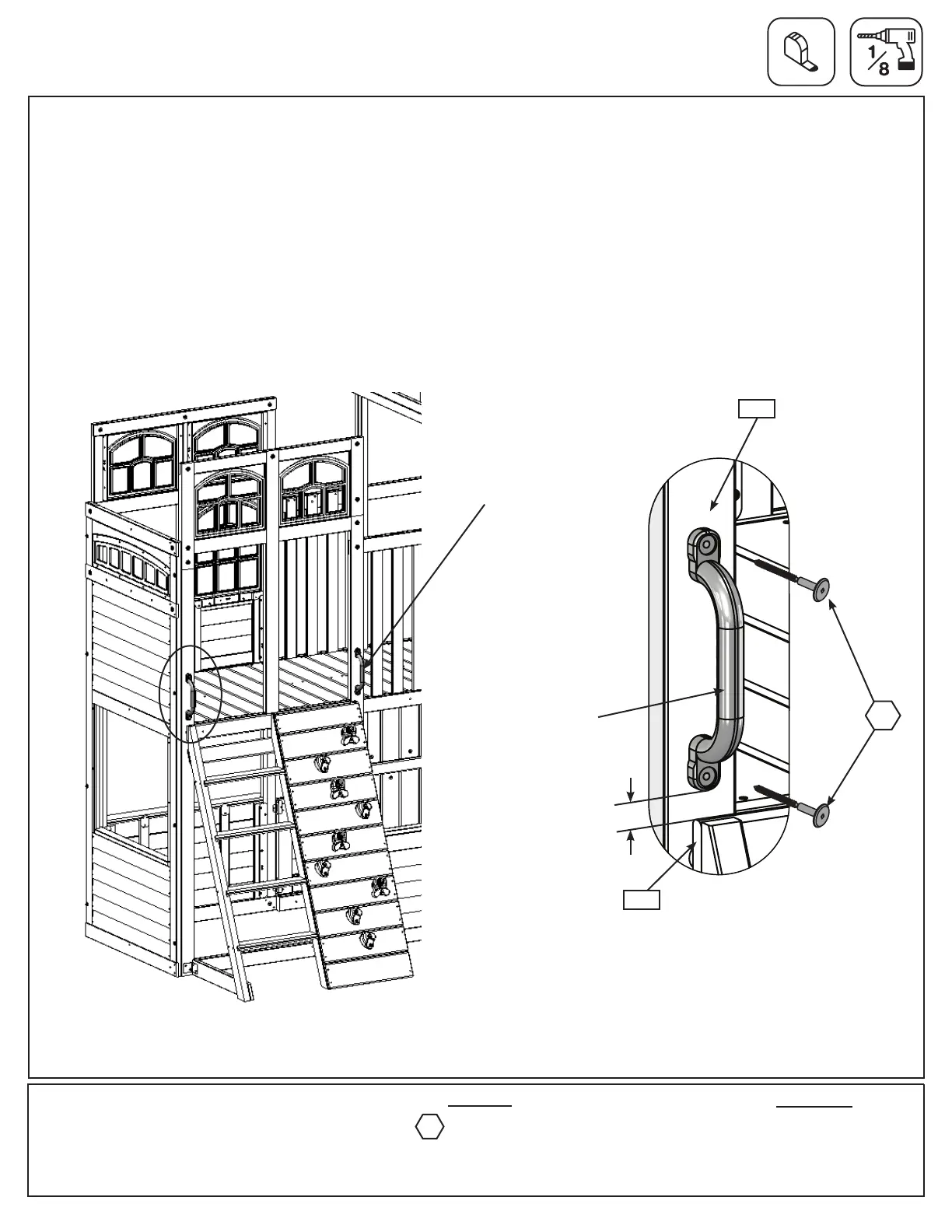

A: Measure 6” (152mm) from the top of (9062) RW/AL Support on Back Wall Panel in the 2 places shown
below. Pre-drill with a 1/8” drill bit then attach 2 Hand Grips using 2 (WL3) 1/4 x 1-3/8” Wafer Lag per Hand
Grip. (g. 23.1 and 23.2)
Hand
Grip
WL3
9360
Fig. 23.1
Fig. 23.2
6”
(152mm)
9062
Hand Grip
