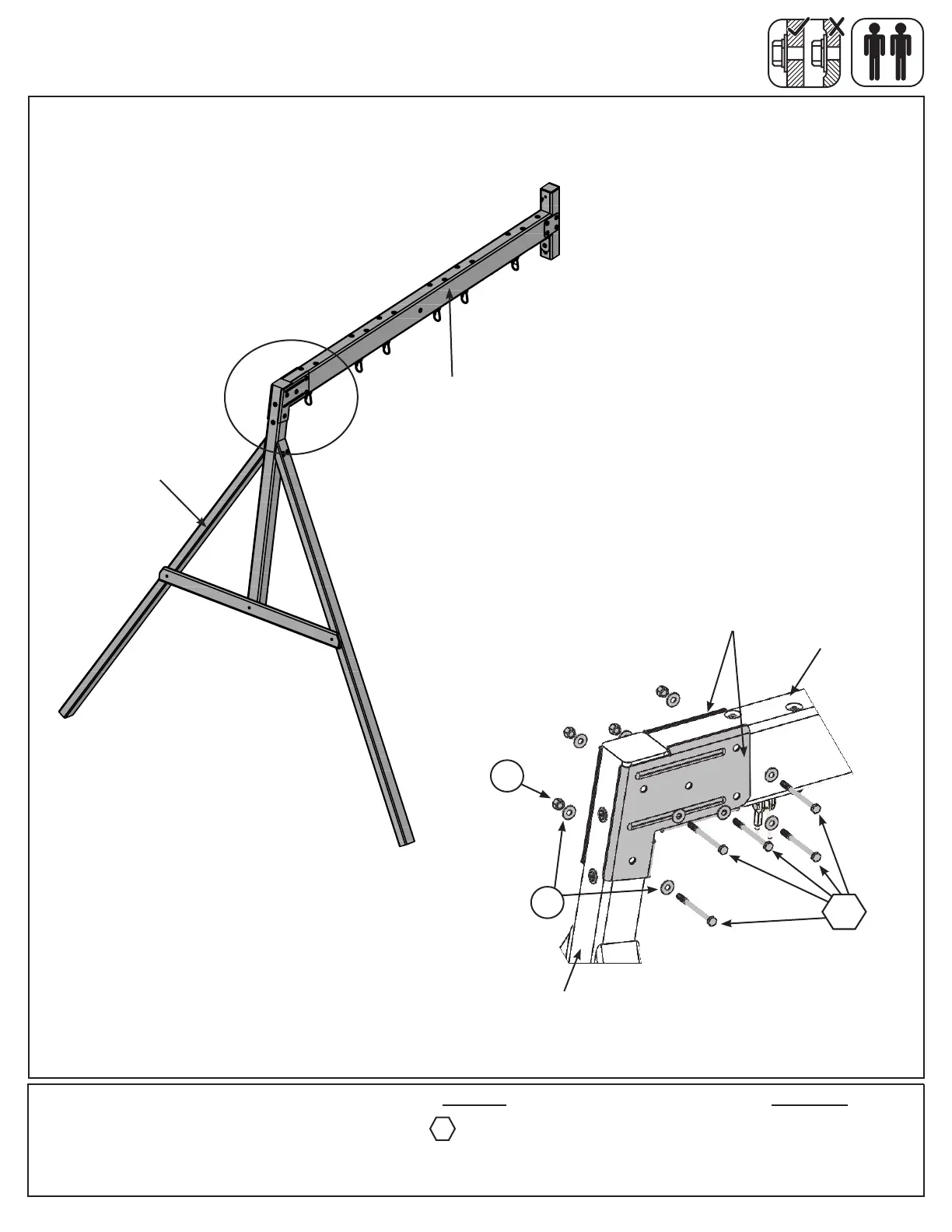

Step 31: Attach Swing End to Swing Beam
A: Place Swing End Assembly against Swing Beam Assembly then place 1 Beam Bracket on each side of the
assembly (they are specic for left and right side) and attach with 5 (G21) 5/16 x 3-3/4” Hex Bolts (with 2 at
washers and 1 lock nut). (g. 31.1 and 31.2)
Hardware
5 x Hex Bolt 5/16 x 3-3/4”
(FW2 x 2, LN2)
Other Parts
2 x Beam Bracket (Left/Right)
G21
Fig. 31.1
Beam
Bracket
Swing Beam
Assembly
Swing End
Assembly
G21
Fig. 31.2
Swing Beam
Assembly
Swing End
Assembly
FW2
LN2
