Repair and Adjustments
Issue: 06/2011
• Put down the reector onto the lower holders.
• Move the upper holder bar over the reector and carefully put it down on the reector
edge.

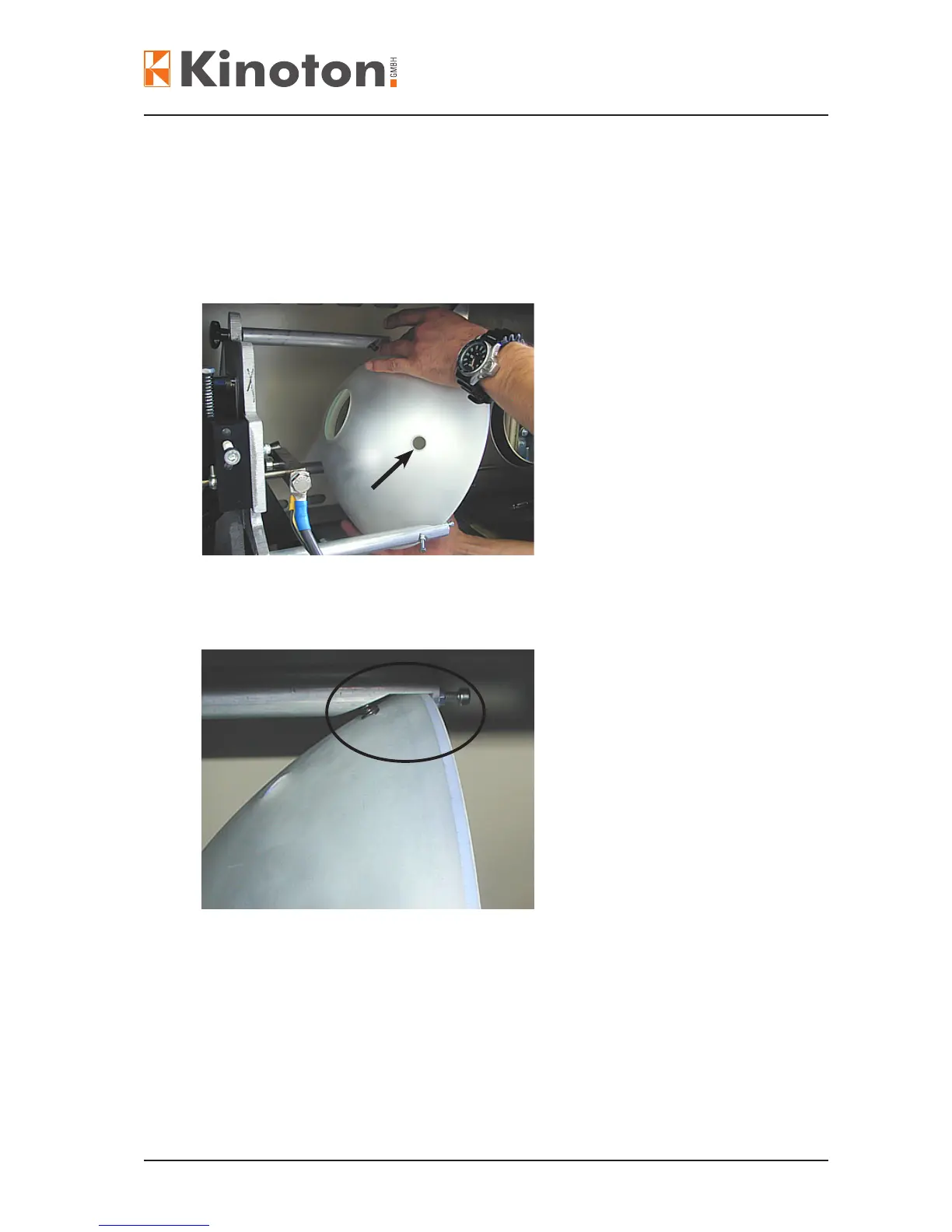

$Installing the reector look for the inspection window in the reector.
It must face to the operator side.
$The reector edge must be positioned exactly in the three holders.
$In the upper holder the reector should have about 1 mm distance to the holder and
the spring should lay evenly on the reector surface.
