Lubrication and Maintenance
WHEEL BEARINGS
All drive, transport, and marker hub wheel bearings should be repacked annually and checked for wear.
1. Raise wheel off ground.
2. Check for bearing endplay by moving wheel side to side.
3. Rotate wheel to check for bearing roughness. If bearings sound rough, remove hub and inspect bearings.
NOTE: To repack wheel hubs, follow procedure outlined for wheel bearing replacement except bearings and
bearing cups are reused.
GREASE FITTINGS
Parts equipped with grease fittings should be lubricated at frequency indicated with an SAE multipurpose grease.
Clean fitting thoroughly before using grease gun. Frequency of lubrication recommended is based on normal operating
conditions. Severe or unusual conditions may require more frequent attention.
Row marker assemblies - 3 per assembly
Center Pivot - 1
Plug
LIQUID FERTILIZER PISTON PUMP
CRANKCASE OIL LEVEL
Check crankcase oil daily and maintain at oil level
check plug. Fill as needed with EP 90 weight gear oil.
Total oil capacity is approximately ¾ pint.
Refer to operator and instruction manual supplied with
pump and flow divider for more information.

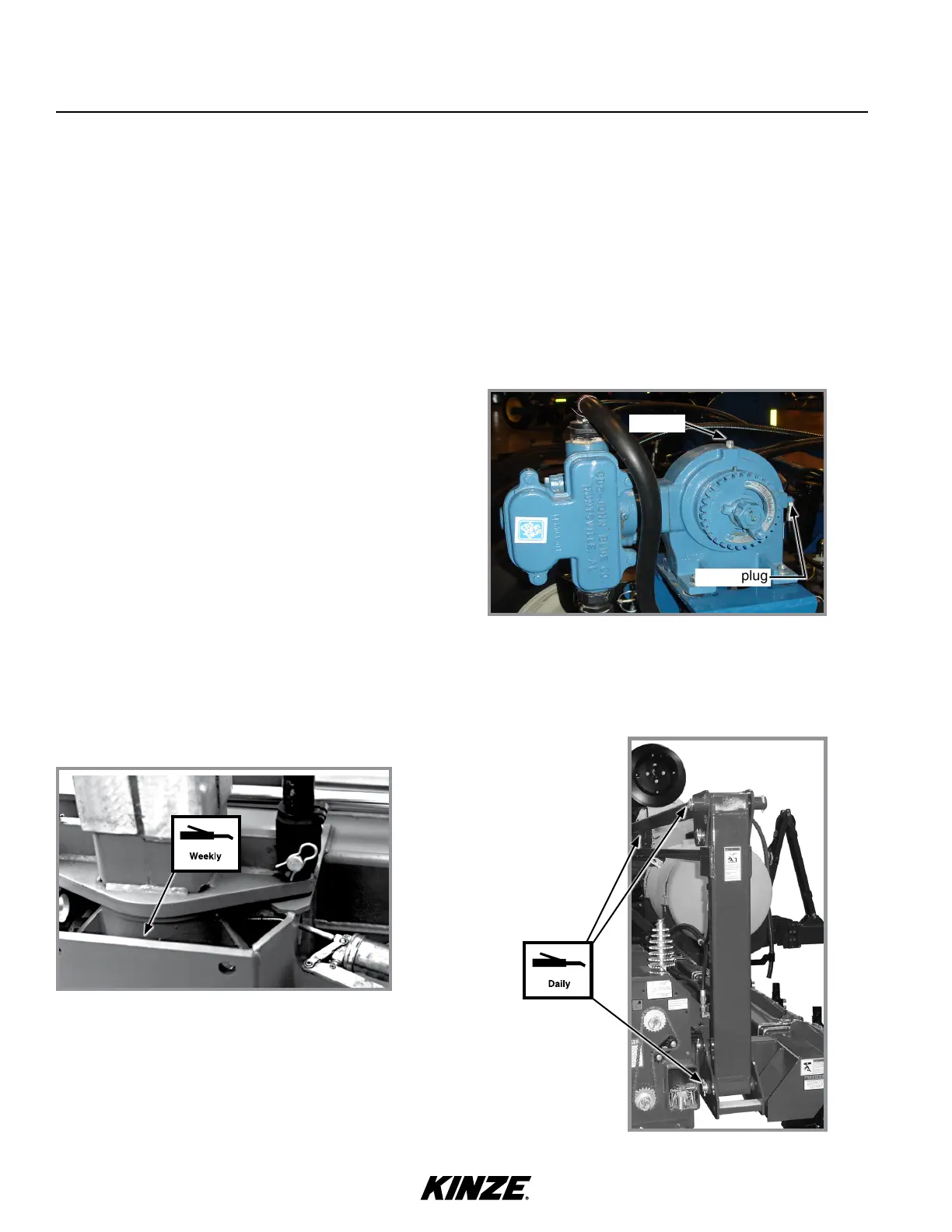

Piston pump oil fill and check plug locations
Check plug
Fill plug
