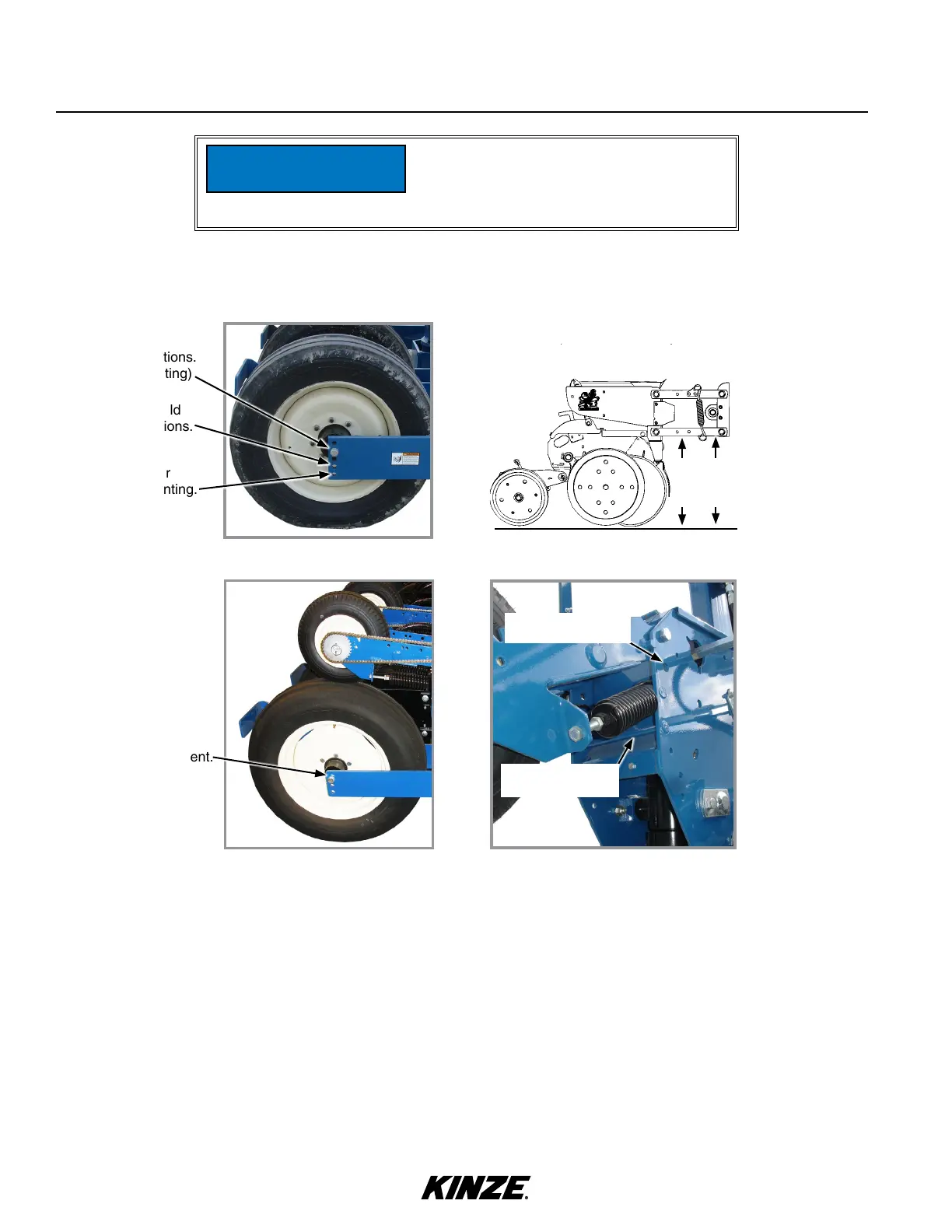

RIDGE PLANTING
Move drive and transport wheels 5 or 10 cm to lower mounting holes in wheel arms when ridge planting to increase
planter toolbar height. Contact drive tire must also be moved to lower set of holes in wheel module and down pressure
springs hooked on lower rod. Raise hitch height to ensure level operation.
NOTE: If setting is changed see basic adjustment procedure under “Contact Wheel Spring Adjustment”
Ground drive wheel
adjustment
Ground drive
wheel adjustment.
For lowering contact
drive wheel arms.
For lowering down
pressure springs.
NOTE: To allow adequate drive force after lowering ground drive wheels, it may be necessary to lower
contact drive wheel arms to lower sets of holes in wheel modules and lower down pressure springs to lower
mounting rods on wheel modules.
No till or firm
soil conditions.
(Initial setting)
Soft field
conditions.
Ridge or
bed planting.
Transport wheel adjustment
Contact drive wheel adjustment
Parallel
with
ground
Keep row unit parallel arms parallel to
ground when adjusting wheel heights.
Component interference can damage
equipment. Check clearance between
tires and drill shaft U-joint when using
top hole setting.
NOTICE
