Kinze 3605 - Row Marker Even-Row Length Adjustment; Offset Hitch Adjustment

Model 3605M0312-01
07/20 2-45
Machine Operation
Number Of Rows x Row Spacing (centimeters)
=
Dimension Between Planter Center Line
And Marker Blade
12 Rows x 70 cm Spacing = 840 cm Marker Dimension
16 Rows x 70 cm Spacing = 1120 cm Marker Dimension
Adjust marker extensions as shown below when using even-row push row unit option.
Center Of 35 cm Dimension
Planter To x 2 + Row = Between
Center Of Spacing Planter Center
Outer Row Line And
Unit Marker Blade
12 Row 70 cm With 12 Split Row Push Row Units
(L.H. Marker 420 cm x 2 + 35 cm = 875 cm)
(R.H. Marker 385 cm x 2 + 35 cm = 805 cm)
16 Row 70 cm With 16 Split Row Push Row Units
(L.H. Marker 560 cm x 2 + 35 cm = 1155 cm)
(R.H. Marker 525 cm x 2 + 35 cm = 1085 cm)

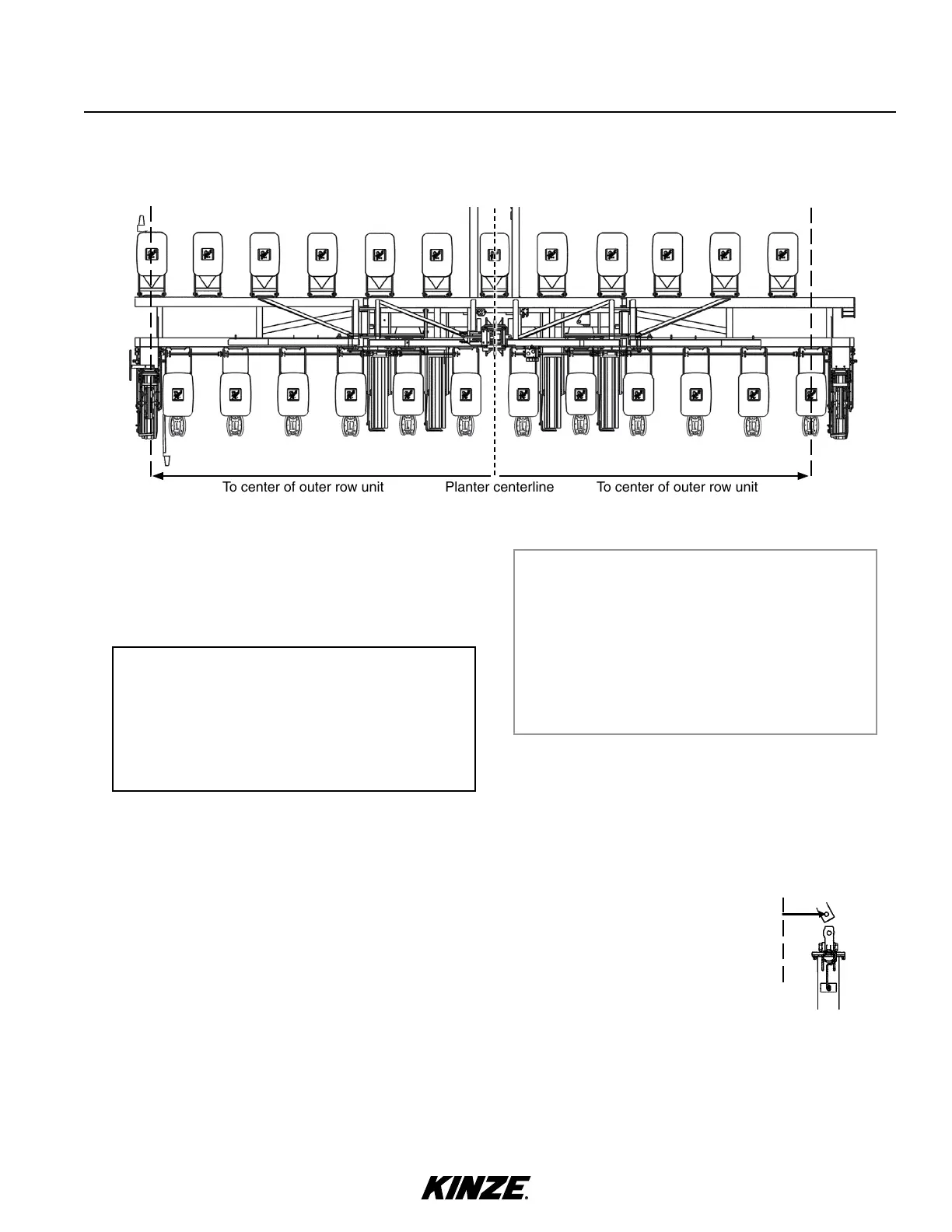

ROW MARKER EVEN-ROW LENGTH ADJUSTMENT
Planter centerline To center of outer row unitTo center of outer row unit
Tractor center line
Tractor hitch offset
19 cm right.
OFFSET HITCH ADJUSTMENT
If tractor hitch is offset 19 cm right of tractor center line,
add 19 cm to marker dimension on R.H. side of planter and
subtract 19 cm from marker dimension on L.H. side of planter.
