Machine Operation
The tractor mounted PTO pump and oil cooler option is for
tractors with less than required hydraulic output needed
to operate hydraulic-driven vacuum fan and other planter
hydraulic requirements.
A 1000 RPM PTO is required to operate the PTO-driven
hydraulic pump.
PTO pump option consists of a 1"-21 or 1"-20 spline 13.5
GPM 2000 psi tractor mounted pump, planter mounted 10
gallon capacity hydraulic reservoir with spin-on 10-micron
oil filter, vacuum fan mounted 15 GPM-rated oil cooler, and
required hydraulic valves, fittings, and hoses.

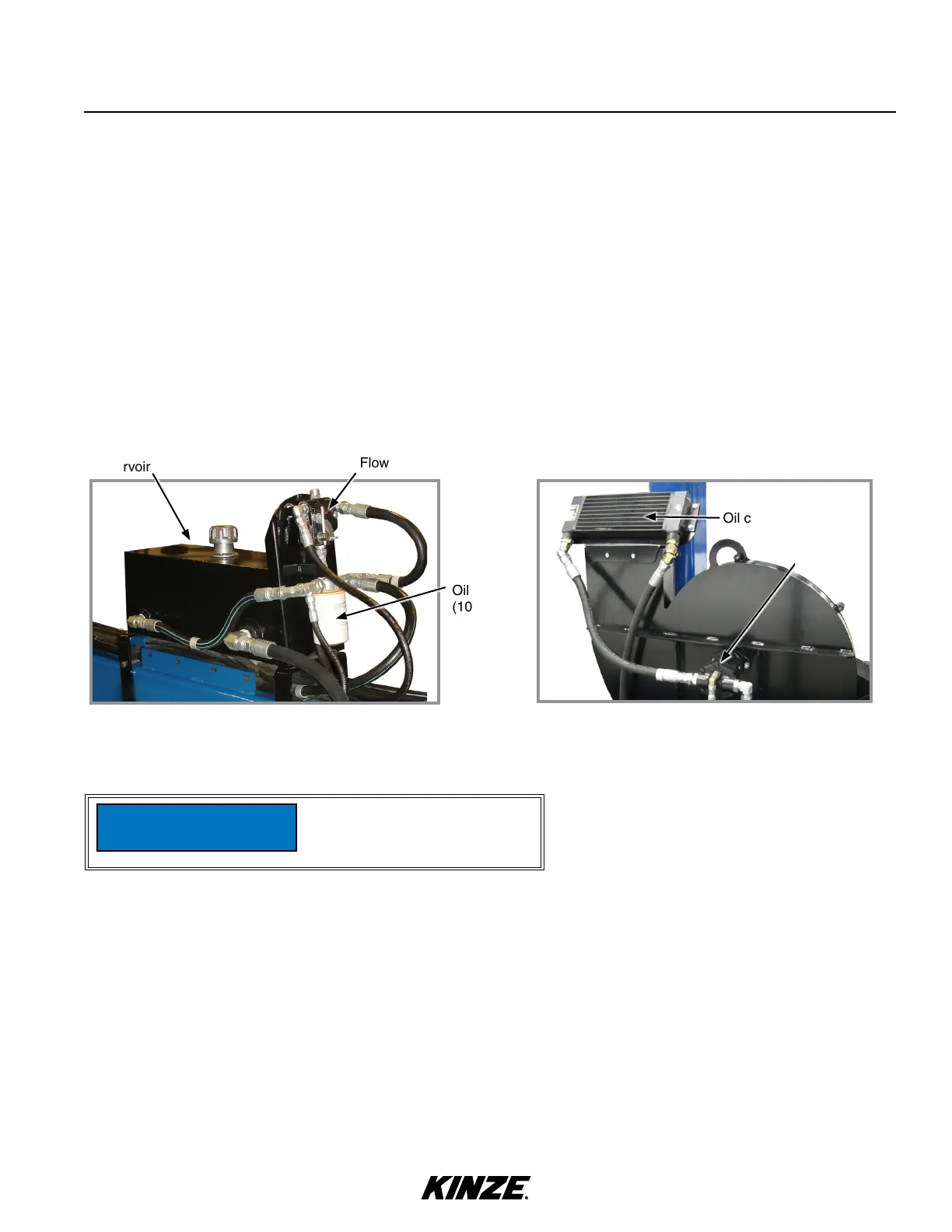

TRACTOR MOUNTED PTO PUMP AND OIL COOLER OPTION
Flow control valve*
Oil filter
(10 Micron)
Reservoir
Hydraulic reservoir, flow control valve, and fittings
For Oil Specification, see "Oil
Specification" on page 2-8
NOTICE
Vacuum fan assembly
Oil cooler
Hydraulic
motor
* Electric Drive uses a relief valve rather than the flow control valve shown. Flow is controlled by Blue Drive System at the fan.
