M0312-01Model 3605
6-20 07/20
Lubrication and Maintenance
GAUGE WHEEL ARM PIVOT SPINDLE REPLACEMENT
1. Remove gauge wheel and arm assemblies from shank assembly.
2. Remove ½" x ¾" cap screw that locks pivot spindle in place and remove spindle.
3. Install replacement spindle and position as shown. Exact centering is critical.
4. Install ½" x ¾" cap screw and torque to lock pivot spindle in place.
5. Install gauge wheel and arm assemblies. Shim for proper gauge wheel tire/disc blade clearance.

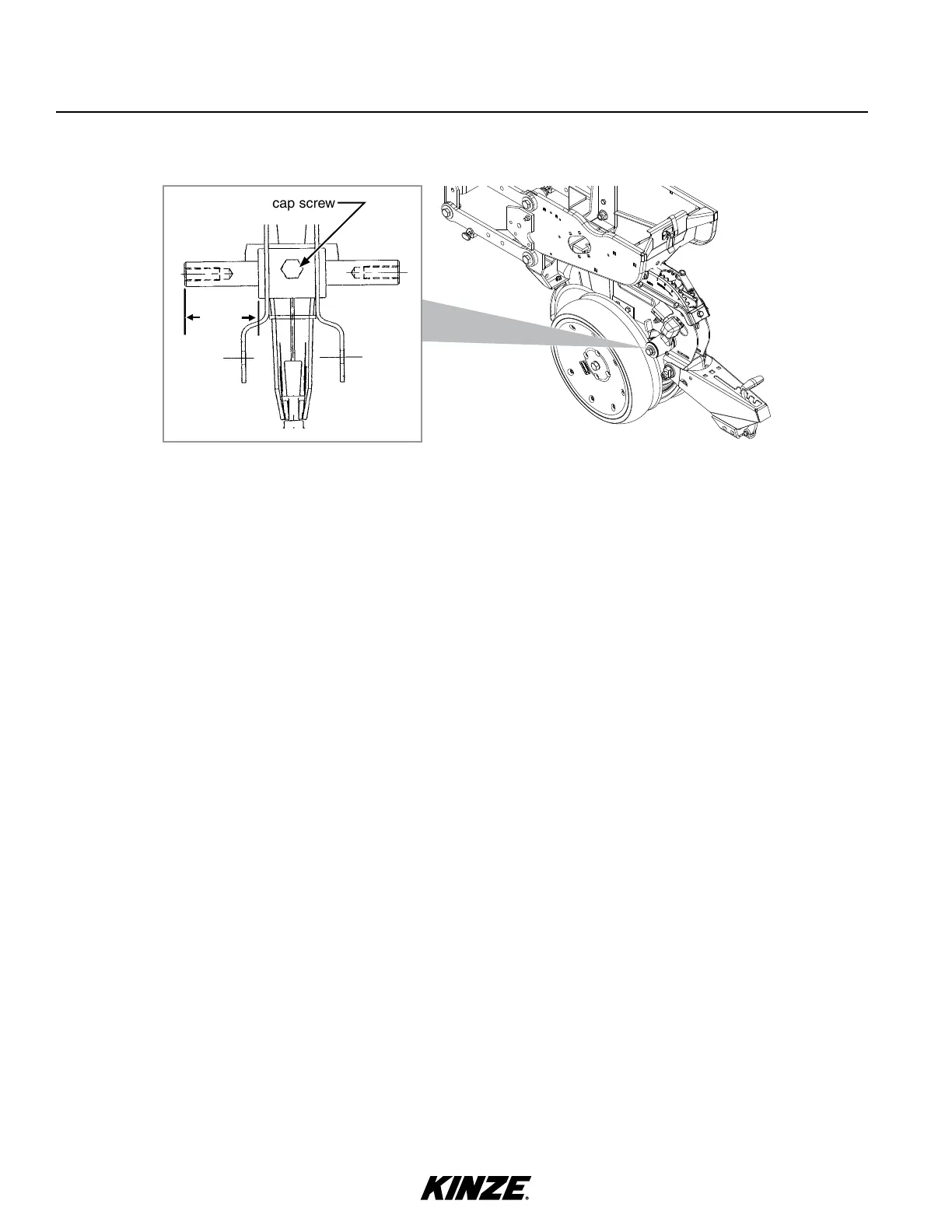

Gauge Wheel Pivot Spindle
2⅞"
Pivot spindle cap screw
