Row Unit Operation
Pull row unit assist springs
Push row unit assist springs
PNEUMATIC DOWN PRESSURE PACKAGE OPTION

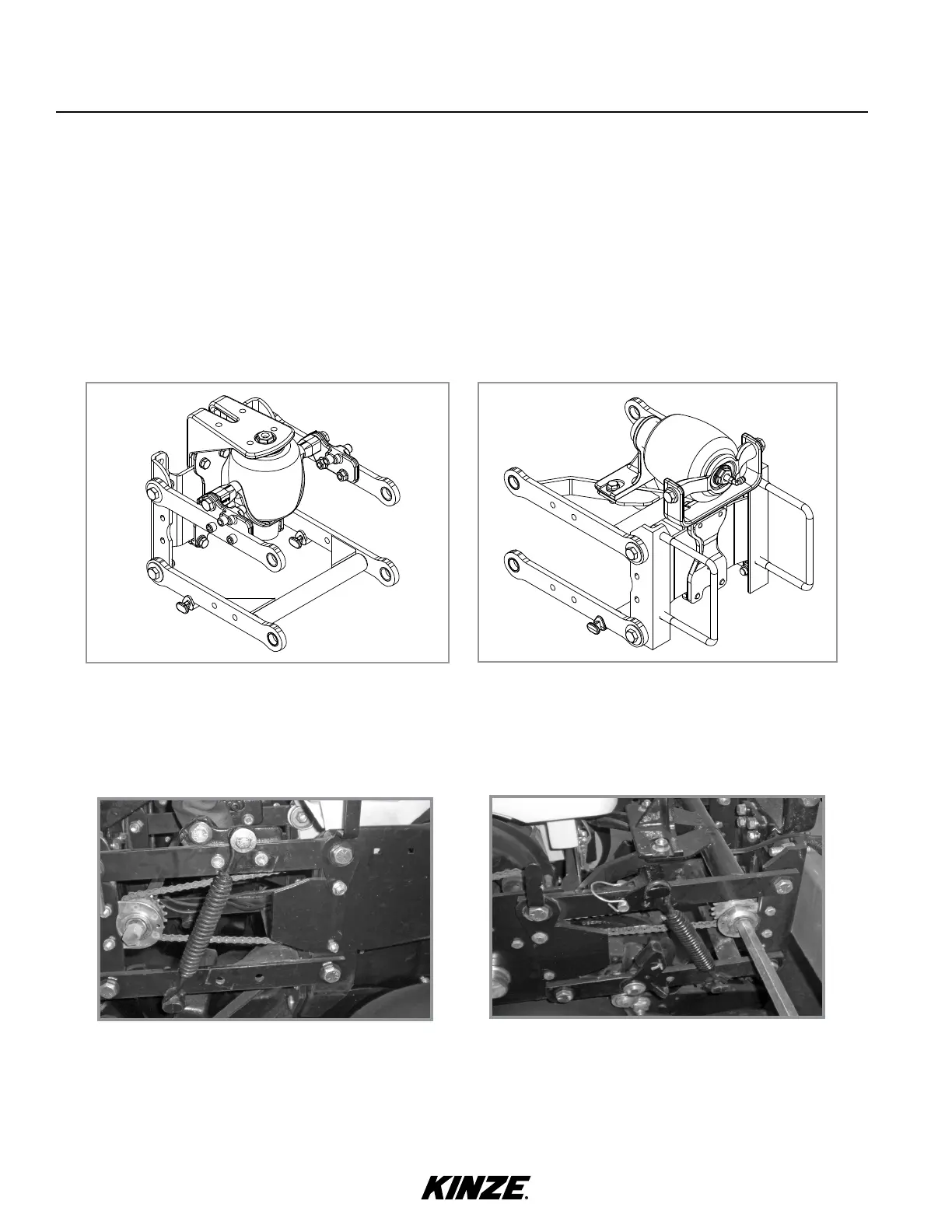

Row unit down pressure can be adjusted on-the-go as field conditions change with pneumatic down pressure option.
A cab-mounted control box adjusts pressure (Older models may have a digital readout). A planter-mounted 12 VDC
air compressor with 3 gallon capacity air tank supplies air for the down pressure system.
Packages include upper and lower air spring mounting castings for pull row units (front and rear air spring mounting
castings for push row units), 150 psi rated air springs, ⅜” O.D. nylon hoses, dual solenoid air valve and stainless steel,
160 psi, 2” liquid-filled gauge and planter wiring harness.
Pneumatic down pressure row unit extension brackets are required in some applications.
Push Row Unit Air Spring
Pull Row Unit Air Spring
NOTE: If additional down pressure is needed with the Pneumatic Down Pressure Package, assist springs are
available through your Kinze dealer. One spring is installed on the outer side of the parallel arms on each
side of the row unit as shown below.
