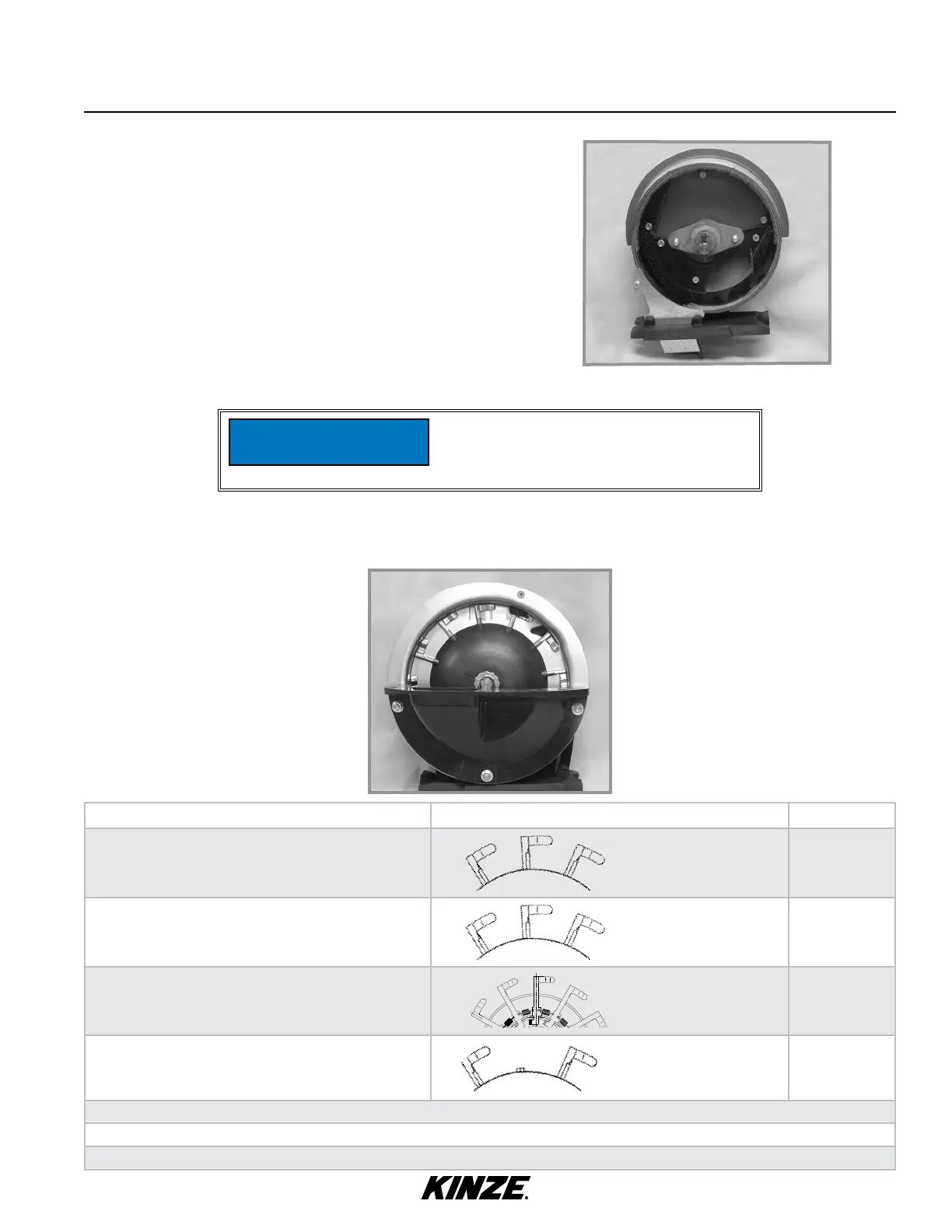

Model 3605M0312-01
07/20 3-15
Row Unit Operation
Turn seed disc counterclockwise when installing on meter hub while
tightening two wing nuts that retain disc. Seed disc should have slight
resistance when rotated counterclockwise after wing nuts are tight.
Brush-type seed meter attaches to seed hopper same as finger
pickup seed meter. Secure to bottom of seed hopper with two 5∕16"
thumbscrews. Tighten thumbscrews slightly with pliers. DO NOT
OVER TIGHTEN.
Misalignment between drive coupler and seed meter input shaft may
cause erratic seed spacing from momentary stoppage of seed disc.
Check alignment and adjust as needed.
Refer to planting rate charts in this manual for recommended seed
drive transmission sprocket combinations.
NOTE: Clean seed is required to ensure accurate seed metering from brush-type seed meters. Remove seed discs
daily and check seed meter or brushes for buildup of foreign material, such as hulls, stems, etc.
Shown without seed disc installed
FINGER PICKUP SEED METER
Crop
Fingers
*Lubricant
Corn
Part No.: GR1848 - Part No.: GR1848 -
Finger Assembly, CornFinger Assembly, Corn
Graphite
Talc
No. 1 and/or No. 2 size
Confectionery Sunflower Seeds
Part No.: GR1848 - Part No.: GR1848 -
Finger Assembly, CornFinger Assembly, Corn
Talc
No. 3 and/or No. 4 size
Oil Sunflower Seeds
Part No.: GR2154 - Part No.: GR2154 -
Finger Assembly, OilFinger Assembly, Oil
Talc
Blank fingers replace alternate fingers to reduce planting
rate by half while allowing the finger wheel to maintain a
minimum of 40 RPM when planting low rates.
Part No.: GD11787 - Part No.: GD11787 -
Half Rate Blank FingerHalf Rate Blank Finger
Graphite
Talc
*For More information on application rate see Additives section.
NOTE: Always field check seed population to verify planting rates.
NOTE: Refer to planting rate charts in this manual for recommended seed drive transmission sprocket combinations.
Replace hopper lids after hoppers are filled
to prevent accumulation of dust or dirt in
seed meter which will cause premature
wear.
NOTICE
