M0312-01Model 3605
2-24 07/20
Machine Operation

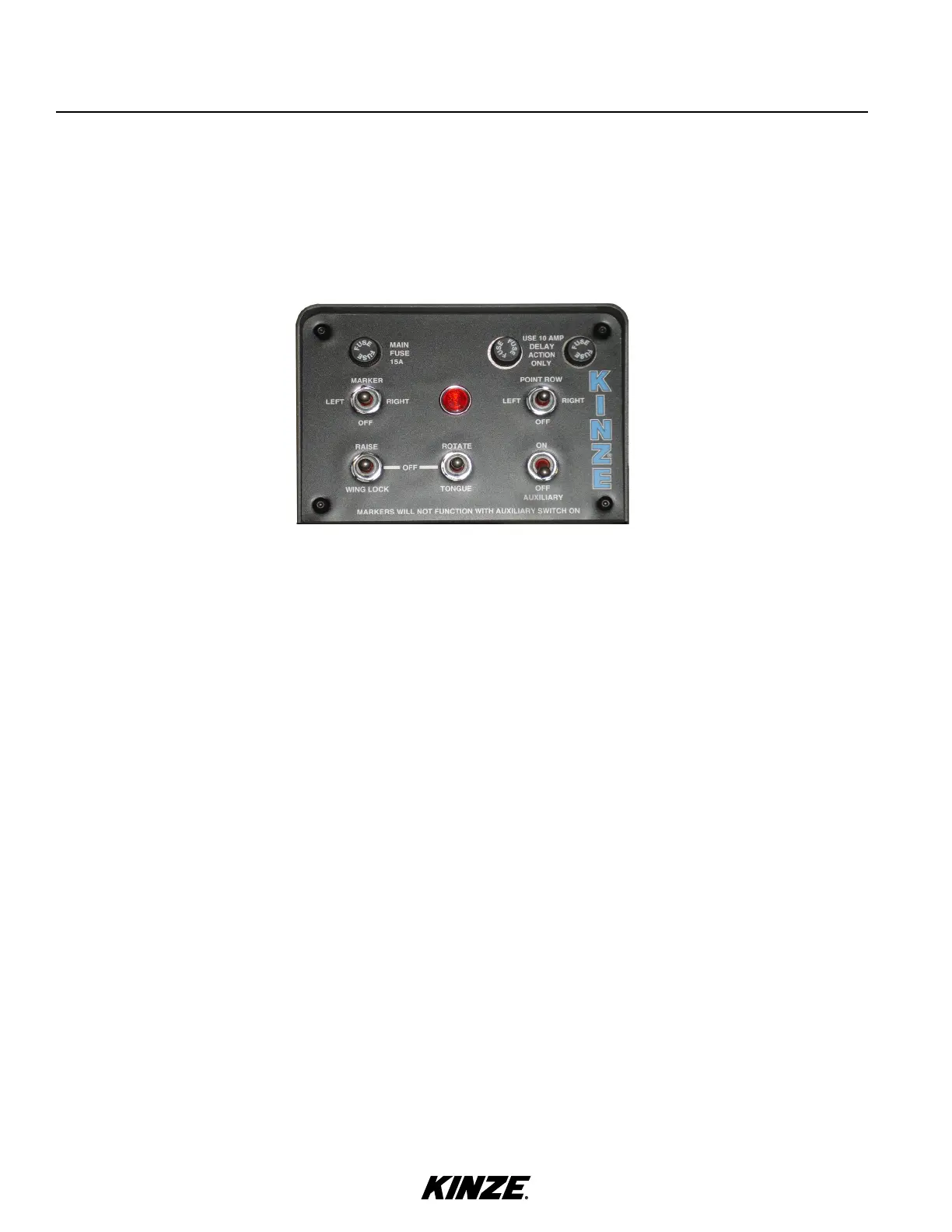

Control console switches and tractor’s hydraulic system are used to raise planter to transport position, operate rotate
and tongue extension functions, lock and release planter wings, and raise and lower row markers.
NOTE: Turn console backlighting OFF during extended periods of non-use using push button switch on back
of console.
HYDRAULIC/ELECTRIC OPERATION
Single point row clutch control box
