M0312-01Model 3605
2-6 07/20
Machine Operation
TRACTOR PREPARATION AND HOOKUP
1.
Adjust tractor drawbar 33-43 cm above ground with hitch pin hole directly below PTO shaft center line. Make sure
drawbar is in a stationary position.
2.
Install control console or Kinze Blue Vantage Display on tractor in
a convenient location within easy reach of operator and close to
hydraulic controls. Mount control console securely and route power
cord to power source.Control console operates on 12 VDC only. If
two 12 volt batteries are connected in series, ALWAYS make power
connection on battery grounded to tractor chassis.
If two 6 volt batteries are connected in series, make sure power
connection provides 12 VDC across positive terminal on one battery
and negative terminal of second battery.
3. Back tractor to planter and connect with 1¼" - 1½" (32 mm - 38 mm) diameter hitch pin. If tractor is not equipped
with a hitch pin locking device, make sure hitch pin is secured with a locking pin or cotter pin.

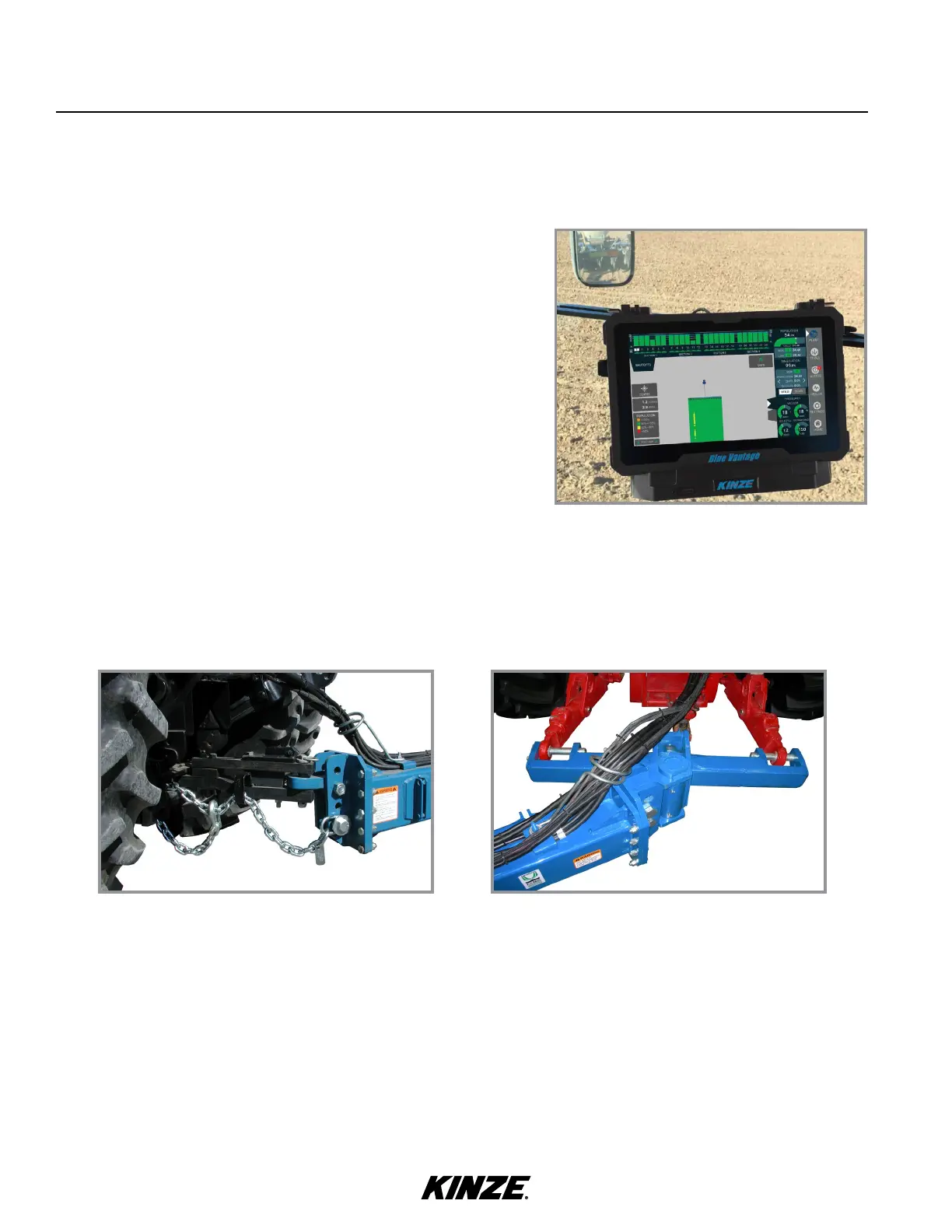

Planter/safety chain hookup to tractor Optional 2-point hitch
NOTE: DO NOT install safety chain using clevis mounting hardware. Safety chain MUST be installed
separately.
4. Safety chain must be used to keep planter and tractor connected in case of a hitch pin/drawbar failure. Attach
safety chain at an unused clevis mounting hole on the planter hitch. Torque hardware to 1140 Nm.
NOTE: A 2-Point Hitch Option converts planter from drawn to semi-mounted and is available for use with
Category 3N or 3 three-point hitch designs. Safety chain is not used with 2-point hitch.
Kinze Blue Vantage
