Kinze 3605 - Electrical Control Console Connections - Isobus

M0312-01Model 3605
6-48 07/20
Lubrication and Maintenance

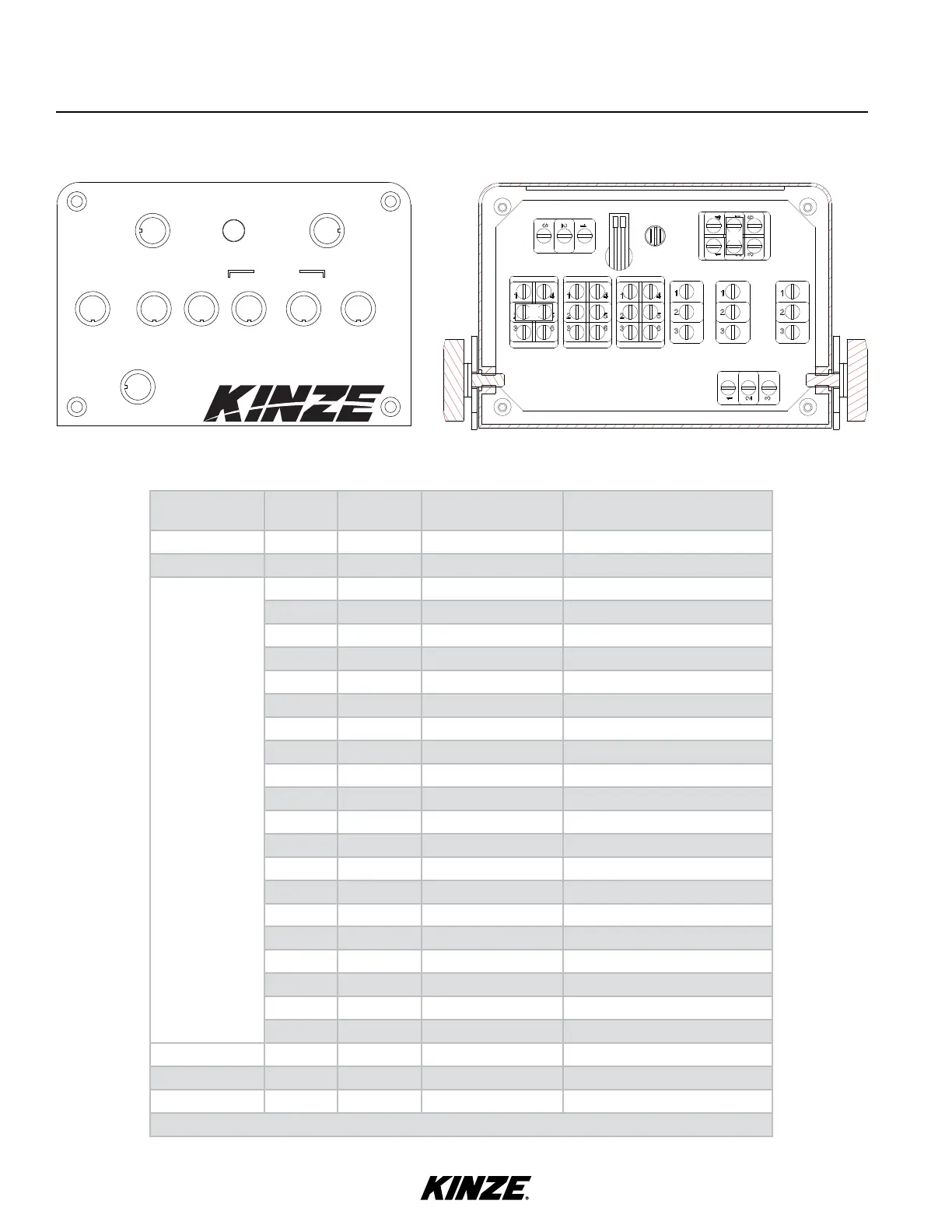

ELECTRICAL CONTROL CONSOLE CONNECTIONS - ISOBUS
Wire Hookup Chart
Reference
Designator
From To Color Function
JP1 SW2-2 SW2-5 Jumper 1
JP2 SW8-2 SW8-5 Jumper 2
W1
E1 SW2-1 Orange Marker Left
E2 SW2-3 White/Orange Marker Right
E3 SW3-3 Brown Axle
E4 SW3-1 White/Brown Wing Hooks
E5 SW4-3 Gray Fold
E6 SW4-1 White/Gray Hitch
E7 SW5-3 Green PDP Increase
E8 SW5-1 White/Green PDP Decrease
W9 TB4 Blue L VAC Increase
W10 TB5 White/Blue L VAC Increase
W11 TB6 Violet R VAC Increase
W12 TB7 White/Violet R VAC Decrease
E13 SW8-3 Yellow Work Light - Tank
E14 SW8-6 White/Yellow Work Light - Marker
E15 SW10-1 Pink Point Row L
E16 SW10-3 White/Pink Point Row R
W15 TB2 Black Tractor Ground
W16 TB2 Black Tractor Ground
W17W2 TB2 Black Tractor Ground
W18 TB1 Red Tractor Power
W2 SW3-2 SW4-2 Red Jumper Wire
W3 SW8-5 SW12-2 Red Jumper Wire
W4 SW11-2 SW12-2 Red Jumper Wire
(Continued on next page)
SW1
SW2
SW3
SW4
SW5
SW11
SW12
SW8
DS2
SW10
FUNCTION
FOLDPLANT
OFF
HITCH
FOLD
OFF
AXLE
WING
LATCH
DP INCR L INCR
VACUUM
R INCR
DP DECR L DECR
R DECR
WORK
LIGHTS
BF
ONLY
OFF
MARKERS
OFF
RIGHTLEFT
OFF
RIGHT
LEFT
POINT ROW
TM
