M0312-01Model 3605
2-36 07/20
Machine Operation

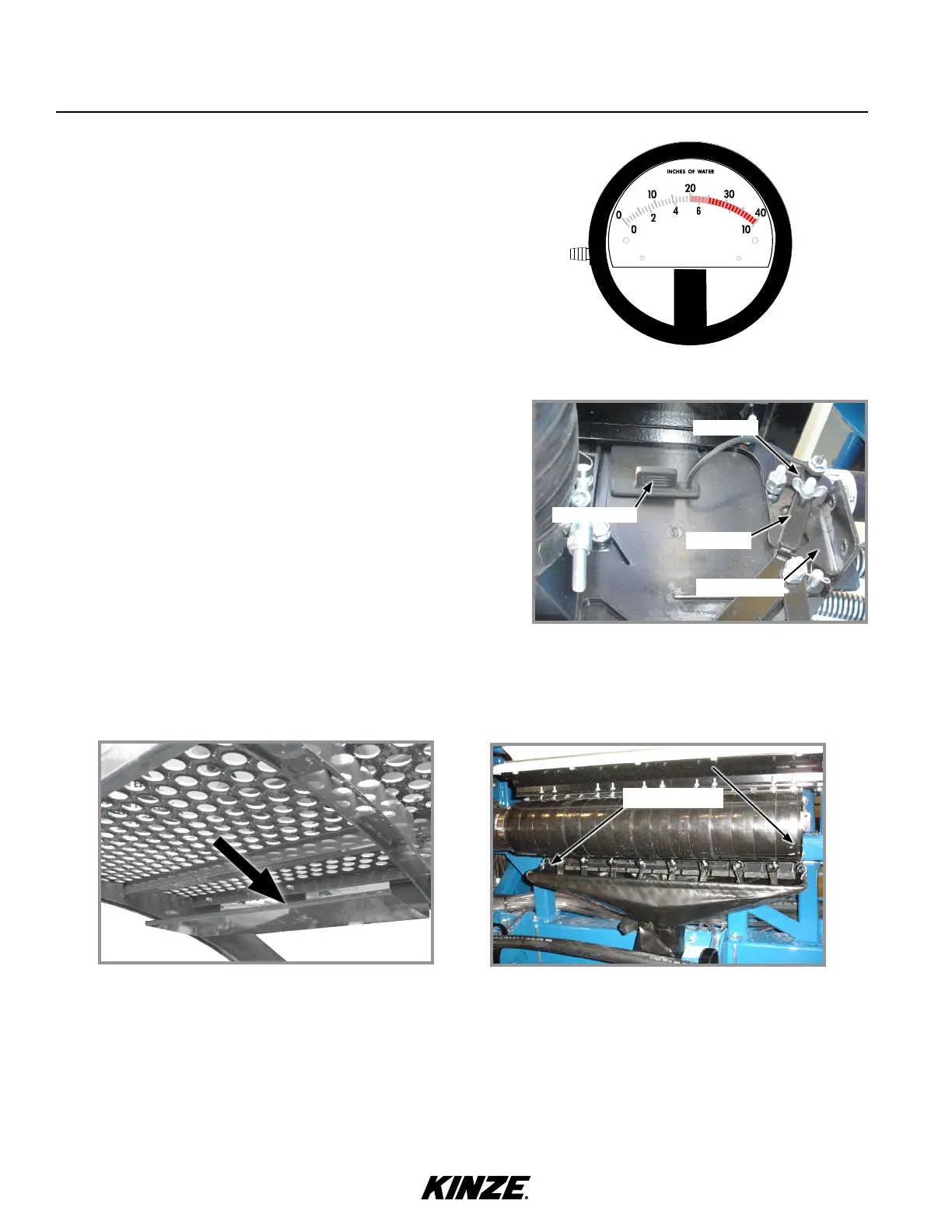

BULK FILL ENTRAINER ACCESS
1. Shut down bulk fill system.
2. Loosen wing nut and turn retainer holding shutoff door
in its storage location.
3. Remove rubber plug closest to area in entrainer needing
attention.
4. Insert shutoff door into open slot and push into entrainer
at a slight upward angle.
5. When work is complete, remove shutoff door, return door
to storage location, and plug open slot.
Bulk fill entrainer (end view)
Rubber plug
Wing nut
Shutoff door
Retainer
The analog vacuum or pressure gauge connects directly to the
vacuum and is teed into the digital sending units.
Only adjustment is to “zero” needle with no vacuum or
pressure present. If there is a significant difference between
gauge and a reading taken at meters, a different manifold
location should be found to connect hose to gauge and digital
sending unit.
8
KILOPASCALS
MAX PRESSURE 15 PSIG (103 KPA)
ANALOG VACUUM OR PRESSURE GAUGE
Analog gauge
BULK FILL TANKS - CLEAN OUT
Cleanout chute storage bracket
1. Remove bulk fill tank cleanout chute from storage location beneath catwalk.
2. Position tube of chute under entrainer and attach hooks on each end of entrainment assembly.
3. Open cleanout doors and empty tank.
4. Close all cleanout doors and return cleanout chute to storage location.
Cleanout chute installed
Chute hooks
