M0312-01Model 3605
3-2 07/20
Row Unit Operation
Drag closing attachment pulls loose soil over seed trench.
NOTE: Use of a seed firming wheel or other seed firming
device is recommended with drag closing attachment.
Front and rear adjustment is made using slotted holes in
blades. Adjust all rows the same. Wheel arm stop eccentric
bushings provide lateral adjustment. Use a ¾" wrench to
loosen closing wheel arm to wheel arm stop hardware. Use
another ¾" wrench to turn eccentric bushings until drag closing
attachment is aligned with seed trench. Tighten hardware.

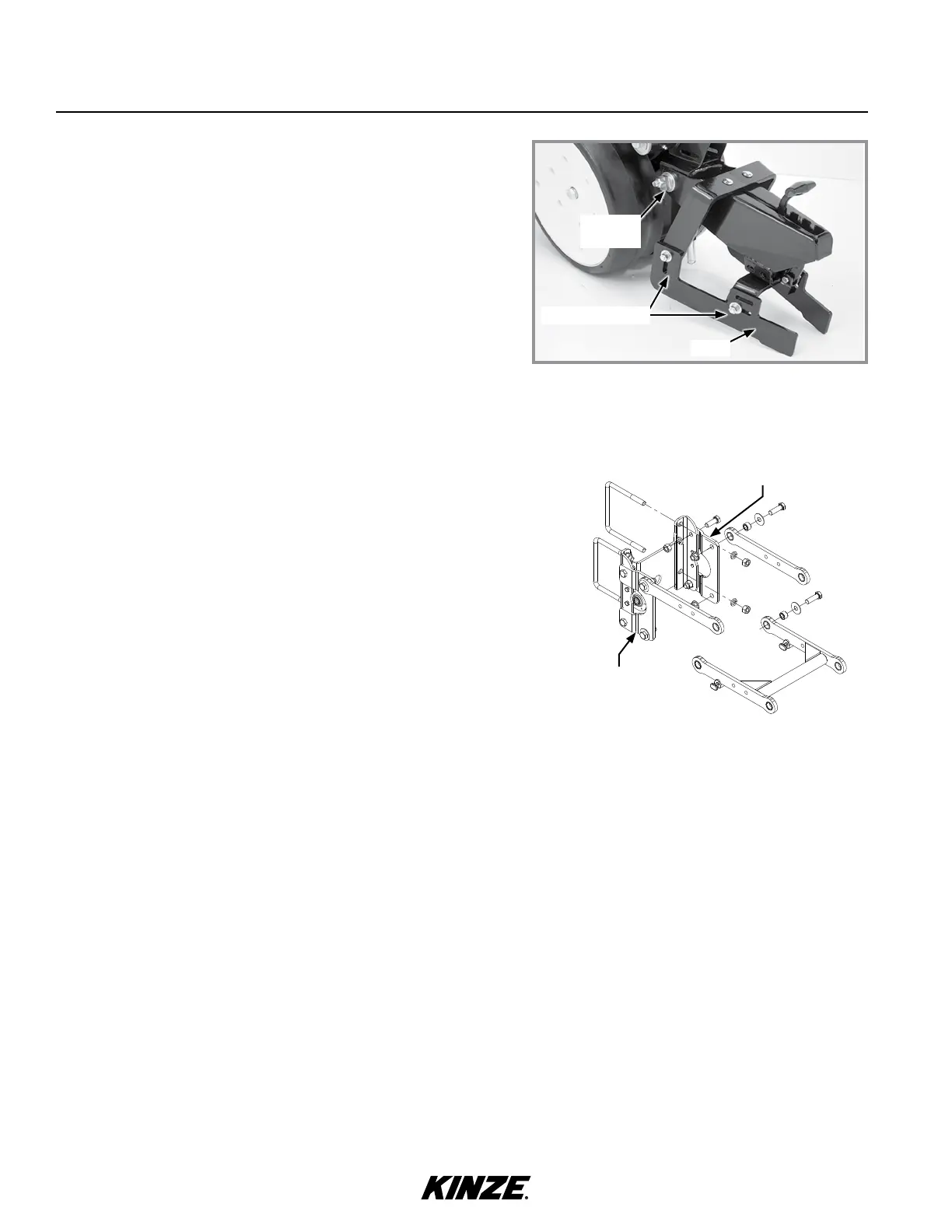

DRAG CLOSING ATTACHMENT
Drag closing attachment
Adjustment slots
Eccentric
bushing
Blade
Row unit extension brackets extend row units rearward 4" (10.1 cm) to
provide clearance for coulter mounted residue wheels and HD single
disc fertilizer openers.
ROW UNIT EXTENSION BRACKETS
Row unit extension brackets
Extension bracket
Extension bracket
