Model 3605M0312-01
07/20 2-21
Machine Operation
Contact wheel drive works the same for mechanical or vacuum planters except for sprocket size. Chain tension
is controlled by a spring-loaded sprocket idler. Planting rate charts in “Rate Chart” section help you select correct
sprockets.
NOTE: Make a field test after each sprocket combination change to be sure you are planting at desired rate.
CONTACT WHEEL DRIVE SPROCKETS
22 tooth, 28 tooth or 44 tooth sprockets at each contact drive wheel can be exchanged with sprockets on storage rod
bolted to wheel module on each side of planter chains.
NOTE: 22, 28 and 44 tooth drive sprockets do NOT apply to all rate charts. Check chart titles to make sure
proper rate chart is selected. DO NOT USE 44 tooth drive sprockets (60 cell soybean discs) with Dry Fertilizer
Package or Liquid Fertilizer Squeeze Pump Package.
MECHANICAL
Seed planting rate charts are based on standard rate drive. Standard rate drive uses a 30 tooth sprocket and No. 40 118
pitch chain on each contact wheel.
Optional half-rate (2 to 1) drive is recommended only when population falls below planting rate charts. Replace 30
tooth sprocket on each contact wheel with a 15 tooth sprocket and shorter No. 40 110 pitch chain. This reduces
planter transmission speed and planting and application rates by approximately 50%.
VACUUM

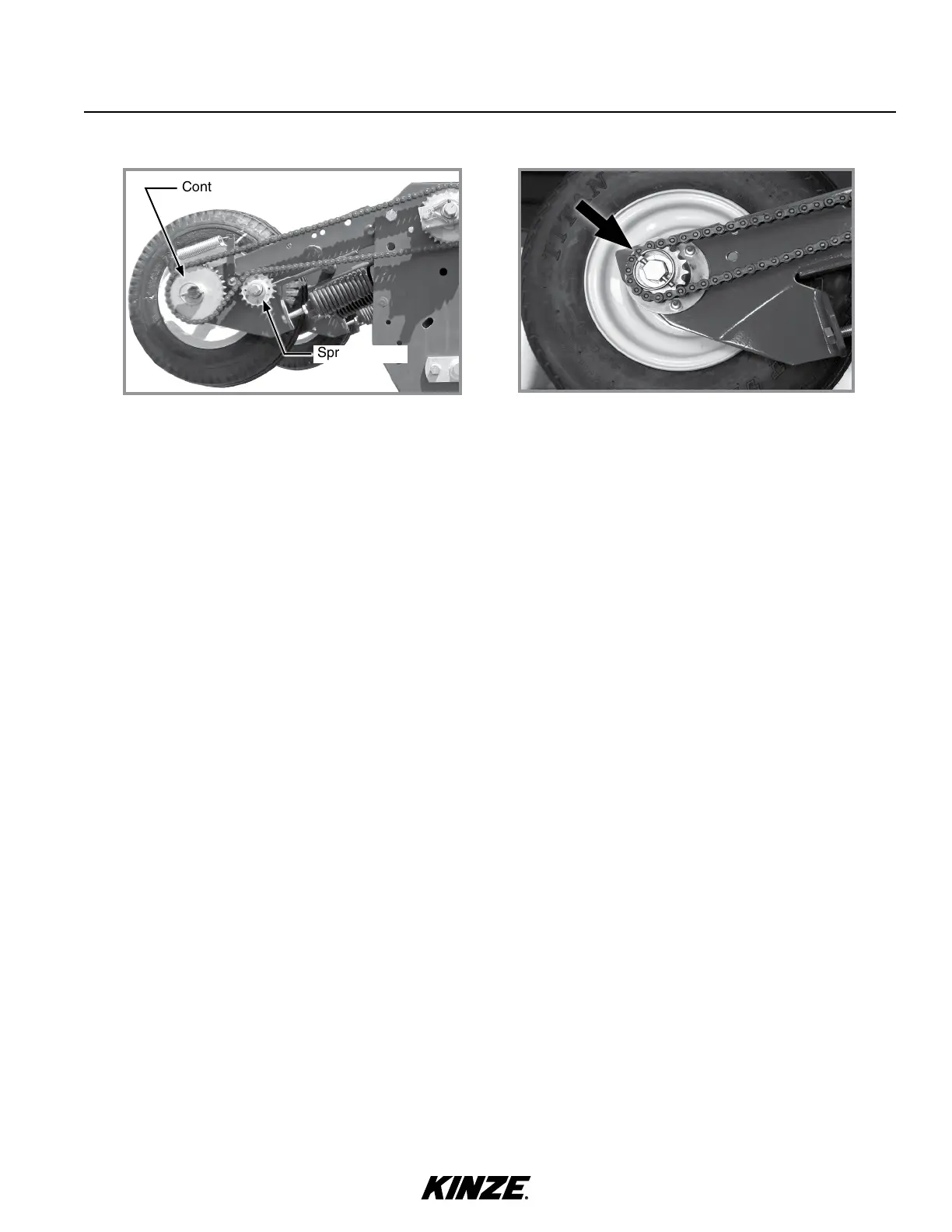

Contact wheel drive Optional half-rate drive sprocket
Sprocket idler
Contact drive wheel sprocket
