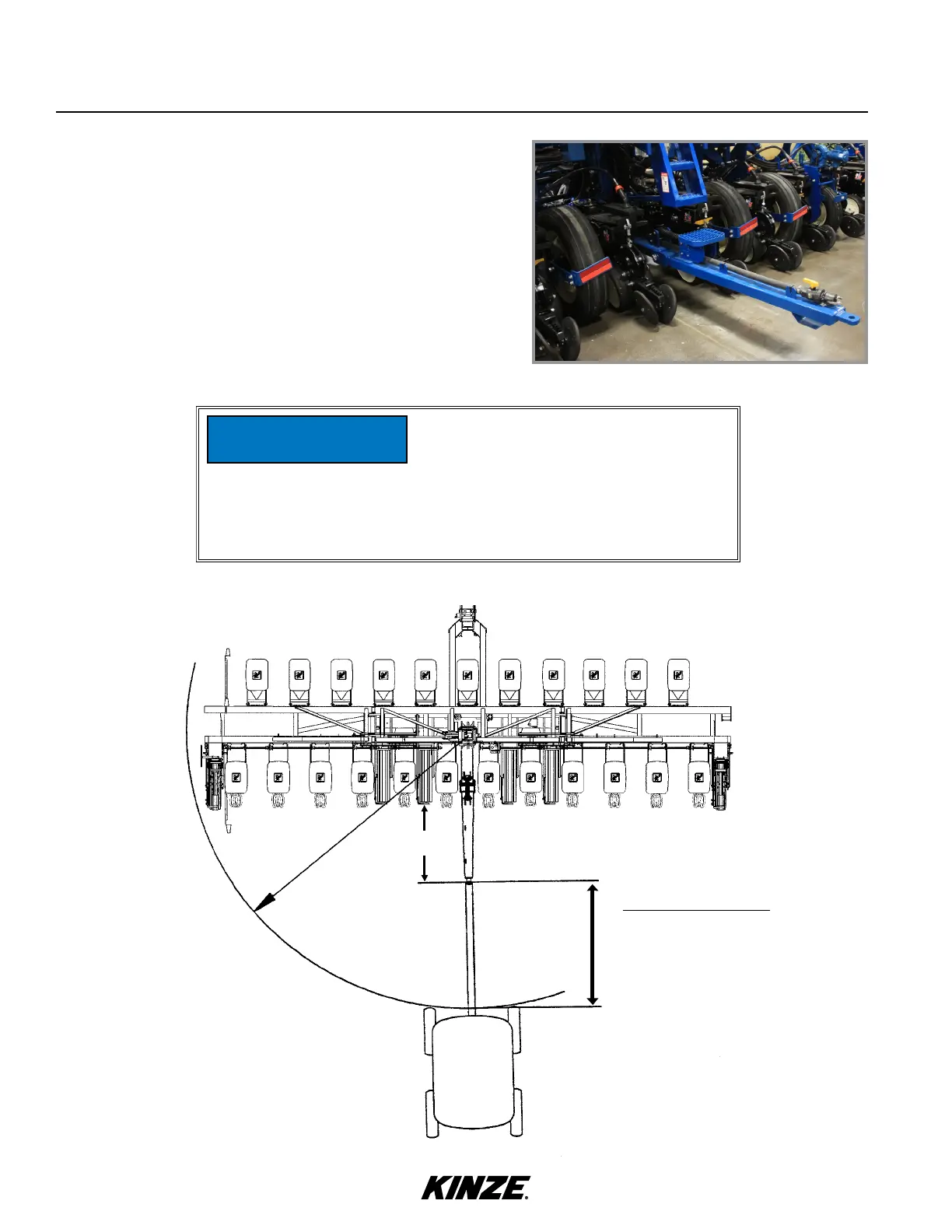

REAR TRAILER HITCH
NOTE: Periodically check feed hose for kinks to prevent restricted delivery rate.
Note minimum tank hitch
length required to allow
planter to be rotated to
transport position.
Minimum Clearance
384 cm 16 Row 70 cm
127 cm
1,893 L
Tank
Rear trailer hitch can tow a 3 or 4 wheel wagon behind planter.
A spring, chain, and mounting bracket supports a 3 cm feed
hose from hitch to piston pump. This extra length or loop is
required to allow for planter to move into transport position
without stretching hose.
Trailer hitch
Rear trailer hitch is designed for use with
piston pump only. Maximum allowable
hitch weight is 200 lb (91 kg). Do not
exceed 6000 lb (2.7 tons) gross towing
weight or the equivalent of a loaded 500
gal (1893 L) tank and running gear or
equipment can be damaged.
