Lubrication and Maintenance

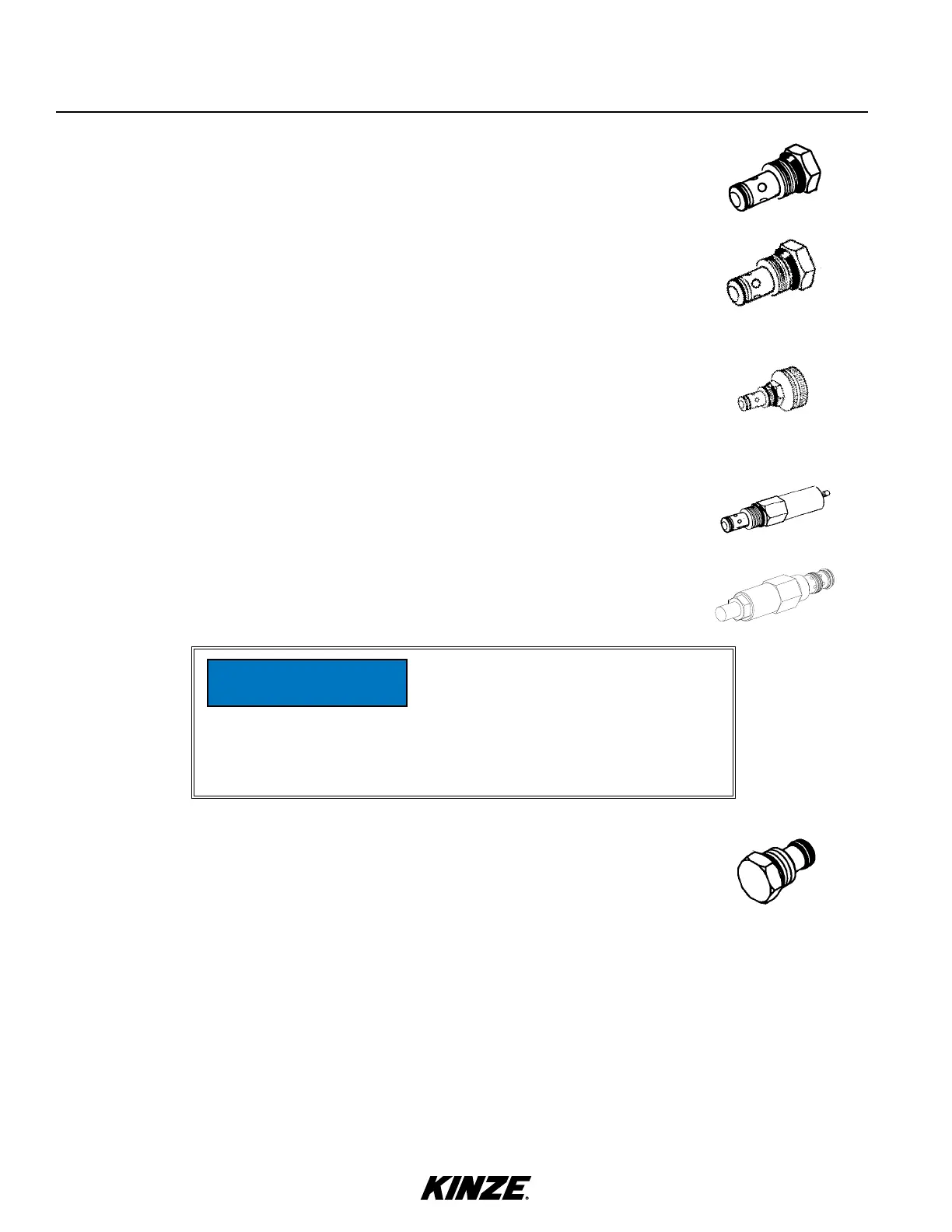

CHECK VALVE (LIFT SYSTEM)
Check valves, located in valve block on right side of center post, trap oil flow in planter’s lift
system to keep toolbar level during field operation. Consult your Kinze Dealer for service.
CHECK VALVE (VACUUM FAN)
Check valve located in valve block below vacuum fan motor assembly operates as a return line
check to prevent vacuum fan motor reverse operation. Remove and inspect valve If it does not
operate properly. Check for foreign material and if O-ring is leaking internally. Replace if defective.
RELIEF VALVE CARTRIDGE
Pressure relief valve located in valve block below vacuum fan motor assembly helps prevent damage
to vacuum fan motor by limiting pressure in the motor case drain line. It is set to open at 35 PSI
(241 kPa). If valve fails to function properly, it should be removed for inspection. Check for foreign
material and contamination on valve and the seating area of valve body. Replace if defective.
FLOW CONTROL VALVE
Flow control valves should be adjusted for row marker raise and lower speed as part of
assembly procedure or upon initial operation. If valve fails to function properly or requires
frequent adjustment, it should be removed for inspection. Check for foreign material and
contamination on valve and seating areas of valve body. Replace defective components.
PRESSURE RELIEF VALVE
If pressure relief valve does not release tongue lock or function properly, remove valve from
valve block and check for foreign material or if O-ring is leaking internally. Replace if defective.
PRESSURE REDUCING RELIEF VALVE
If wings do not properly stay to ground, plumb into butt end of cylinder to test PSI. Proper
setting is 750 PSI (5171 kPa).
Connect hydraulic motor case drain to a
case drain return line with zero pressure
on tractor or hydraulic motor will be
damaged. DO NOT connect hydraulic
motor case drain to SCV outlet. Contact
tractor manufacturer for specific details
on “zero pressure return”.
