Machine Operation

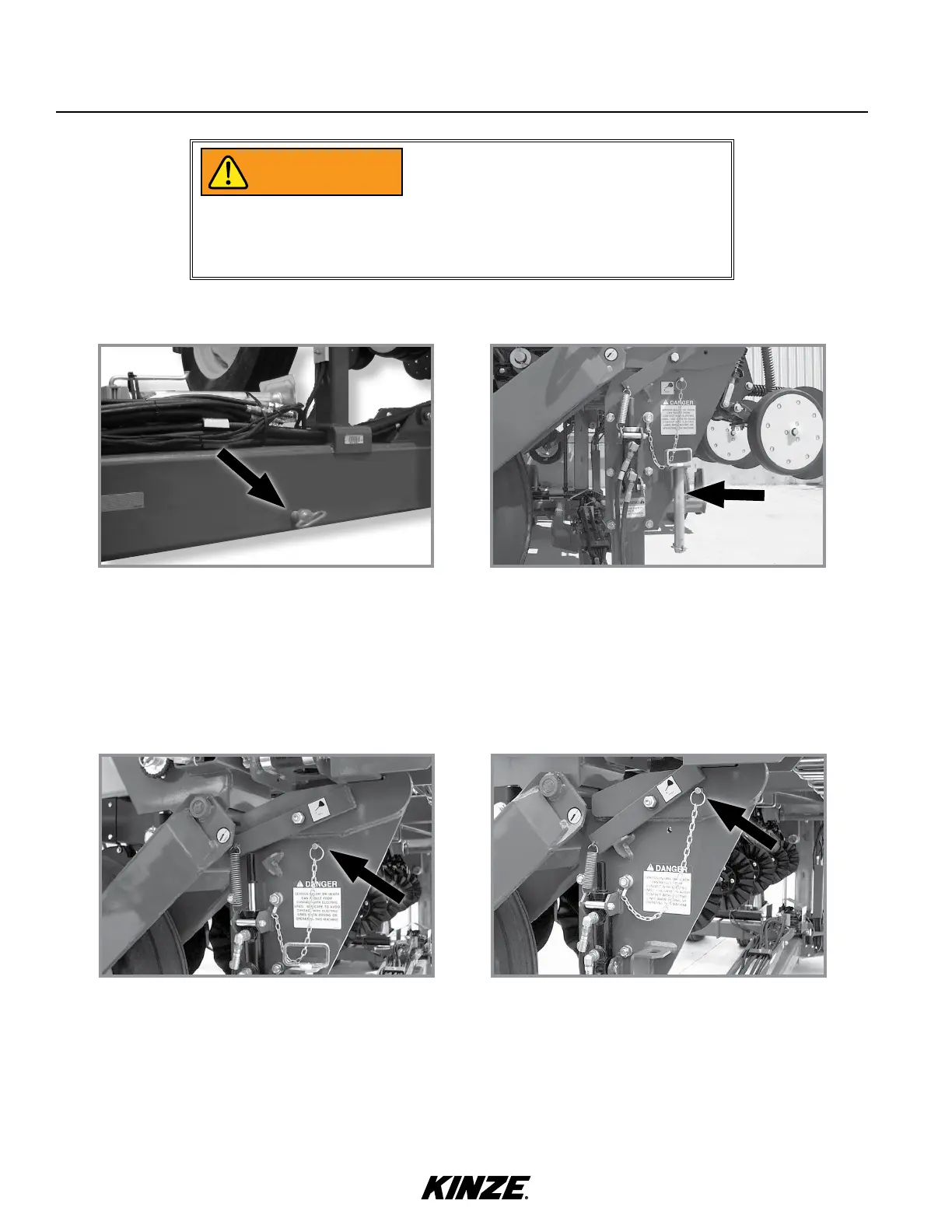

TRANSPORT LATCH LOCKING PIN
TONGUE SAFETY PIN
Tongue safety pin installed for transport Tongue safety pin stored for field operation
Never transport planter without installing transport latch locking pin. Transport latch locking pin prevents latch bar from
disengaging and allowing planter frame to swing away.
Remove transport latch locking pin and store in location provided on latch post for field operation.
Never transport planter without installing tongue safety pin. Tongue safety pin prevents tongue cylinder from retracting
should hydraulic failure occur or a sudden stop be made when transporting planter.
Remove tongue safety pin and store in bracket on transport latch post at center of planter for field operation.
Transport latch locking pin stored for field operation
Transport latch locking pin installed for transport
Uncontrolled movement of equipment
can cause loss of control and could
result in death, serious injury, or damage
to property and equipment. Install
all safety pins before transporting
equipment.
WARNING
