Lubrication and Maintenance
Drain reservoir, clean strainer and change filter annually.
1. Disconnect suction line (hose between reservoir and pump)
from reservoir and drain. To fully drain tank, raise planter to field raised position.
2. Replace filter with good quality 10 micron filter.
3. Fill system with SAE 10W-20 multigrade wide temperature
range transmission hydraulic fluid. Reservoir capacity is
approximately 10 gallons.
4. Start system and run with tractor at idle and fan turned off
for 1-2 minutes. Switch fan to full speed and run with tractor
at idle for 1-2 minutes.
5. Check reservoir fluid level and fill as required. Hydraulic fluid level should be within 1"-2" from top of reservoir after
pump has run and hydraulic hoses have been primed to allow fluid to expand when heated.
6. Bring tractor to PTO speed and adjust flow control to the desired vacuum level using the flow control valve lever.

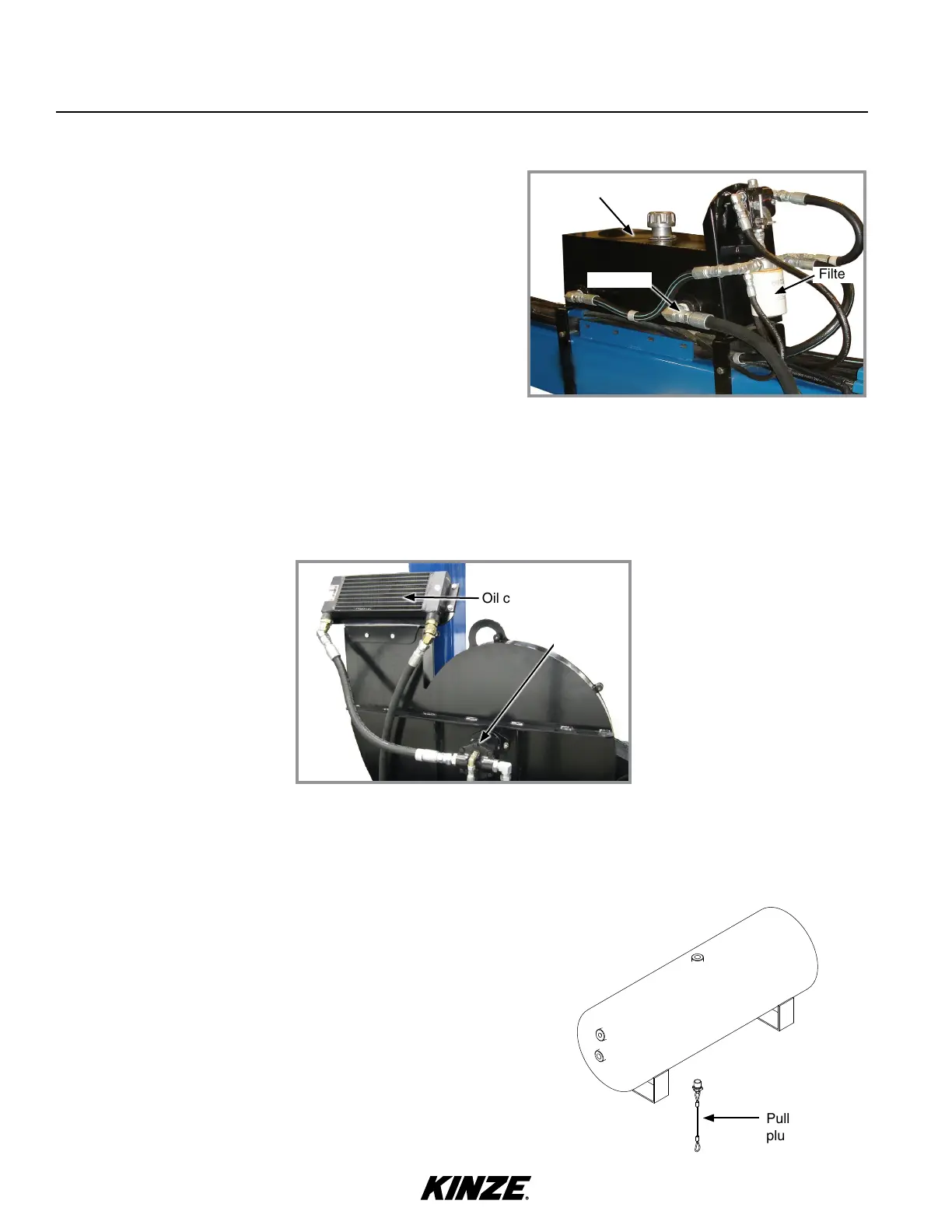

TRACTOR MOUNTED PTO PUMP AND OIL COOLER OPTION
Filter
Hydraulic reservoir
Strainer
Reservoir
Vacuum fan assembly
Oil cooler
Hydraulic
motor
NOTE: Periodically check and clean oil cooler mounted on vacuum fan housing.
Moisture should be drained daily from the tank. Tank should be
drained completely for storage.
To drain tank, locate drain plug on the bottom of tank. Stand off
to the side of tank and pull cable attached to drain.
NOTE: If mositure is not drained from tank rust particles will
form inside tank.
PNEUMATIC DOWN PRESSURE AIR COMPRESSOR TANK
Pull drain
plug
