Machine Operation
Two solenoid valves on valve block at rear R.H. side of center frame, and a three position selector switch on control
console permit operator to lower or raise desired row marker.
See “Row Marker Speed Adjustment”.
1. Select which row marker to lower on control console.
2. Operate hydraulic control to lower row marker.
3. Move control switch to other side to operate opposite row marker.
4. Raise row marker at end of field using hydraulic control.
5. After turn, using the hydraulic control, lower the pre-selected row marker.
6. Continue to follow this procedure.
NOTE: Both row markers can be lowered by operating switch in each position and hydraulic control twice.
Row markers raise simultaneously with hydraulic control in raise position.
If electrical system does not operate properly:
• Check fuse.
• Check wiring connections.
• Check control switch.
• Check solenoid. SOLENOID HOUSING IS MAGNETIZED WHEN ENERGIZED.
ROW MARKER OPERATION

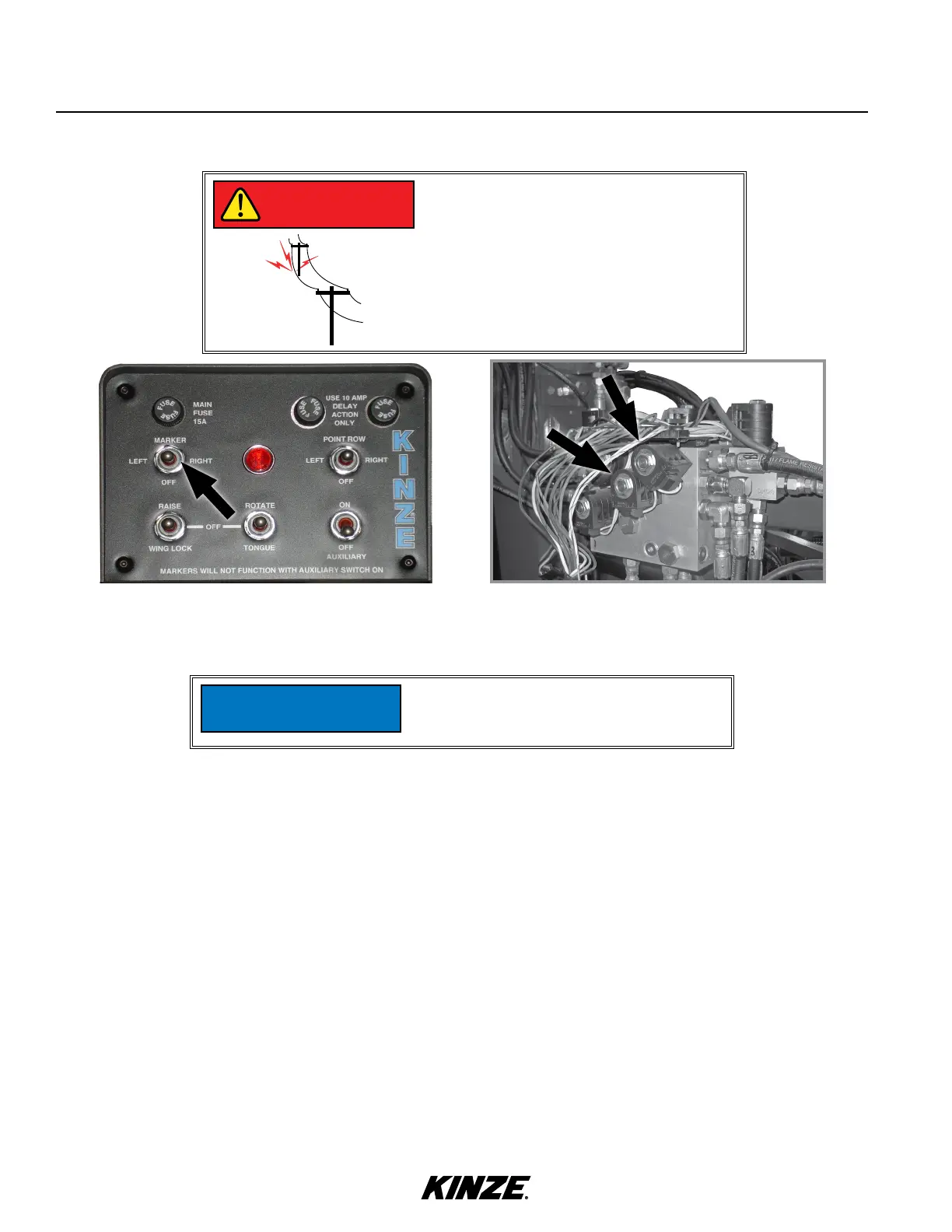

Row marker solenoid valves (Cover removed)
Marker switch
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
Marker position switch must be OFF
when planter is not in use or tractor
battery will drain.
NOTICE
