Model 3605M0312-01
07/20 2-29
Machine Operation
FIELD OPERATION
There are two raised positions on planter. Transport position
is when the planter is fully raised. Raised field position is
when planter wing cylinders are fully extended and center lift
cylinders are at mid-stroke. In “raised field position” row units
are approximately 35.5 cm off ground. This position is used in
making turns or passing over waterways during field operation.
An oil bypass solenoid is located on top side of valve blocks on
rear R.H. side of center frame. This solenoid is not energized
in raised field position so wing cylinders cannot bypass oil
preventing planter from raising any higher.

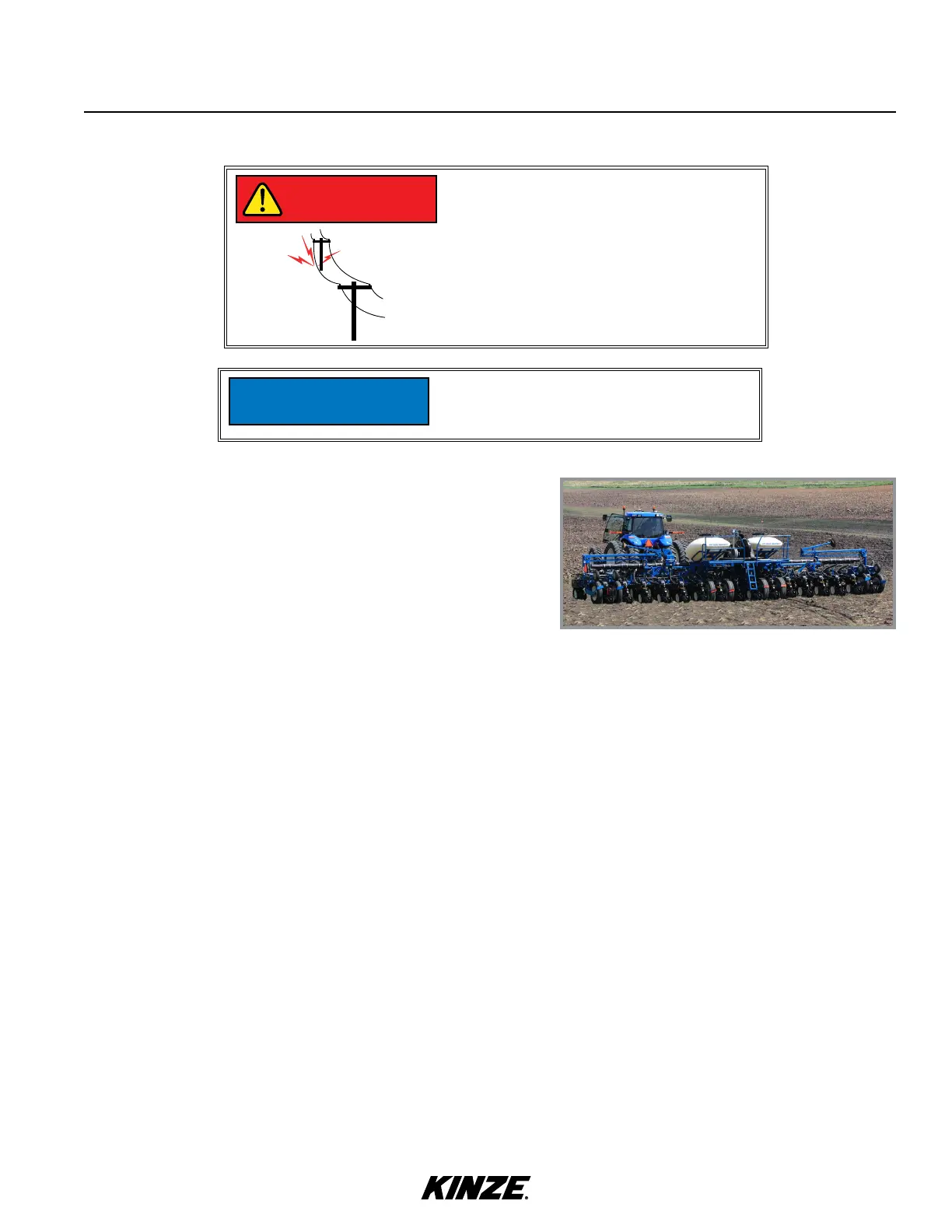

Raised field position
PLANTING SPEED
Planters are designed to operate in a speed range of 3 to 13 km/h. Higher ground speeds generally cause more variation
in seed spacing. Speeds above 9 km/h are typically not recommended. See “Rate Charts”
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
Raise planter out of ground when making
sharp turns or backing up or equipment
damage may result.
NOTICE
