Model 3605M0312-01
07/20 2-47
Machine Operation
NOTE: Place row markers in transport position and remove all pressure from hydraulic system.
Remove cover from valve block on rear center frame of planter. Remove plugs from ports V5 and V6 and install
solenoid valve assemblies following installation instruction supplied with each kit. Connect power to solenoid
assemblies to orange/black wire located in wiring harness connection to L.H. side of valve block.
Remove plugs from ¾"-16 O-ring ports A8 and B8 on R.H. side of valve block or ports A9 and B9 on L.H. side of valve
block. Connect customer supplied hydraulic hoses.
Refer to “Hydraulic System Schematics” and “Electrical Wiring Schematics” in Lubrication and Maintenance section of
this manual for additional information.
NOTE: Auxiliary switch ON disables all other control console switches.
Before operating auxiliary system make sure marker switch on control console is OFF. Move auxiliary switch to ON.
Operate hydraulic control (marker/folding functions) to engage auxiliary system.

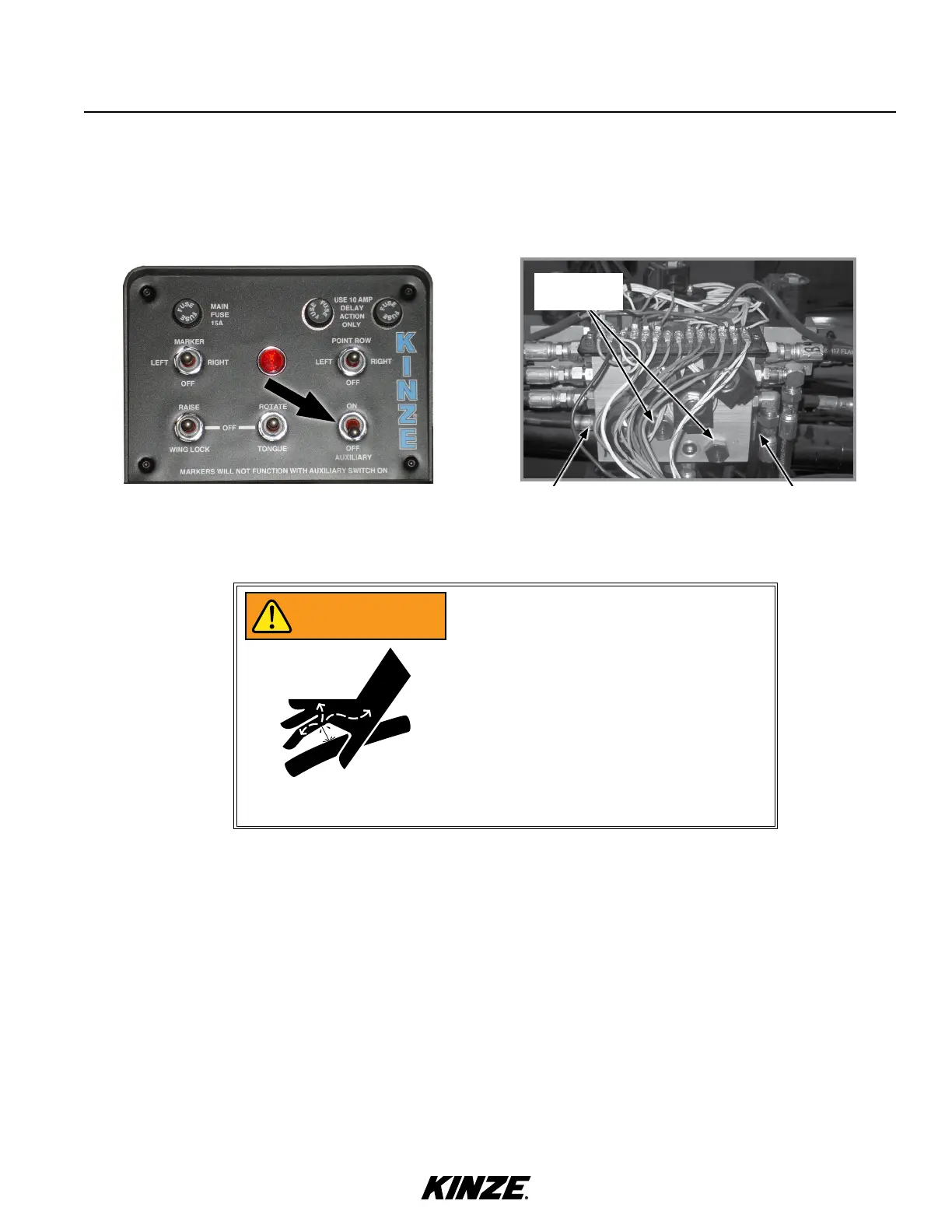

AUXILIARY HYDRAULIC OPTION
A customer-supplied auxiliary hydraulic option provides 38 L/min of oil flow at rear of planter for powering fertilizer
attachments, bulk seed handling equipment, etc. Two customer-supplied solenoid valve kits (G1K275) are required to
activate auxiliary hydraulic option with control console auxiliary switch.
Valve block on rear center frame (Cover removed)
Hydraulic ports
A8 and B8
Hydraulic ports
A9 and B9
Auxiliary switch
Valve ports
V5 and V6
Pressurized hydraulic fluid can penetrate
body tissue and result in death, serious
infection, or other injuries. Fluid injected
under skin must be IMMEDIATELY
removed by a surgeon familiar with this
type of injury. Make sure connections
are tight and hoses and fittings are
not damaged before applying system
pressure. Leaks can be invisible. Keep
away from suspected leaks. Relieve
pressure before searching for leaks or
performing any system maintenance.
WARNING
