Model 3605M0312-01
07/20 2-9
Machine Operation

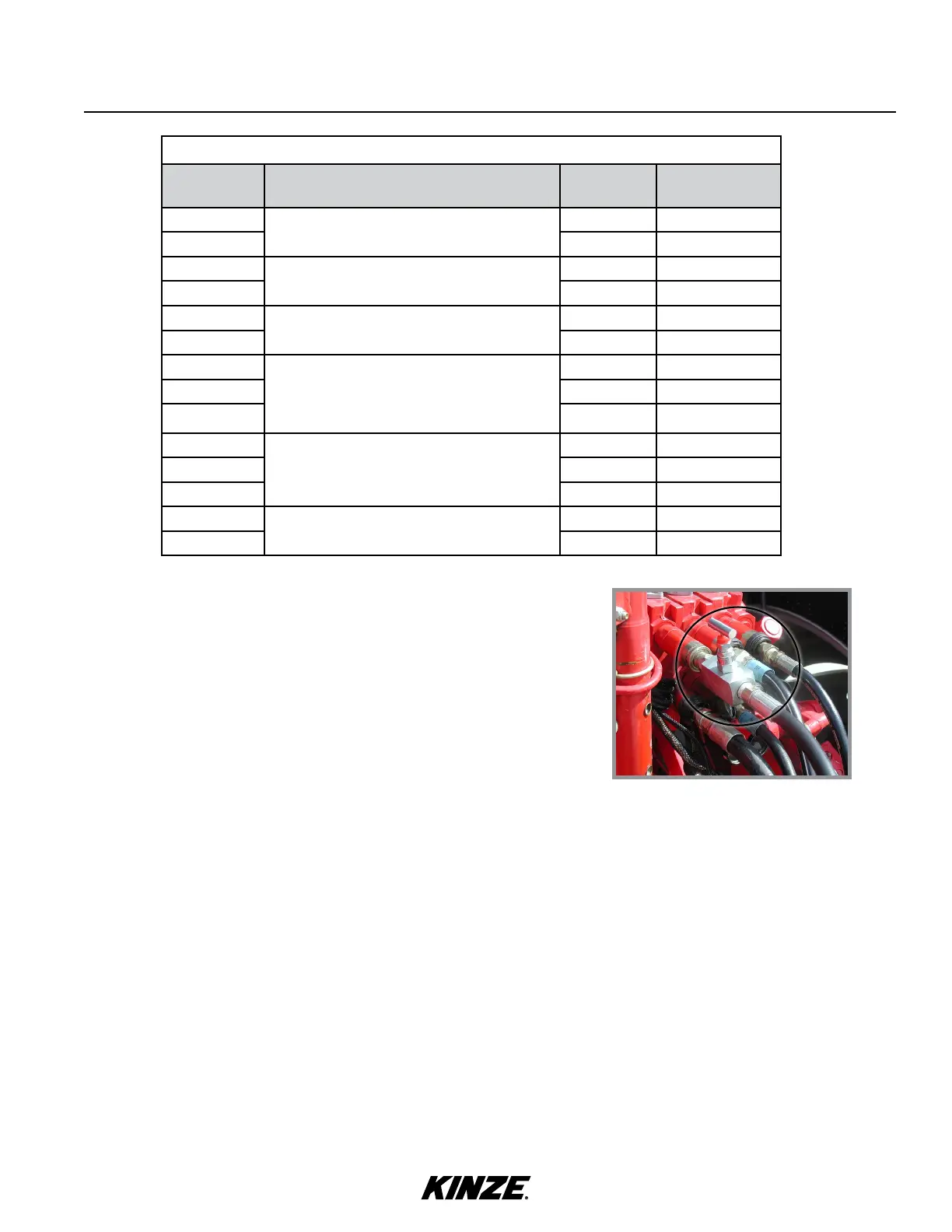

G1K426 needle valve kit
For tractors not equipped with a method for finite adjustment of
hydraulic flow, Flow Control Needle Valve Kit G1K426 is available
from Kinze Repair Parts through your Kinze Dealer.
NOTE: Set adjustable flow outlet (SCV) to full flow position.
PLANTER TO TRACTOR HYDRAULIC CONNECTIONS
Color/Label Machine
Function
Hose Size Function
Red AA
Field Lift
½" Pressure
Red BB ½" Return
Blue AA
Planter Fold & Row Marker
" Return
Blue BB " Pressure
Black RR
Power Pack (Blue Drive)
½" Return
Black PP " Pressure
Green RR
Vacuum Fan
¾" Return
Green PP ½" Pressure
Orange CD
" Case Drain
Yellow RR
Bulk Fill System Pressure Fan
¾" Motor Return
Yellow PP ½" Pressure
Orange CD
" Case Drain
Purple RR
True Depth
” Return
Purple PP ½” Pressure
NOTE: Not to be used in Blue Drive applications.
