Machine Operation
5. Hold control console “RAISE/WING LOCK” switch in
“RAISE” and operate hydraulic control until two center lift
cylinders are fully extended and safety hook at top of center
section rotates into locking position.
6. Lower planter onto safety hook using hydraulic control.

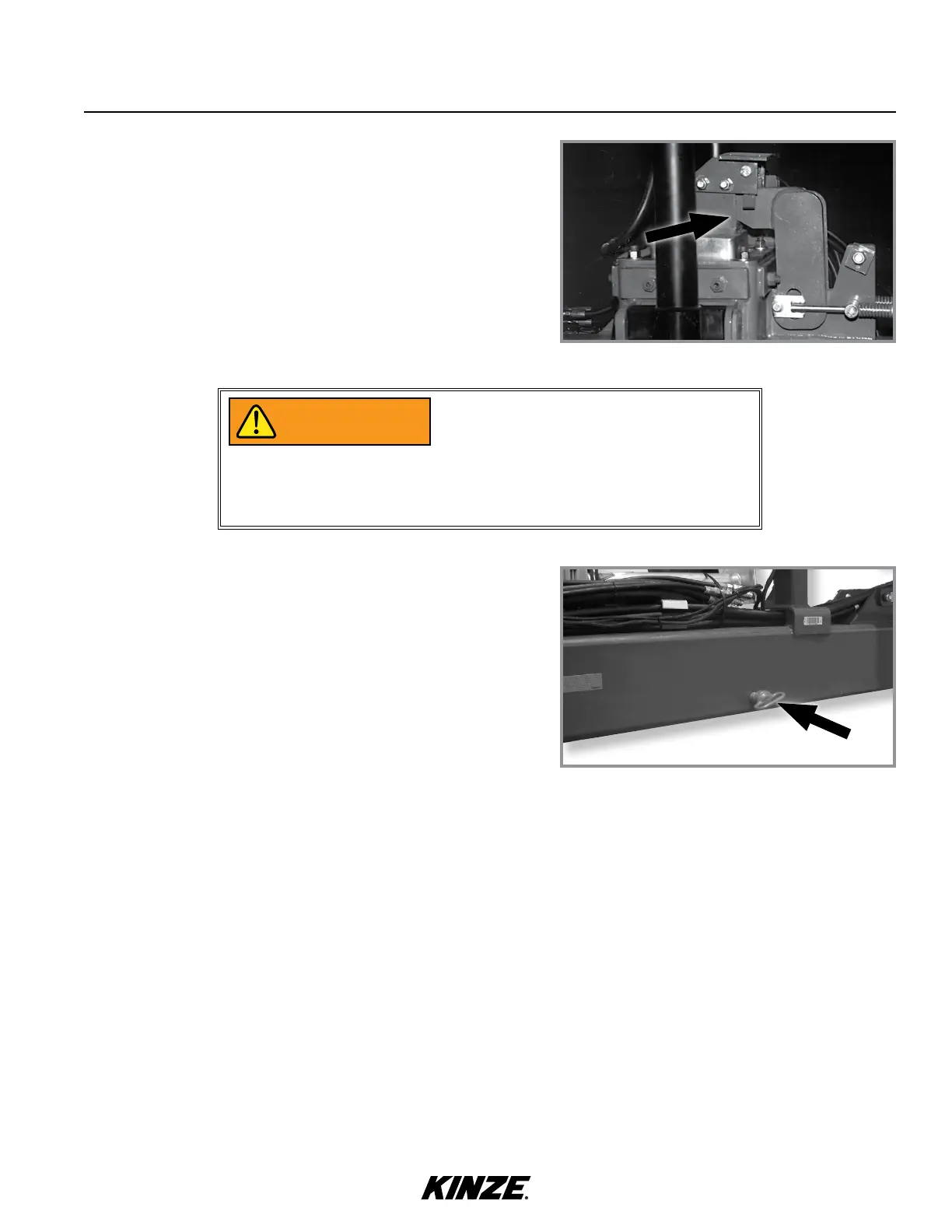

Center section safety hook
7. Hold control console “ROTATE/TONGUE” switch in
“ROTATE” and operate hydraulic control to rotate planter
until transport latch is engaged.
8. Install tongue safety pin.
Tongue safety pin
Uncontrolled movement of equipment
can cause loss of control and could
result in death, serious injury, or damage
to property and equipment. Install
all safety pins before transporting
equipment.
