Row Unit Operation
To Lock Row Unit in Raised Position:
1. Set row unit down pressure springs to minimum setting.
2. Lower the planter to the planting position.
3. Empty seed hoppers.
Note: If planter is equipped with True Depth, enable Lift Assist Mode with the True Depth Display.
See M0288 - Kinze Blue Vantage Manual.
Turning Lift Assist on or off may cause
the planter to move or row units to fall
causing injury or death.
WARNING

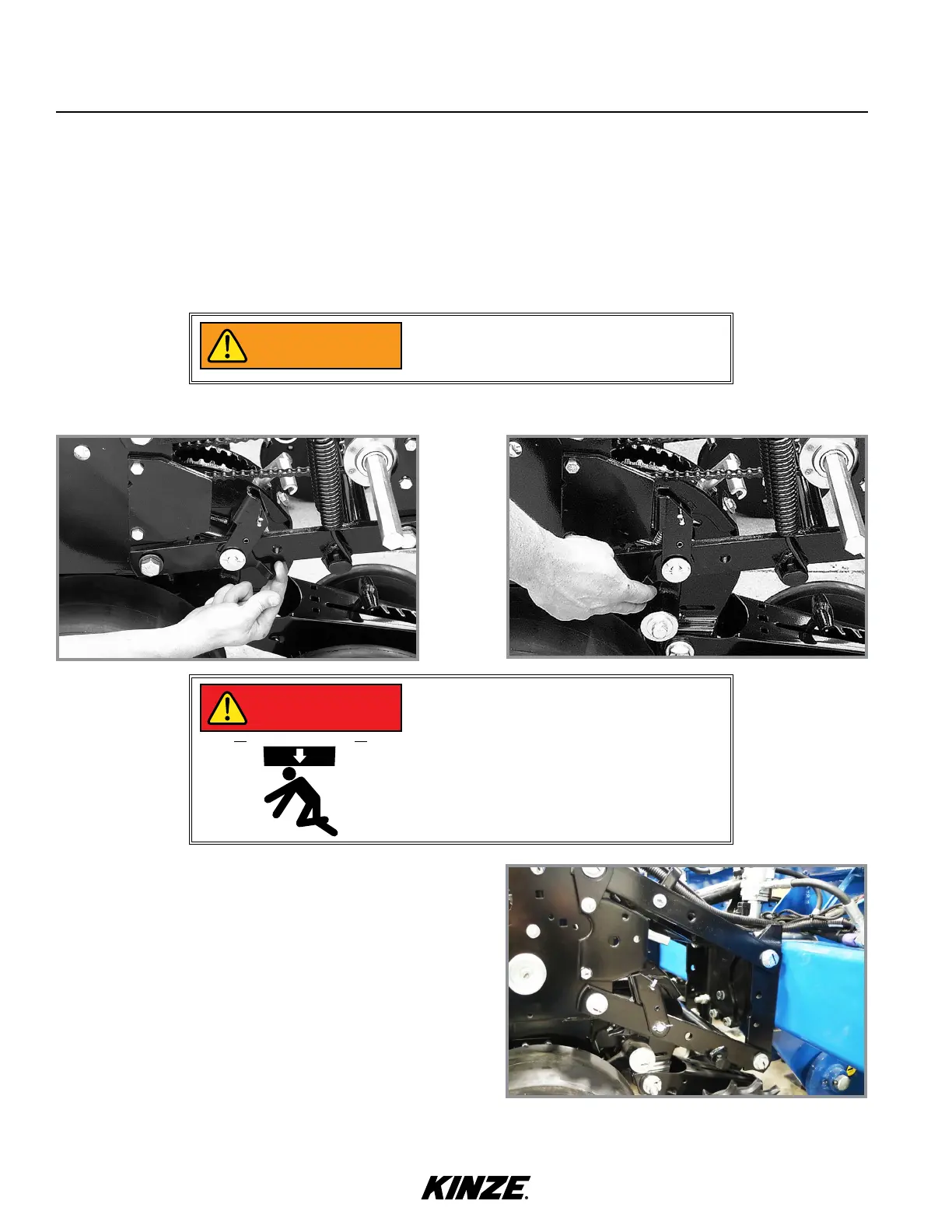

4. On each push row unit lockup, flip the spring tab forward.
Uncontrolled movement of equipment
can cause loss of control and could
result in death, serious injury, or damage
to property and equipment. Keep clear of
row unit while lowering it to the ground.
DANGER
5. Using the lift lever, raise the push row unit to allow the
spring loaded lockups to snap into locked position under
the row unit stops.
6. Ensure that the row unit is lowered onto the stops.
7. Repeat Steps 4 through 6 on remaining push row units.
