Chapter 7 CVS-842/852/843
Functional Registration Operation Manual 
7-2 93132692-00

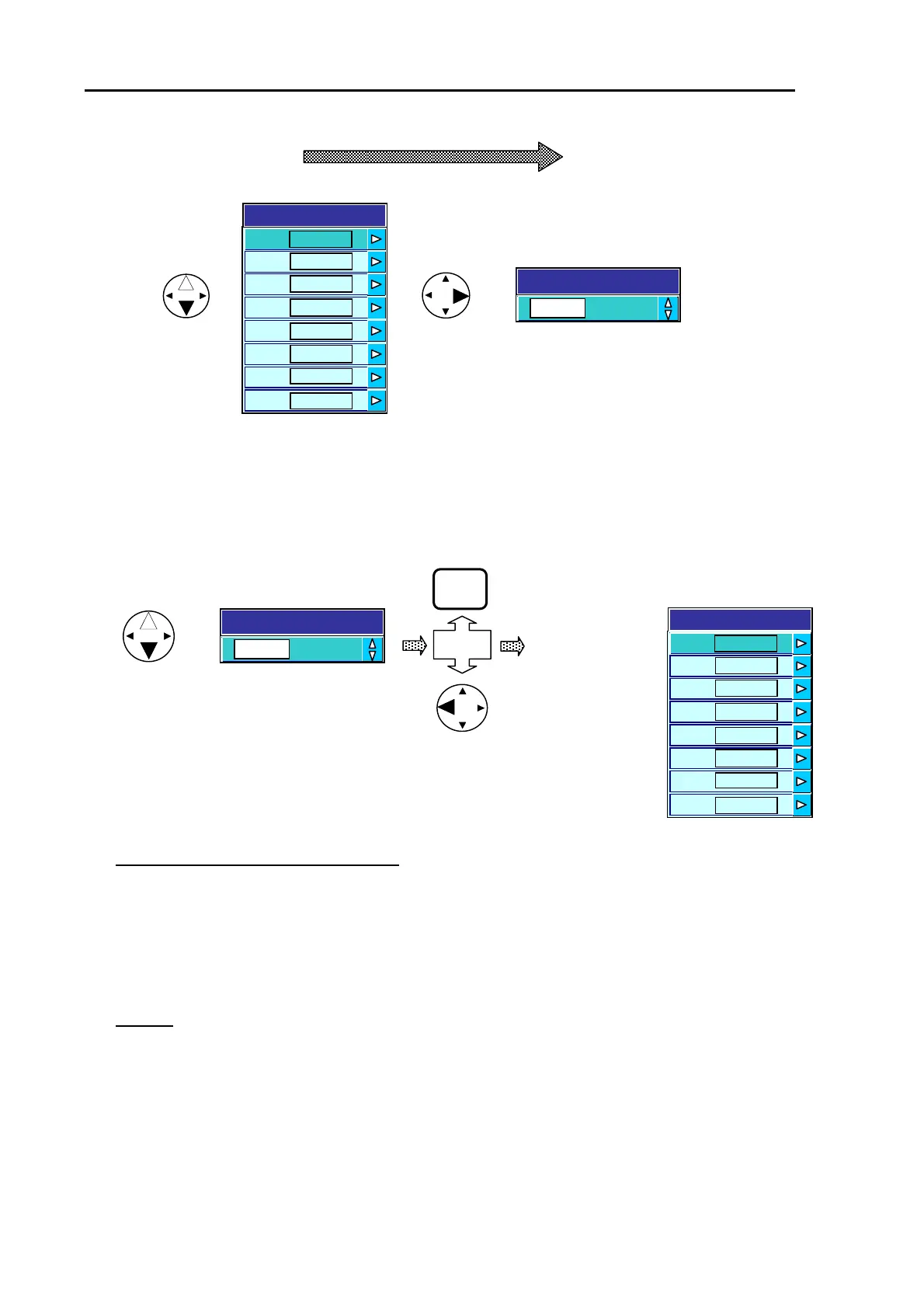

Figure 7.2 Depth range registration (2)
(6) Press the up or down arrow key to select the depth range.
(7) Press the MENU or left arrow key to return to Depth Range Preset sub menu for other depth
range registeration. The registered value will be shown in the DEPTH RANGE REGISTERED
menu.
Figure 7.3 Depth range registration (3)
Depth range list
(1)
U For meter, hiro, fathom, Italian fathom
(Applicablt to all models)
2.5,5,7.5,10,15,20,25,30,35,40,45,50,55,60,65,70,75,80,85,90,95,100,110,120,130,140,150,160,170,
180,190,200,210,220,230,240,250,260,280,290,300,310,320,330,340,350,360,370,380,390,400,450,
500,550,600,650,700,750,800,850,900,950,1000,1100,1200
(Additional ranges for 3kW/5kW models)
1300,1400,1500,1600,1700,1800,1900,2000,2100,2200,2300,2400,2500,2600,2700,2800,2900,3000
(2)
U For feet
(Applicable to all models)
20,40,60,80,100,120,140,160,180,200,220,240,260,280,300,320,340,360,380,400,440,480,520,560,
600,640,680,720,760,800,840,880,920,960,1000,1040,1080,1120,1160,1200,1240,1280,1320,1360,
1400,1440,1480,1520,1560,1600,1800,2000,2200,2400,2600,2800,3000,3200,3400,3600,3800,4000
(Additional ranges for 3kW/5kW models)
4200,4400,4600,4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,8000
