MDC-2200/2500 Series Chapter 4 Menu operations
0093125002-05 4-47
Transmission is suppressed when value 0 second is specified.
(* [TLL] is activated when [TLL OUT] described in the next is set to ATA.)
TLL OUT
This is used to select the output data of TLL format.
Setting value : ATA, MARK, TARGET
ATA : The target acquisition data of ATA is output by TLL format. (Output interval depends on the setting
value at (6))
MARK : When the function key assigned to “EVENT CURSOR” or “EVENT OWN” is pressed, the mark
positioning data is output by TLL format.
TARGET : When the function key assigned to “TLL OUT” is pressed, the cursor positioning data is
output by TLL format.
(7) Baud rate
Set up baud rate of each input/output port according to the connected sensor.
Baud rate is selected from 4800, 9600, 19200 and 38400.

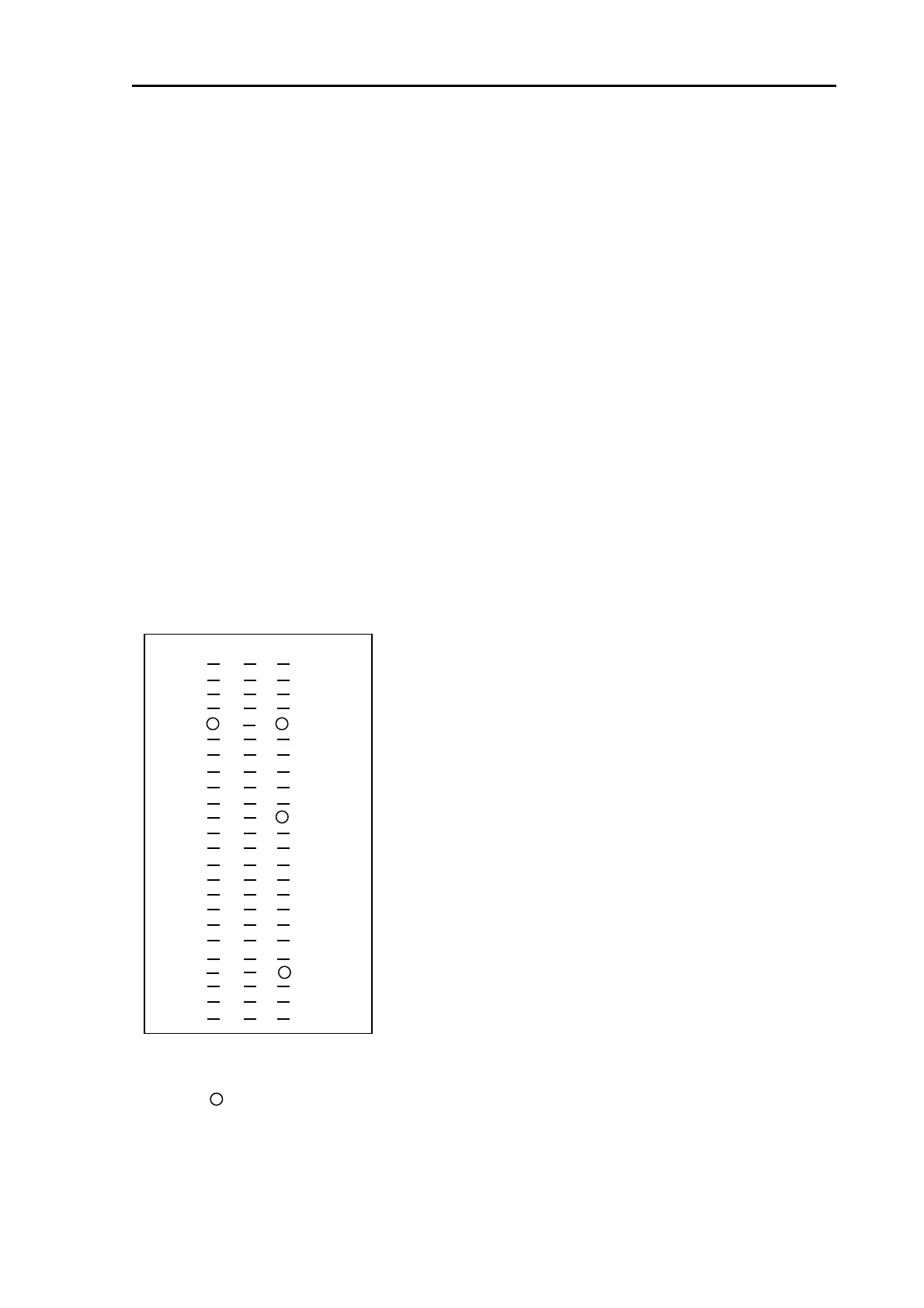

(8) Input
Confirmation of input signal of serial input connector (J4, J5, J6) and selection of input port.
─ denotes no signal.
denotes signal input is exist.
ALL denotes every input port signal is valid.
GGA signal denotes signal input from port J4 and J6.
It also denotes GGA signal is used only from J6 port.
J4 J5 J6
BWC ALL
DBT ALL
DPT ALL
DTM ALL
GGA
J6
GLC ALL
GLL ALL
GNS ALL
HDG ALL
HDM ALL
HDT
ALL
MTW ALL
RMA ALL
RMB ALL
RMC ALL
RTE ALL
THS ALL
VBW ALL
VDR ALL
VHW ALL
VTG
ALL
WPL ALL
XTE ALL
ZDA ALL
