MDC-2200/2500 Series Chapter 4 Menu operations
0093125002-05 4-35

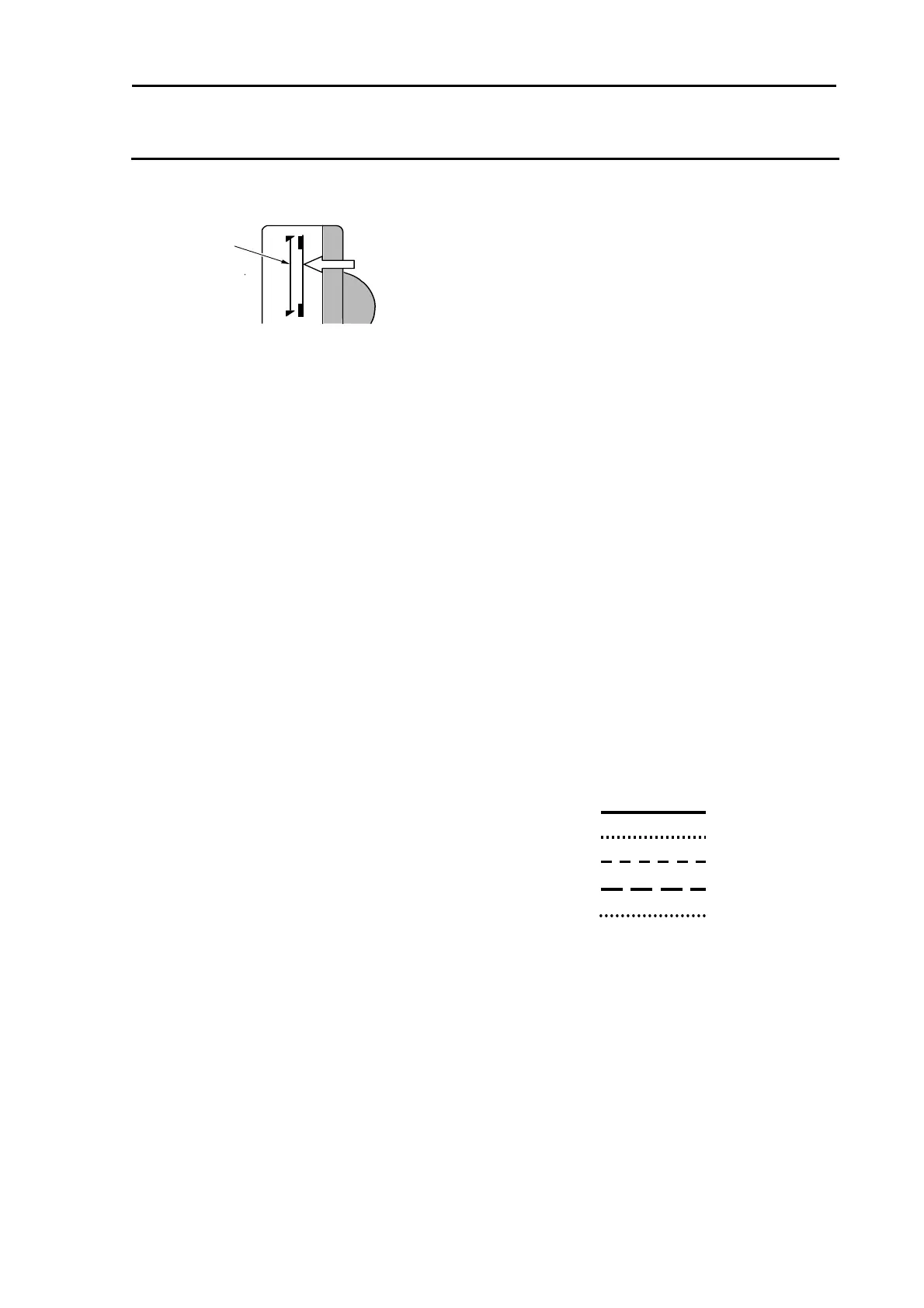

Chart card removal
Slide card upward by pressing, then card can be removed easily. (for MDC-2200)
Slide card to the left by pressing, then card can be removed easily. (for MDC-2500)
C-MA P
chart card
Slide to left
(2) Setup own ship track, ATA target track, and AIS target track
This device provides functions to record own ship track, ATA target track, and AIS target track on the
display.
Memory up to 30 tracks is provided and each max memory is 1000.
・ These tracks are shown on the displayed during recording.
・These tracks are displayed even exceeding maximum memory points in case of same range (without
changing the range).
Set up each memory number (1 to 30) for using track record function.
OFF: No memory and no display
DISP: Display only
OWN: Own ship track memory and display
ATA: ATA target track memory and display
AIS: AIS target track memory and display
Trail display color and shape are as follows.
How to set own ship track
1 Select [CHART] => [PAST CRS 1 to 30] => [OWN], then press [ENT] key.
2 To discontinue memory, [OFF] or [DISP] is selected.
How to set ATA target track
1 Select [CHART] => [PAST CRS 1 to 30] => [ATA], then press [ENT] key.
2 Move cross cursor using [Joystick] to lay on the target to be memorized, and press [ENT] key.
3 To discontinue memory, move cross cursor using [Joystick] to lay on the target, and press [ENT]
key. Or [OFF] or [DISP] is selected.
BLUE
1
2
3
4
5
PINK
6
7
8
9
10
RED
11
12
13
14
15
GREEN
16
17
18
19
20
ORANGE
21
22
23
24
25
BROWN
26
27
28
29
30
