Chapter 3 Basic operation MDC-2200/2500 Series
0093125002-04 3-12

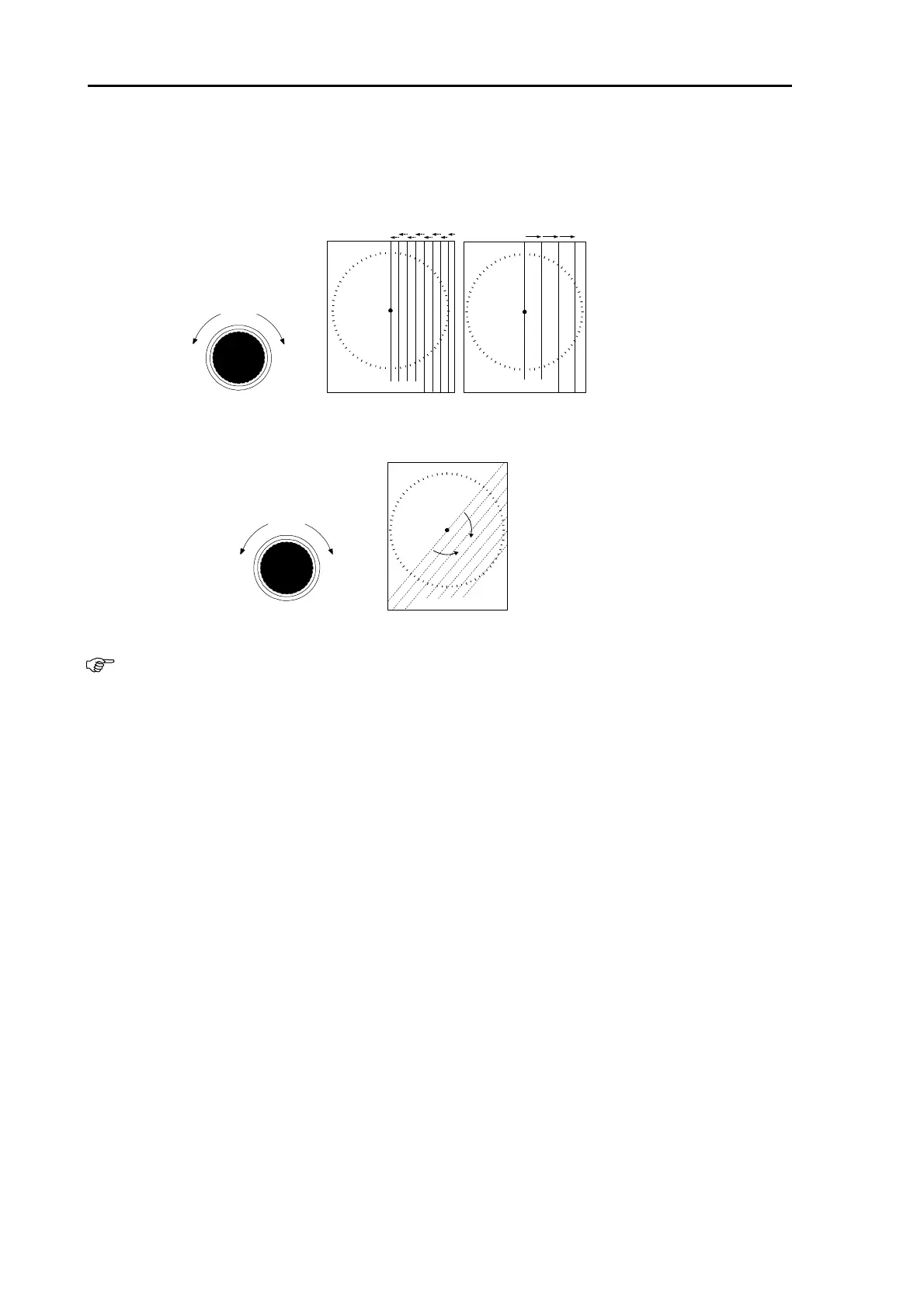

2 The interval between lines can be varied by rotating [VRM] knob.
Though the distance may be changed freely, the setting of the interval of [VRM] can only be
changed in [NORMAL] mode for the basic number of lines.
Increase of
ditance
Decrease of
distance
VRM knob
Decrease of distance
Increase of distanc
PI
000.0° 2.500NM
PI RE L PI
000.0° 5.000NM
PI RE L
Rotate the [EBL] knob to change bearing.
ClockwiseCounter clockwise
EBL knob
PI
040.0° 3.000NM
PI RE L
Refer to “Measure distance and bearing between two points (Offset)” (page 3-13) for offsetting
the center of PI to optional position (cross cursor position).
