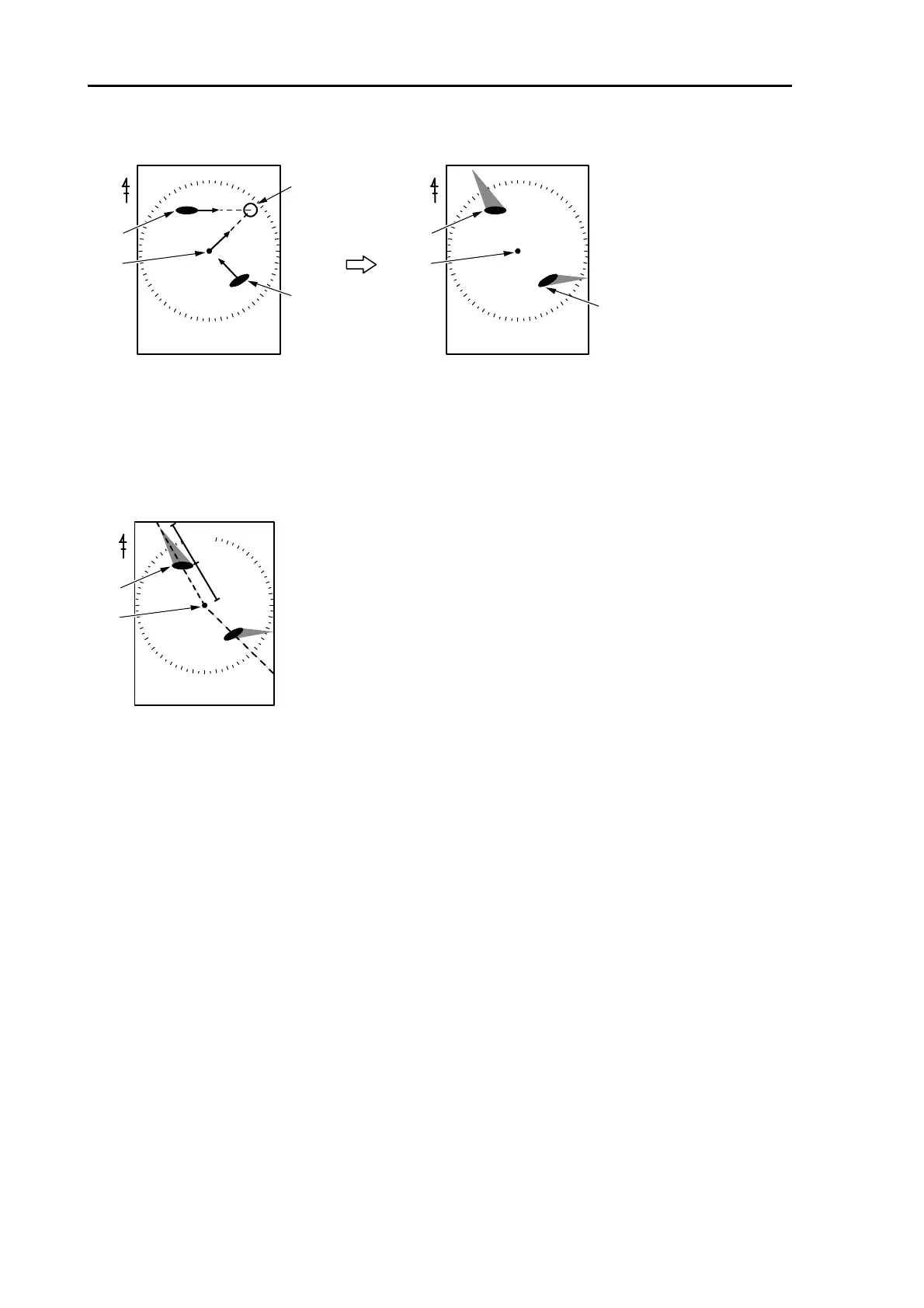

Ships relative trailsCourse and speed of a real ship
N
Other
ship 1
Own
ship
< Display mode[N UP RM(R)] >
Two ships on a
collision course
N
Other
ship 1
Own
ship
Other ship 2
Other ship 2
Other ship 1 with its trail overlapped with EBL is a dangerous ship while other ship 2 is not.
Trail time is 6 min and trail length is equal to distance between own ship and other ship 1, it means that
they will collide after 6 min.
< Display mode[N UP RM(R)] >
N
Other
ship 1
Own
ship
6min
6min
Prospect of collision after 6 min.
True trail (T)
Display trail of moving target with its course and speed independently from own ship’s movement.
It is used to monitor course and speed of the target.
Fixed target such as land etc. is not displayed.
Trails of moving objects, own ship, other ship 1, other ship 2 are displayed respectively in the trails
moved according to each speed.
Land is not displayed as it doesn’t move.
