General Guidelines for Custom Configurations:
Outlet 1 is always recommended to be the primary showerhead. Custom mode will allow the user to select a
different port as the primary, but it is not recommended.
When cycling during massage functions, the body sprays/watertiles will cycle from Outlet 1 to Outlet 6,
regardless of which port is designated as the primary outlet.
The installer must determine the water outlet cycling order for the“ Single” massage function and plumb
each water outlet accordingly.
Use the above diagrams to draw in the components for your custom shower.
Draw lines from the valve to each component as your shower is plumbed.
NOTE: Only water outlets designated as body sprays or watertiles will be allowed to cycle. Any outlets
with 2 fittings, such as 2 Body Sprays or 2 WaterTiles will not cycle. Also any instance where watertiles
and body sprays are used in the same configuration, only the body sprays will cycle.
Available Massage Options
•
Single
•
Wave
•
Random
12 34 56
CH
12 34 56CH

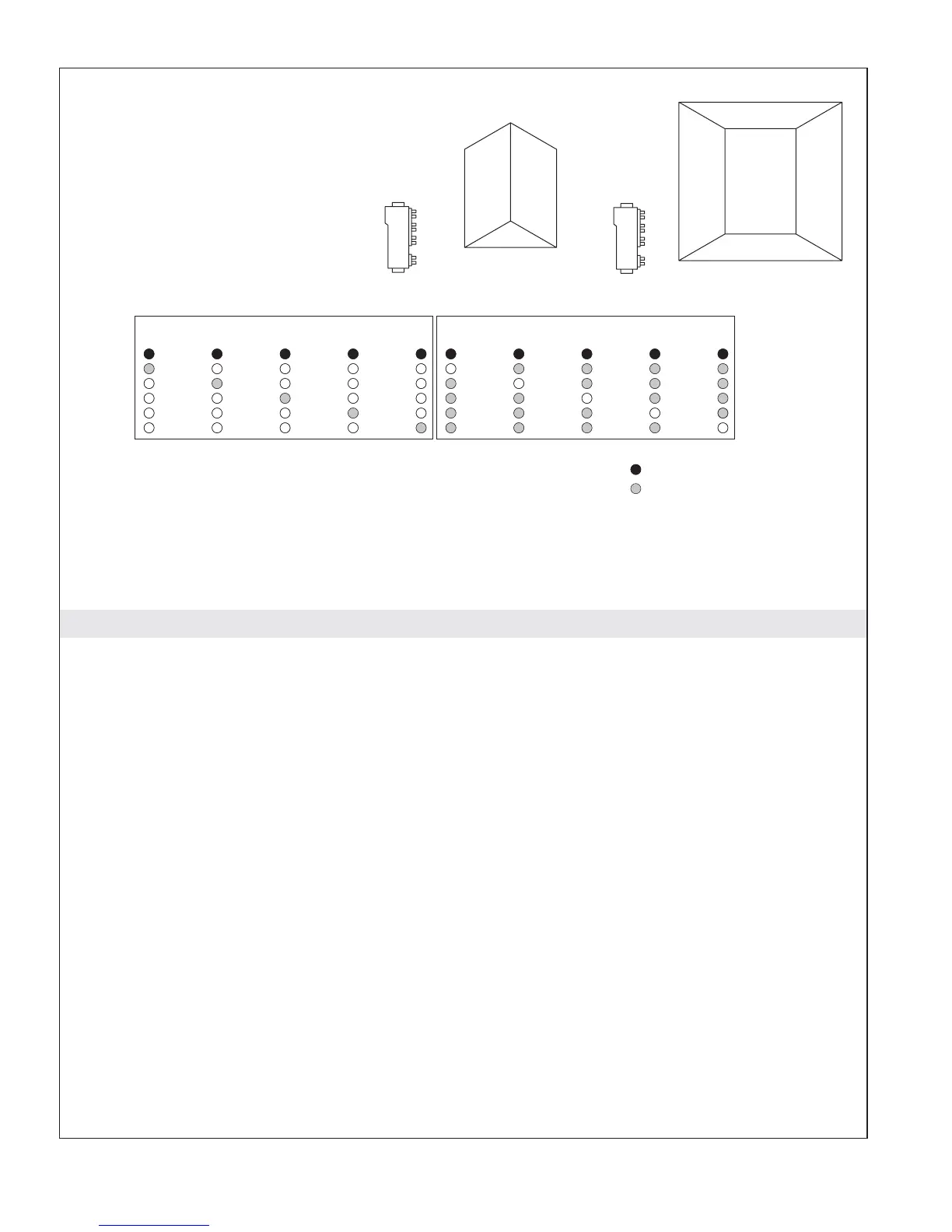

Water Outlet Configuration
Massage Cycling Patterns
1: Outlet 1 (Primary Showerhead)
2: Outlet 2
3: Outlet 3
4: Outlet 4
5: Outlet 5
6: Outlet 6
Single
Wave
= Constant on
= On while cycling
NOTE: Primary outlets and any outlets designated as
handshowers will not be included in the cycling pattern. For
installations that include both body sprays and watertiles, the
outlets designated as watertiles will not cycle.
1079815-5-A 38 Kohler Co.
