Kontron CP3003-SA - CP3003-SA with I7-3517 UE (ULV), 1.7 Ghz; CP3003-SA with I7-3555 LE (LV), 2.5 Ghz

CP3003-SA Thermal Considerations
ID 1052-6929, Rev. 3.0 Page 6 - 7
D R A F T — F O R I N T E R N A L U S E O N L Y

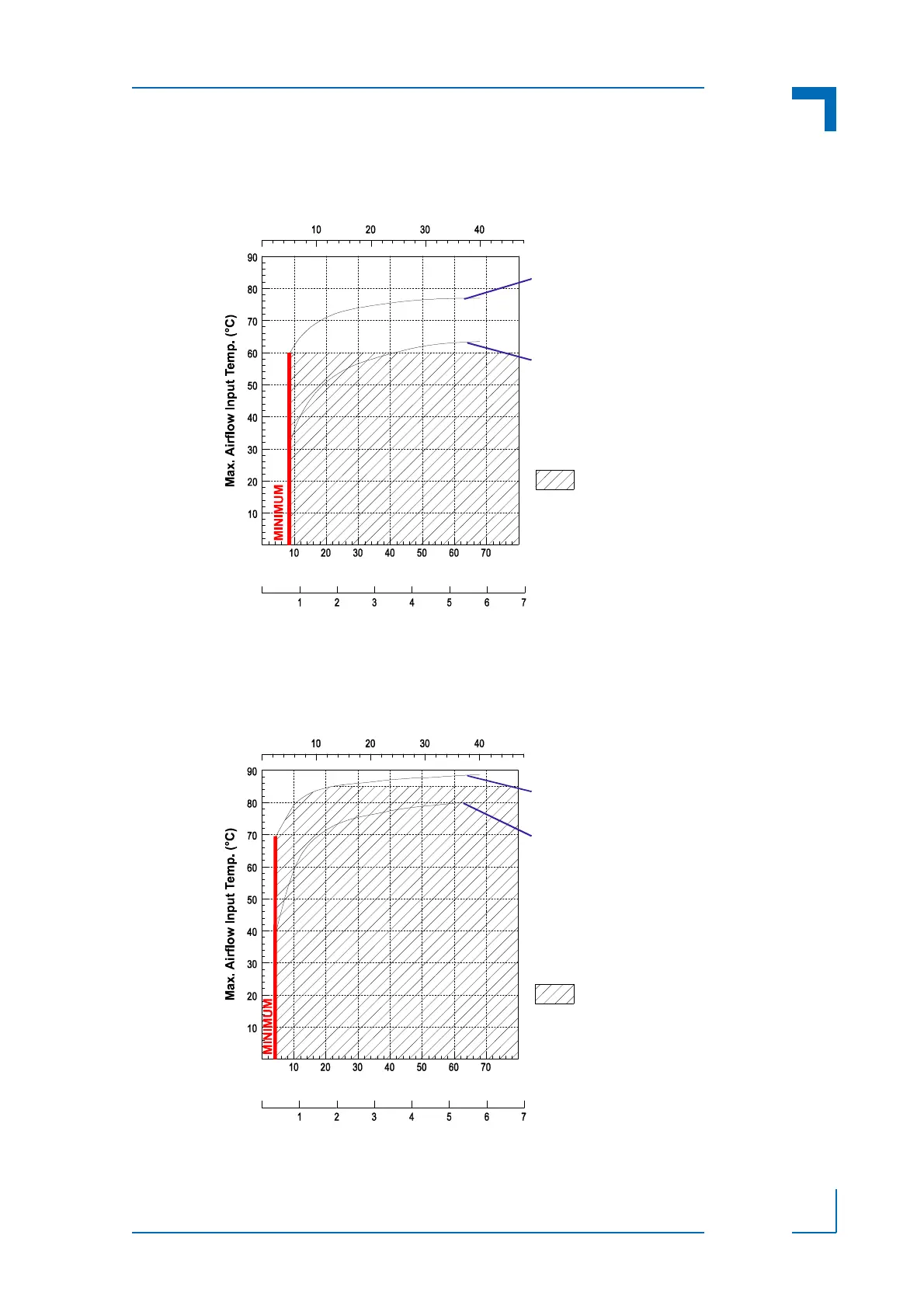

Figure 6-2: CP3003-SA with i7-3555LE (LV), 2.5 GHz
Figure 6-3: CP3003-SA with i7-3517UE (ULV), 1.7 GHz
Volumetric Flow Rate (CFM)
Volumetric Flow Rate (m /h)
3
Airflow (m/s)
recommended
operating range
maximum processor workload
and basic graphics operation
maximum processor and
graphics controller workload
Volumetric Flow Rate (CFM)
Volumetric Flow Rate (m /h)
3
Airflow (m/s)
recommended
operating range
maximum processor workload
and basic graphics operation
maximum processor and
graphics controller workload
