Kontron CP3003-SA - XMC Connector J1 Pinout; XMC Con. J1

CP3003-XMC CP3003-SA
Page B - 8 ID 1052-6929, Rev. 3.0
D R A F T — F O R I N T E R N A L U S E O N L Y
B.6.2 XMC Connector
The CP3003-XMC uses one x8 PCI Express 2.0 interface operating at up to 5.0 GT/s and com-
pliant with the ANSI/VITA 42.0 and ANSI/VITA 42.3 specifications. It provides one XMC con-
nector, J1, for connection to an XMC module. The CP3003-XMC supports XMC modules with
a maximum power consumption of 15 W.
Legend:
Note ...
Only XMC modules with one board-to-board connector (P15) can be used with
the CP3003-XMC extension module.
RFU Reserved for future use
VPWR 5V power supply for the XMC module

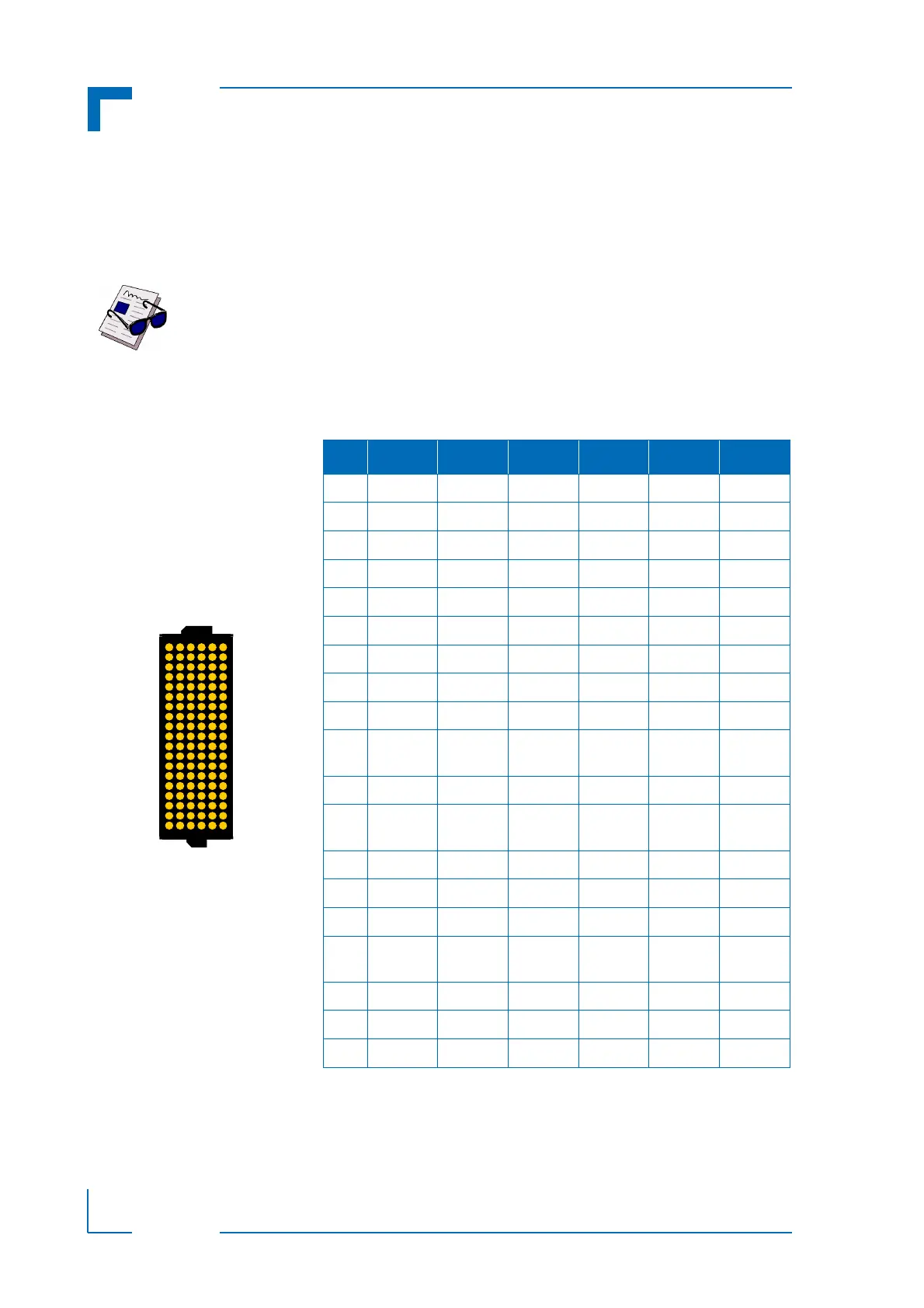

Figure B-6: XMC Con. J1
A1 F1
A19 F19
Table B-3: XMC Connector J1 Pinout
PIN ROW A ROW B ROW C ROW D ROW E ROW F
1 PET0p0 PET0n0 3.3V PET0p1 PET0n1 VPWR
2 GND GND TRST# GND GND MRSTI#
3 PET0p2 PET0n2 3.3V PET0p3 PET0n3 VPWR
4 GND GND TCK GND GND MRSTO#
5 PET0p4 PET0n4 3.3V PET0p5 PET0n5 VPWR
6 GND GND TMS GND GND +12V
7 PET0p6 PET0n6 3.3V PET0p7 PET0n7 VPWR
8 GND GND TDI GND GND -12V
9 RFU (NC) RFU (NC) RFU (NC) RFU (NC) RFU (NC) VPWR
10 GND GND TDO GND GND GA0
(high)
11 PER0p0 PER0n0 MBIST# PER0p1 PER0n1 VPWR
12 GND GND GA1 (low) GND GND MPRE-
SENT#
13 PER0p2 PER0n2 3.3V AUX PER0p3 PER0n3 VPWR
14 GND GND GA2 (low) GND GND MSDA
15 PER0p4 PER0n4 RFU (NC) PER0p5 PER0n5 VPWR
16 GND GND MVMRO
(NC)
GND GND MSCL
17 PER0p6 PER0n6 RFU (NC) PER0p7 PER0n7 RFU (NC)
18 GND GND RFU (NC) GND GND RFU (NC)
19 CLK+0 CLK-0 RFU (NC) WAKE# ROOT0# RFU (NC)
