A.6.5 CFast Card Connector
To enable flexible flash expansion, a CFast card connector, J3, is available on the 8 HP
CP3003-SA with CP3003-HDD. However, the 12 HP CP3003-SA does not provide CFast card
support.

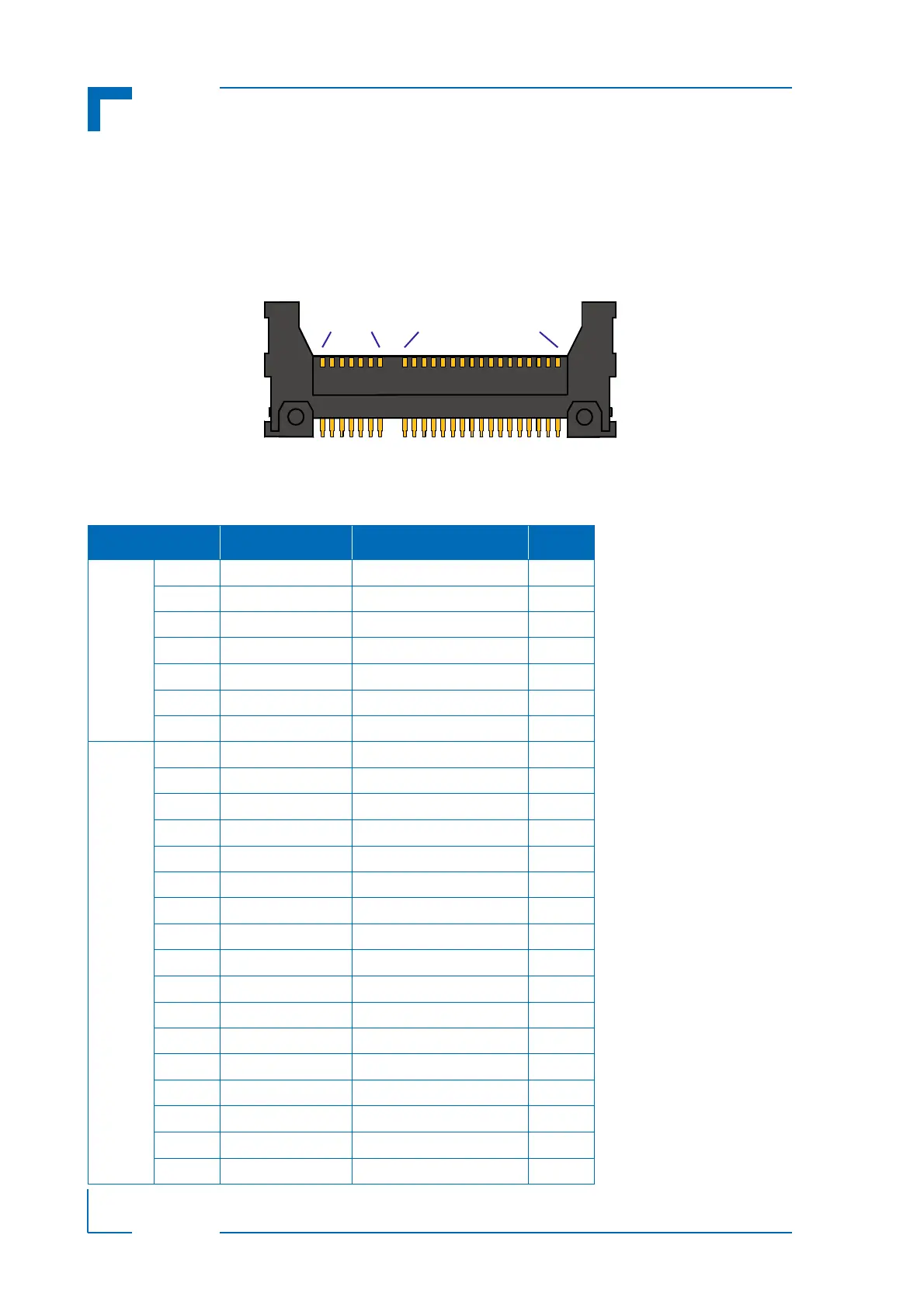

Figure A-10: CFast Connector J3
The following table provides the pinout for the CFast connector J3.
Table A-6: CFast Connector J3 Pinout
PIN SIGNAL FUNCTION I/O
Signal Segment
S1 GND Ground signal --
S2 SATA_TX+ Differential Transmit+ O
S3 SATA_TX- Differential Transmit- O
S4 GND Ground signal --
S5 SATA_RX- Differential Receive- I
S6 SATA_RX+ Differential Receive+ I
S7 GND Ground signal --
Power Segment
PC1 RSV Reserved --
PC2 GND Ground signal --
PC3 NC Not connected --
PC4 NC Not connected --
PC5 NC Not connected --
PC6 NC Not connected --
PC7 GND Ground signal --
PC8 RSV Reserved --
PC9 RSV Reserved --
PC10 NC Not connected --
PC11 NC Not connected --
PC12 NC Not connected --
PC13 3.3V 3.3V power --
PC14 3.3V 3.3V power --
PC15 GND Ground signal --
PC16 GND Ground signal --
PC17 RSV Reserved --
