CP3003-SA CP3003-XMC
ID 1052-6929, Rev. 3.0 Page B - 7
D R A F T — F O R I N T E R N A L U S E O N L Y
B.6 Module Interfaces (Onboard)
B.6.1 CFast Card Connector
To enable flexible flash expansion, a CFast card connector, J2, is available on the CP3003-XMC.

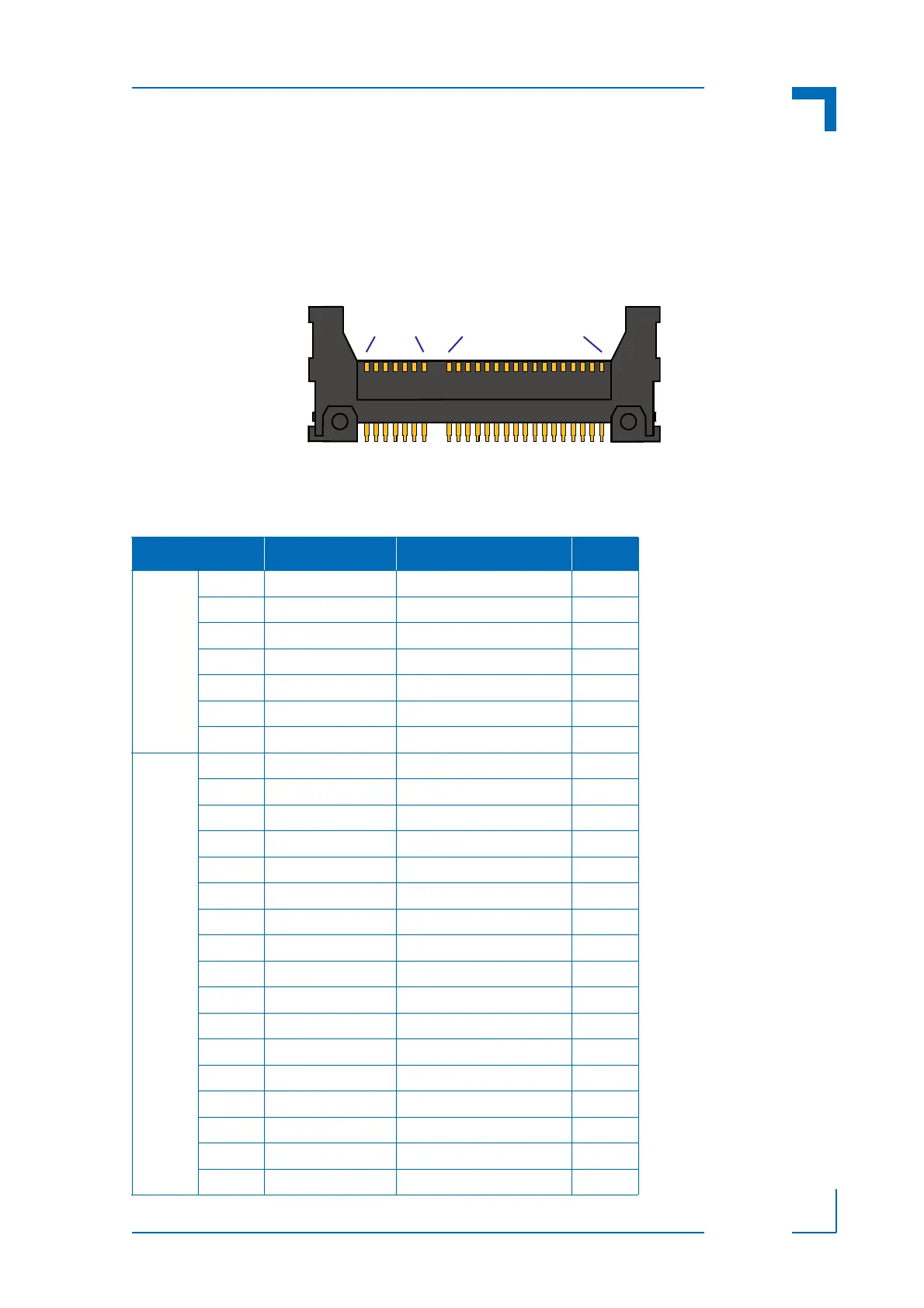

Figure B-5: CFast Connector J6
The following table provides the pinout for the CFast connector J2.
Table B-2: CFast Connector J2 Pinout
PIN SIGNAL FUNCTION I/O
Signal Segment
S1 GND Ground signal --
S2 SATA_TX+ Differential Transmit+ O
S3 SATA_TX- Differential Transmit- O
S4 GND Ground signal --
S5 SATA_RX- Differential Receive- I
S6 SATA_RX+ Differential Receive+ I
S7 GND Ground signal --
Power Segment
PC1 RSV Reserved --
PC2 GND Ground signal --
PC3 NC Not connected --
PC4 NC Not connected --
PC5 NC Not connected --
PC6 NC Not connected --
PC7 GND Ground signal --
PC8 RSV Reserved --
PC9 RSV Reserved --
PC10 NC Not connected --
PC11 NC Not connected --
PC12 NC Not connected --
PC13 3.3V 3.3V power --
PC14 3.3V 3.3V power --
PC15 GND Ground signal --
PC16 GND Ground signal --
PC17 RSV Reserved --
