A.6 Module Interfaces (Front Panel and Onboard)
A.6.1 DisplayPort Interfaces
The CP3003-HDD provides two DisplayPort interfaces (digital audio/video display interfaces)
implemented as two 20-pin DisplayPort connectors on the front panel for connection to moni-
tors with DisplayPort interfaces. Additionally, the Intel® QM77 Express Chipset provides a Dis-
playPort interoperability support for DVI/HDMI displays through a cable adapter. Monitors with
an analog VGA interface can also be connected to the DisplayPort connectors via an appropri-
ate active adapter.
The following figure illustrates the DisplayPort connectors J1 and J2.

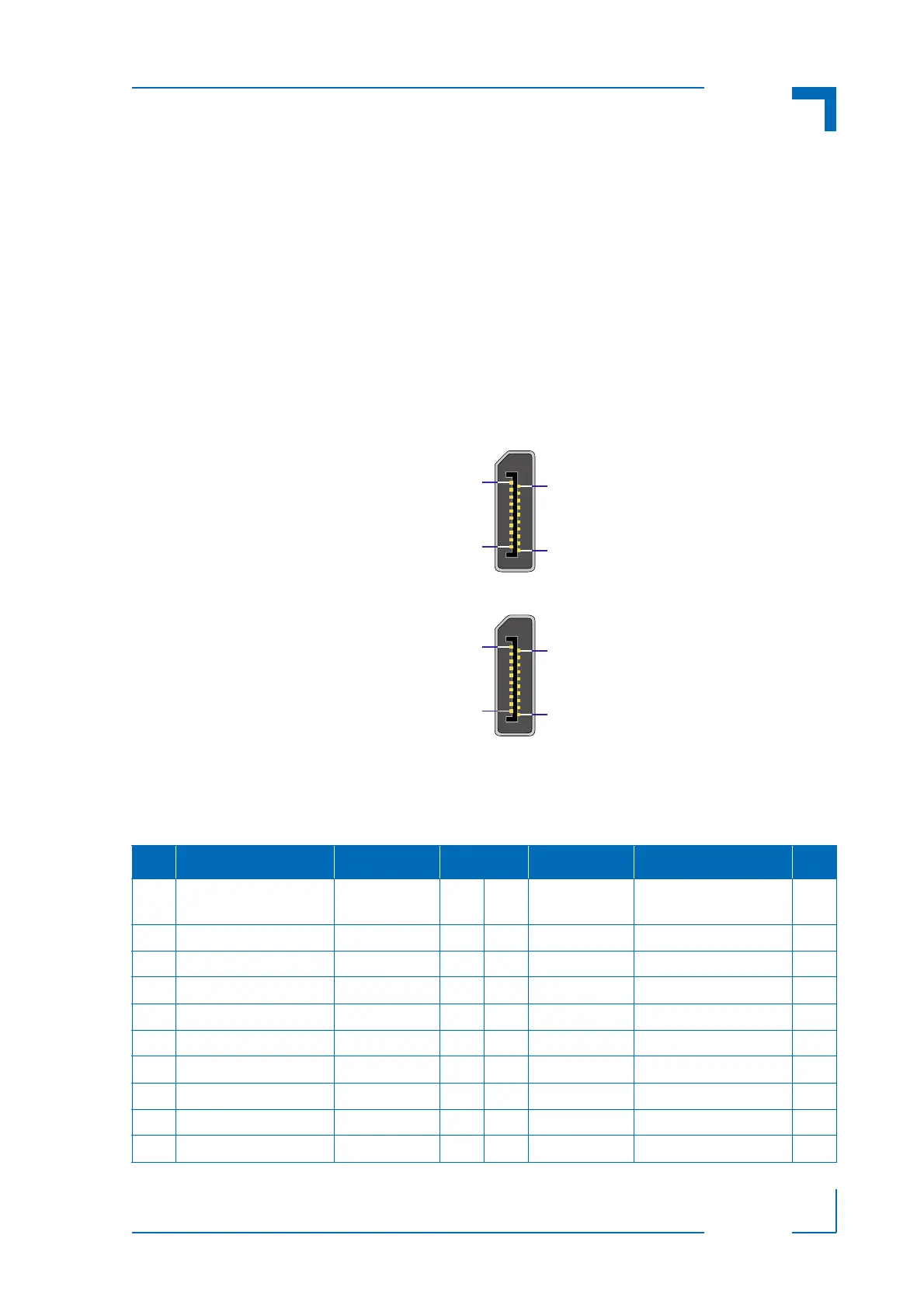

Figure A-6: DisplayPort Connectors J1 and J2
The following table indicates the pinout of the DisplayPort connectors J1 and J2.
Table A-2: DisplayPort Connectors J1 and J2 Pinout
I/O FUNCTION SIGNAL PIN SIGNAL FUNCTION I/O
-- Power 3.3 V,
0.5 A fuse protection
PWR 20 19 RETURN Return for power --
I Hot Plug Detect HP_DET 18 17 AUX_CH- Auxiliary Channel- I/O
-- Signal ground GND 16 15 AUX_CH+ Auxiliary Channel+ I/O
-- Signal ground GND 14 13 HDMI_SEL DP/HDMI/DVI Select I
-- Signal ground GND 12 11 ML(3)- Data Lane3- O
O Data Lane3+ ML(3)+ 10 9 GND Signal ground --
O Data Lane2- ML(2)- 8 7 ML(2)+ Data Lane2+ O
-- Signal ground GND 6 5 ML(1)- Data Lane1- O
O Data Lane1+ ML(1)+ 4 3 ML(0)- Data Lane0- O
-- Signal ground GND 2 1 ML(0)+ Data Lane0+ O
2
20
19
1
2
20
19
1
J1
J2
